2.1.2. Rear View

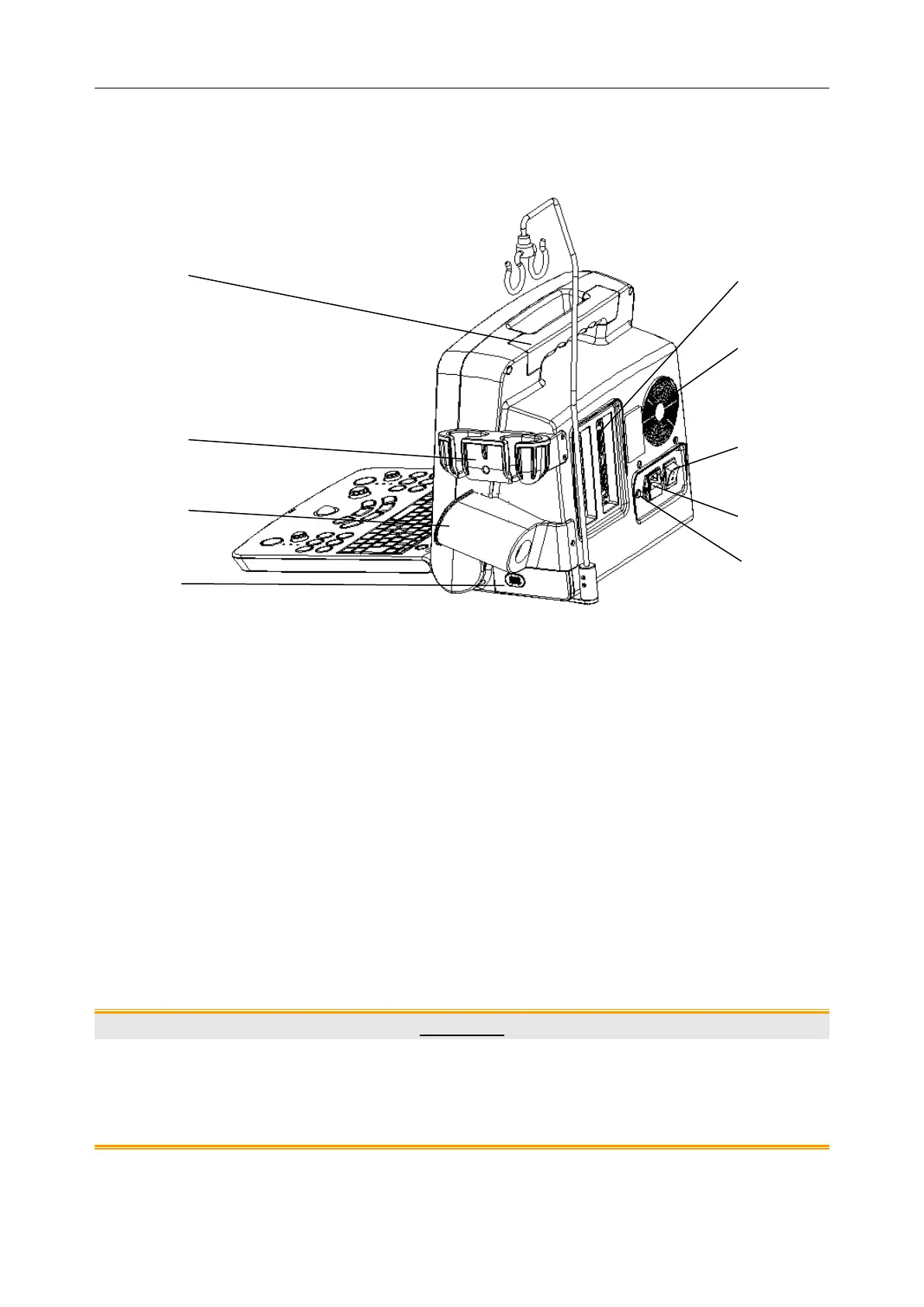

Figure 2-2 Rear View
1
Probe sockets
2
Air Fan
3
AC power switch
4
Appliance inlet
5
Equipotential terminal
6
Handle
7
Probe holder
8
Coupling gel trough
9
Rechargeable lithium battery
CAUTION
1. To have good aeration performance and be able to operate normally, please don’t
cover or plug the air fan or heat dissipation orifice partly or wholly by using any object.
2. For easy control, please don’t cover or block the AC power switch using any object.
7
8
6
1
2
3
4
5
6
7
8
9
