MediSono P3V - Generic Measurements in B Mode

P3V Veterinary Digital Ultrasonic Diagnostic Imaging System User Manual
- 63 -
Examination
Application measurement & calculation items
Result
Abdomen
Gallbladder:CBD, Gallbladder,
Kidney: Left Kidney, Right Kidney,
Bladder
Abdominal worksheet
Obstetric
CRL, GSD, HD, BD, HD&BD, GSD-H, GSD-V, TD,
and BPD
NOTE: Different measurement labels depend on
different examination species.
Obstetric worksheet
Cardiology
LV, RV, Mitral, Aorta, etc.
Cardiac worksheet
Vascular
PW mode:
CCA, ICA, ECA, Vert A
Vascular worksheet
Small Parts
None
General report
Muscle
None
General report
Tendon
None
General report
Table 6-1 Examination Items and Results
6.6.1. Generic Measurements in B Mode
In B mode, highlight others and select OB MEAS CAN, the default measurement of B mode is
distance measurement. B mode measurement menus are shown as follows:

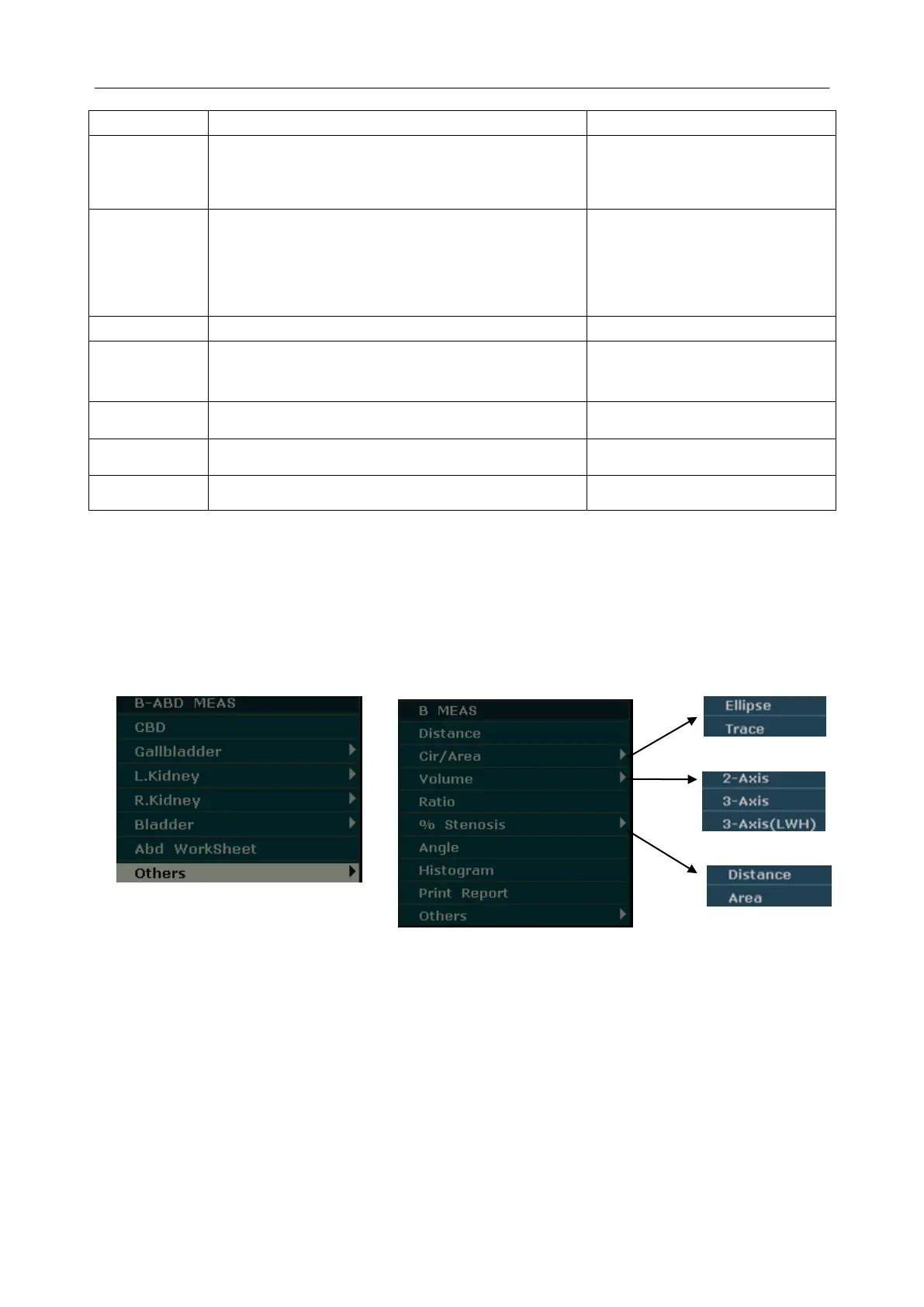

Figure 6-3 B Mode Generic Measurement and Calculation Menu
Distance
To measure distance:
1. Press Measure to activate measurement function.
2. Roll the trackball to highlight Distance, press Set to activate a
measurement cursor “+” on the screen.
3. Roll the trackball and press Set to anchor the start point.
4. Roll the trackball and press Set to anchor the end point.
