4.6 Data logger – LOG
The data memory can store totally 190 measurements
and this capacity is shared by the two log modes.
SET / LOG

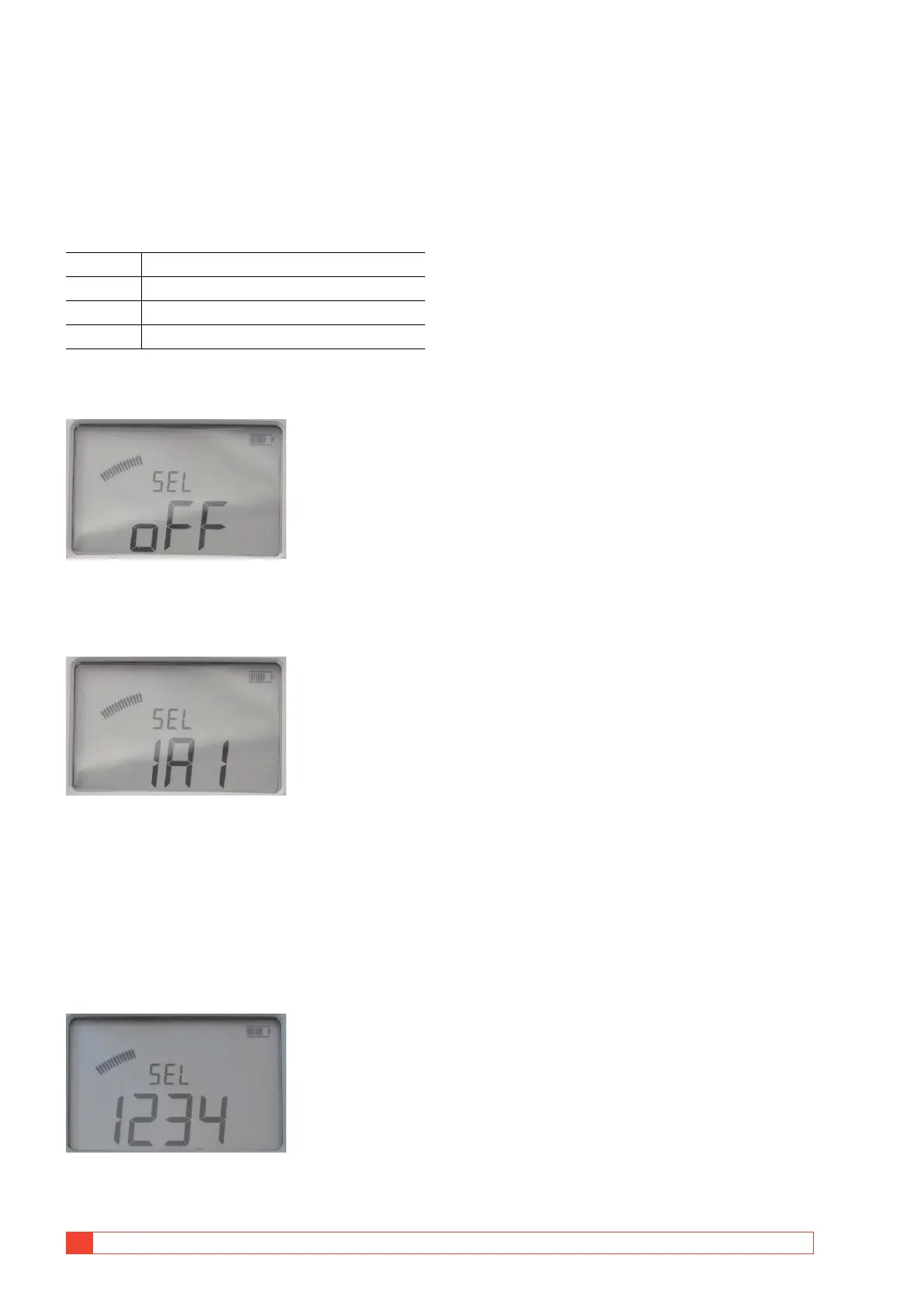

Display abbreviations / description
SEL Select
oFF OFF
1A1 Label for Breaker, Phase, Interrupter
1234 Running numbers
LOG modes
OFF
When the log is OFF only the latest value is stored and only
until the performance of a following measurement, which
overwrites the previous one.
Circuit breaker testing mode,1A1
This mode is primarily designed for measurement on circuit
breakers. The three characters (1A1) are supposed to indi-
cate: Breaker, Phase, Interrupter.
Measurement is automatically stored, provided that
there are less than three measurements stored on the
selected object label. Each label can store three meas-
urements. See also section 5.6 Measurement using
the log function.
Running numbers mode, 1234
The measurements are numbered in numerical order (1 to
1999)
Measurement is automatically stored, provided that
the memory is not full.
Set-up
1]
Select SET / LOG. Present setting is displayed.
2] Press and hold OK key until characters start
to blink under the "SEL" letters.
3] Use the ▲ ▼ keys to select mode.
4] Press OK key.
