6 APPLICATION EXAMPLES
6
Application examples
6.1 Safety
Important regarding all testing
Read and comply with the
safety instructions.
Always comply with local
safety regulations.
Important
Note If you are measuring resistance in a circuit
breaker or disconnecting switch (isolator),
make sure that it is closed and grounded at
both sides before testing.
6.2 Measurement using
Kelvin probes
An example how to perform testing using the two
Kelvin probes. This example describes the perfor-
mance if you only want to know if the test object pass
a preset value and you do not need to store the test
results.
1] Select LOG function "OFF", and set P/F value
(see section 4.6 and 4.7).
2] Attach the test cables with Kelvin probes (2 x
1.3 m) one with a trigger, to MOM2.
3] Turn the function selector to desired posi-
tion.
4] Hook the instrument to your belt or use the
strap.
5] Press and hold the two Kelvin probes to the
test object and pull the trigger.
If the value is outside the limits there is a
sound telling the result was fail.
The measurement value remains until an-
other measurement is performed or until the
instrument is switched off.

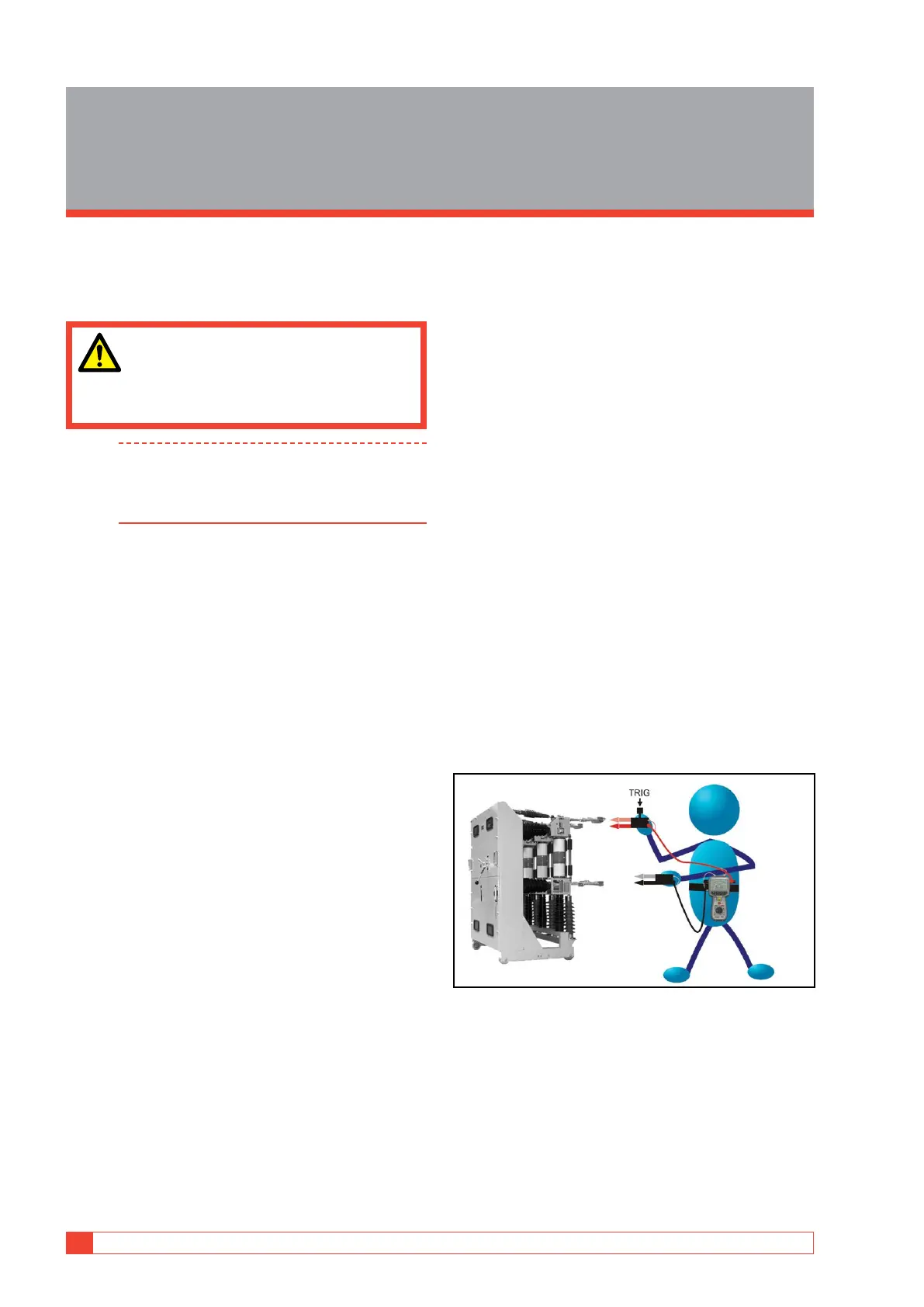

Measurement on a test object
