5 OPERATING INSTRUCTIONS
5.2 Measurement with
max. charge, I=IMAX
1] Read the section 5.1 General instructions.
2] If applicable, connect the ground cable (pro-
tective earth).
3] Make the desired settings in the SET options.
In this example LOG and P / F are disabled (set
to OFF).
4] Attach the test cables.
5] Turn the function selector to desired I = I max
position.

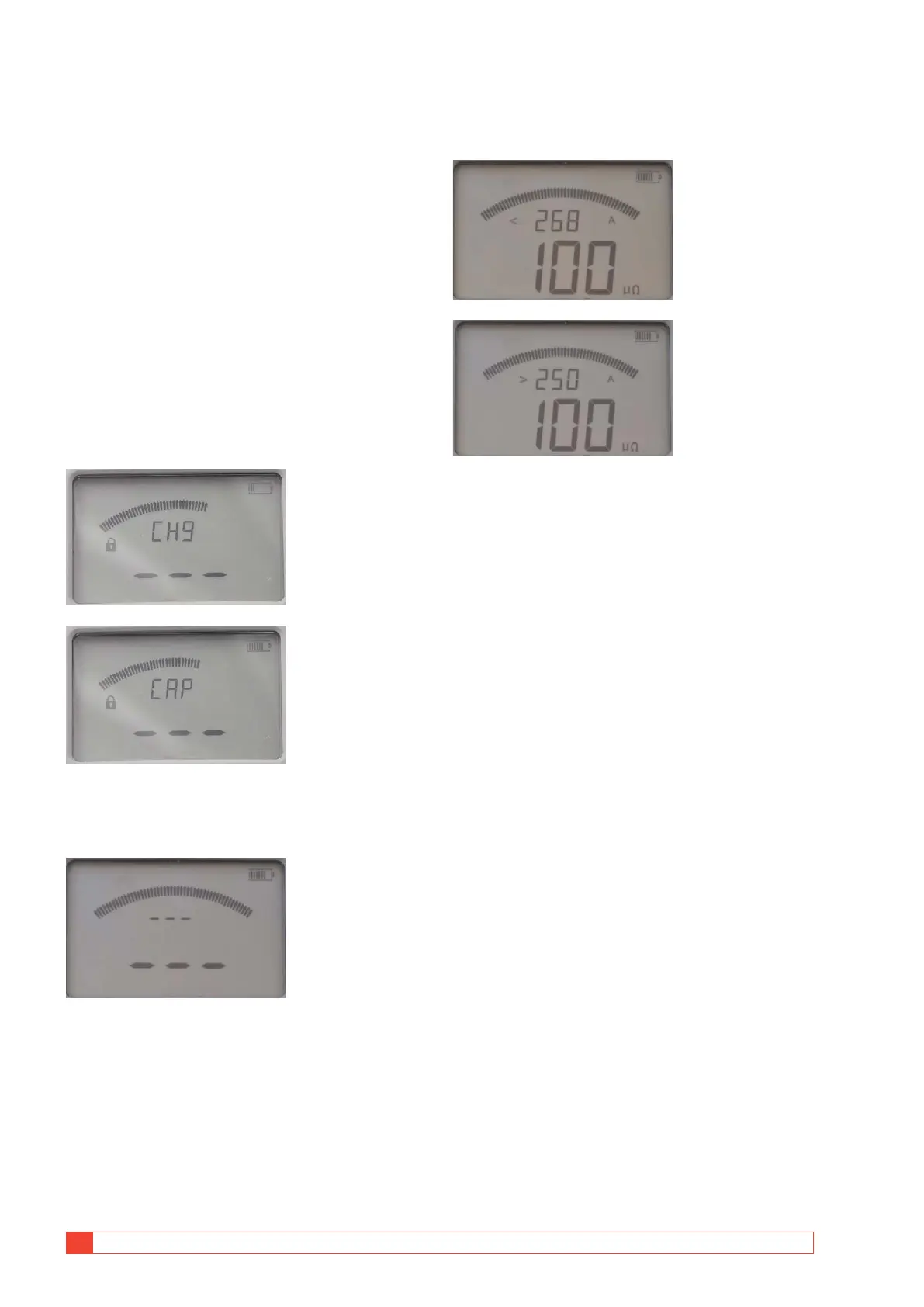

The instrument indicates that it is charging
the capacitor by a repeated sound and on
the display shows alternating "CAP" and
"CHG" and the lock symbol.
Charging
6] The MOM2 is ready for a measurement when
the lock symbol disappears.
Ready for test
7] Press the TEST button on MOM2 or the pull
the trigger on the probe.
A continuous audio signal tells that the
measurement is in progress.
Two short signals tells that the measurement
is complete.
8] The result is shown on the display, see figures
below.
Over the resistance value "100 μΩ" toggles
the maximal and minimal current values dur-
ing the test. "268 A" and "250 A"
Pictures shows the two display views..
