DET2/3
6
Overview

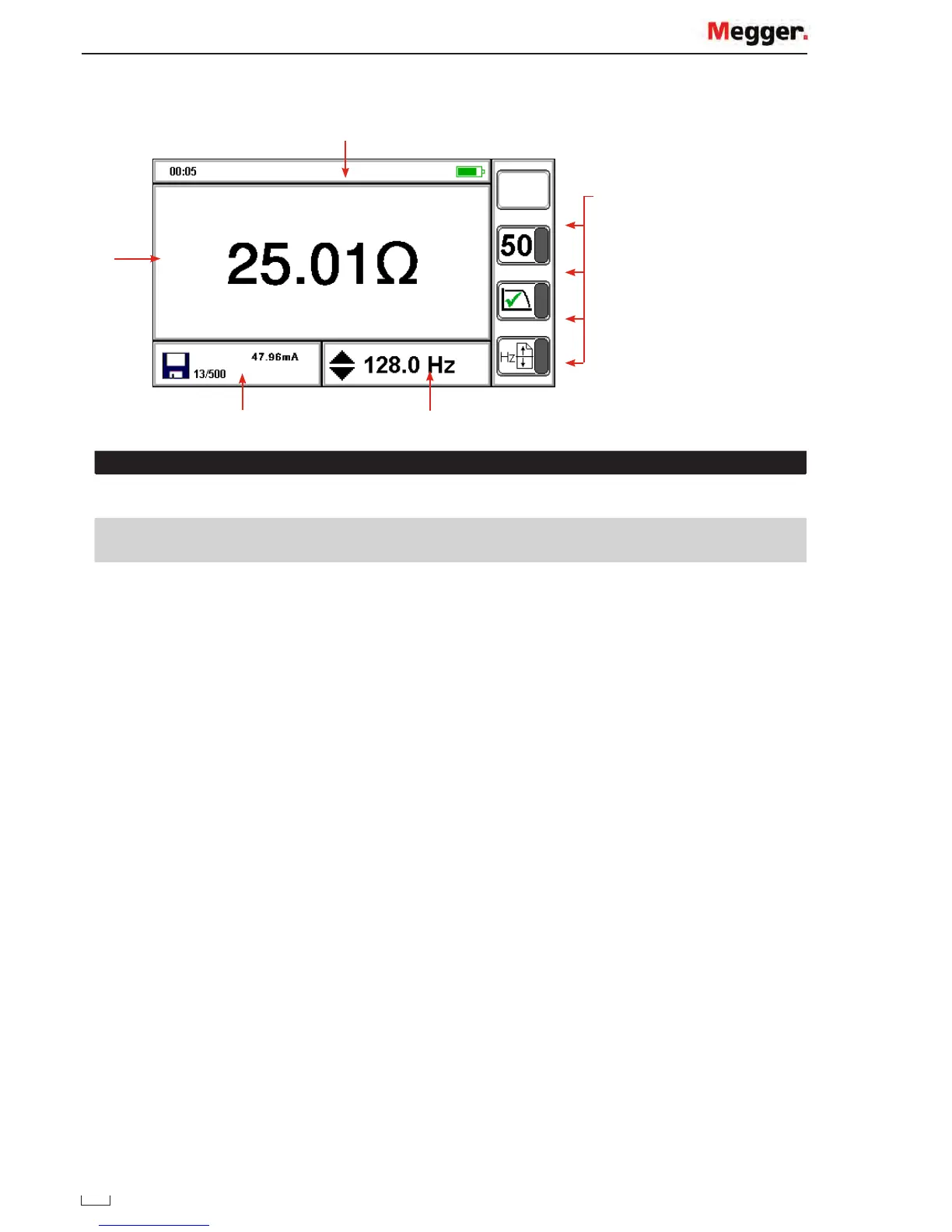

Display
4
2
3
4
5
1
No.
Description
No.
Description
1
Status bar
4
T
est mode
: Secondary measurement r
esult
Data management mode
: Asset number
2
Main display / Primary measurement r
esult
5
T
est mode
: T
est parameters
Data management mode
: Record name
3
Soft key functions
ww
w
.
Gl
o
b
a
lT
e
s
tS
u
p
p
ly
.
co
m
Fi
nd
Q
ua
li
ty
P
ro
du
ct
s
On
li
ne
a
t:
sa
le
s@
Gl
ob
al
T
e
st
Su
pp
ly.c
om
9
11
Table of Contents
Default Chapter
2
Table of Contents
2
Safety
5
Safety Warnings
5
Live Earth Safety Precautions
6
Voltage Measurement Categories
6
Cat IV
6
Cat III
6
Cat II
6
Test Leads and Clamps
6
Safety and Hazard Icons
7
Warning Icons
7
Warnings, Cautions and Notes
7
Warnings
7
Cautions
7
Notes
7
Introduction
8
Applications
8
Agricultural Location
8
Features
8
Accessories
8
Overview
9
User Interface
9
Display
10
Controls
11
Navigation Control Panel
12
Terminals
12
Soft Keys
13
Operation
14
Power on / off
14
Auto off
14
Power Options
14
Earth Test Options
14
Output Voltage
14
Test Frequency
14
Noise Filter
14
Test Leads and Terminal Connections
15
Test Modes
15
Manual Mode
15
Continuous Graphical Mode
15
Set-Up
16
Modify Parameters
16
General Set-Up
16
Graph Set-Up
17
Language Set-Up
17
Earth / Ground Resistance
18
Test Procedure
18
Earth / Ground Resistivity
21
Test Procedure
21
Continuity Test
24
Test Procedure
24
Null Test Leads
25
Leakage Current Test Test Procedure
26
See Data Management
26
Test Methods and Set-Up
27
Fall of Potential (Fop) Test
27
Four Terminal Test Lead Set-Up
27
Four Terminal ART Test Lead Set-Up
28
Three Terminal Test Lead Set-Up
28
Three Terminal ART Test Lead Set-Up
29
Slope Method (Fop)
29
Description
29
Slope Four Terminal Test Lead Set-Up
32
Slope Three Terminal Test Lead Set-Up
32
Rule (Fop)
33
61.8% Four Terminal Test Lead Set-Up
33
Three Terminal Test Lead Set-Up
33
Two Terminal Earth Resistance Test
34
Two Clamp (Stakeless) Test
34
Calibration Check Tools
35
Instrument Calibration Check
35
Checking Instrument Accuracy
35
Clamp Calibration Check
36
Data Management
37
Save Test Result
37
To Edit a Record File Name as
37
USB Connection
38
Single Test Result: Download or Delete
39
Multiple Test Results: Download or Delete
39
Maintenance
40
General Maintenance
40
Cleaning
40
Battery
40
Battery Status
40
Battery Replacement
41
Battery Charge
42
12 V Supply
42
Specifications
43
Measurement Specifications
43
Instrument Specifications
44
Instrument Calibration Check Tool
44
Electrical Specification
44
Mechanical Specification
44
Clamp Calibration Check Tool
45
Electrical Specification
45
Mechanical Specification
45
Accessories
46
Repair and Warranty
47
Calibration and Repair
48
Return Procedure
48
Approved Service Centres
49
End of Life WEEE Directive
49
Battery Disposal
49
Declaration of Conformity
50
5
Based on 1 rating
