5.5.1.1

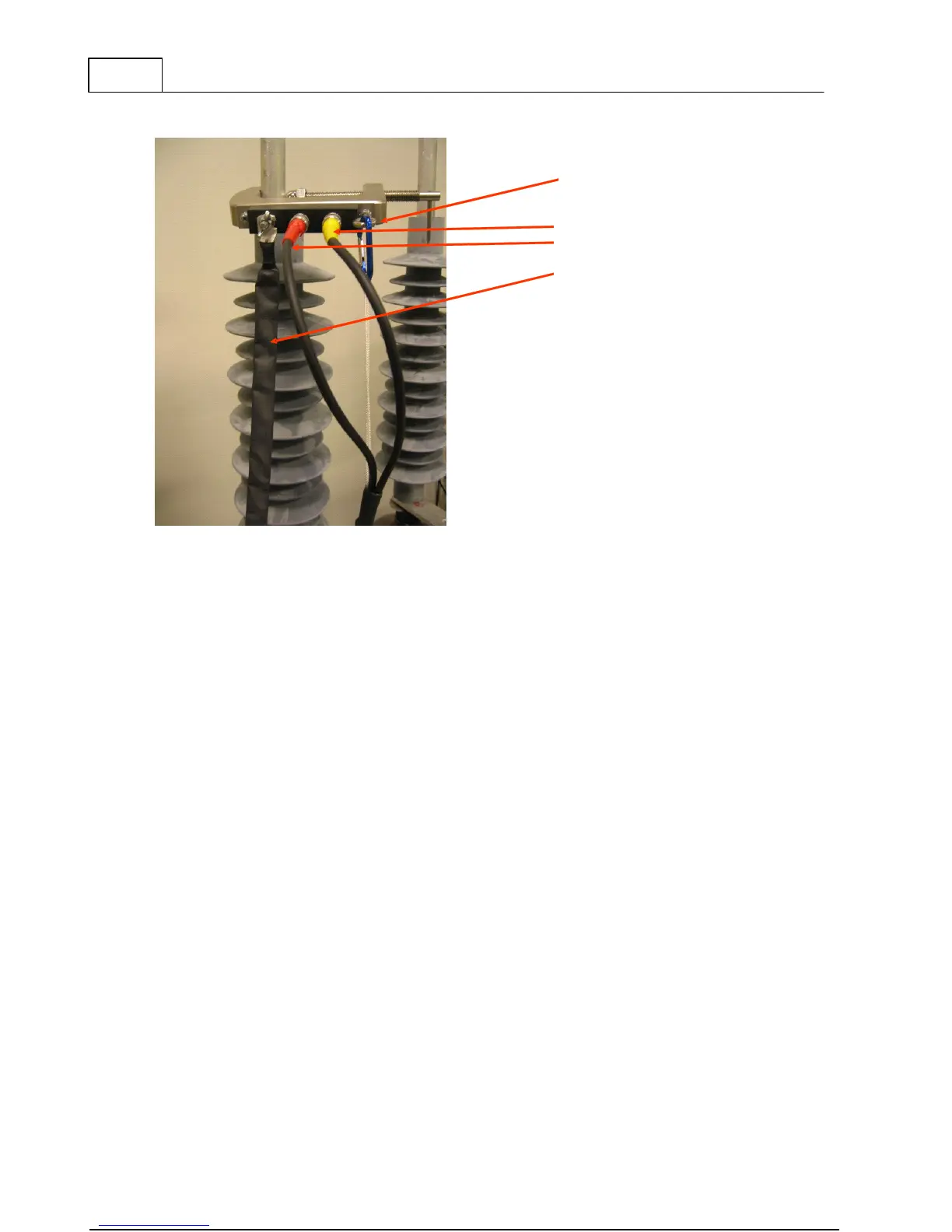

Generator cable connection (yellow/red)
Cable strain relief
Coaxial cable from FRAX
- Generator (Yellow)
- Reference (Red)
Ground braid connected to
ground. Keep the braid
straight along the bushing
and ground the braid at the
base of the bushing. Ensure
good connection.
The first 50 cm of the braid is
insulated to avoid any
electric connection to the
bushing.
