1. For making reports on the FRAX150 it is recommended either using the Report function and choose pdf
format for report or copy the le to a USB memory and transfer it to the PC desktop for analysis and
report

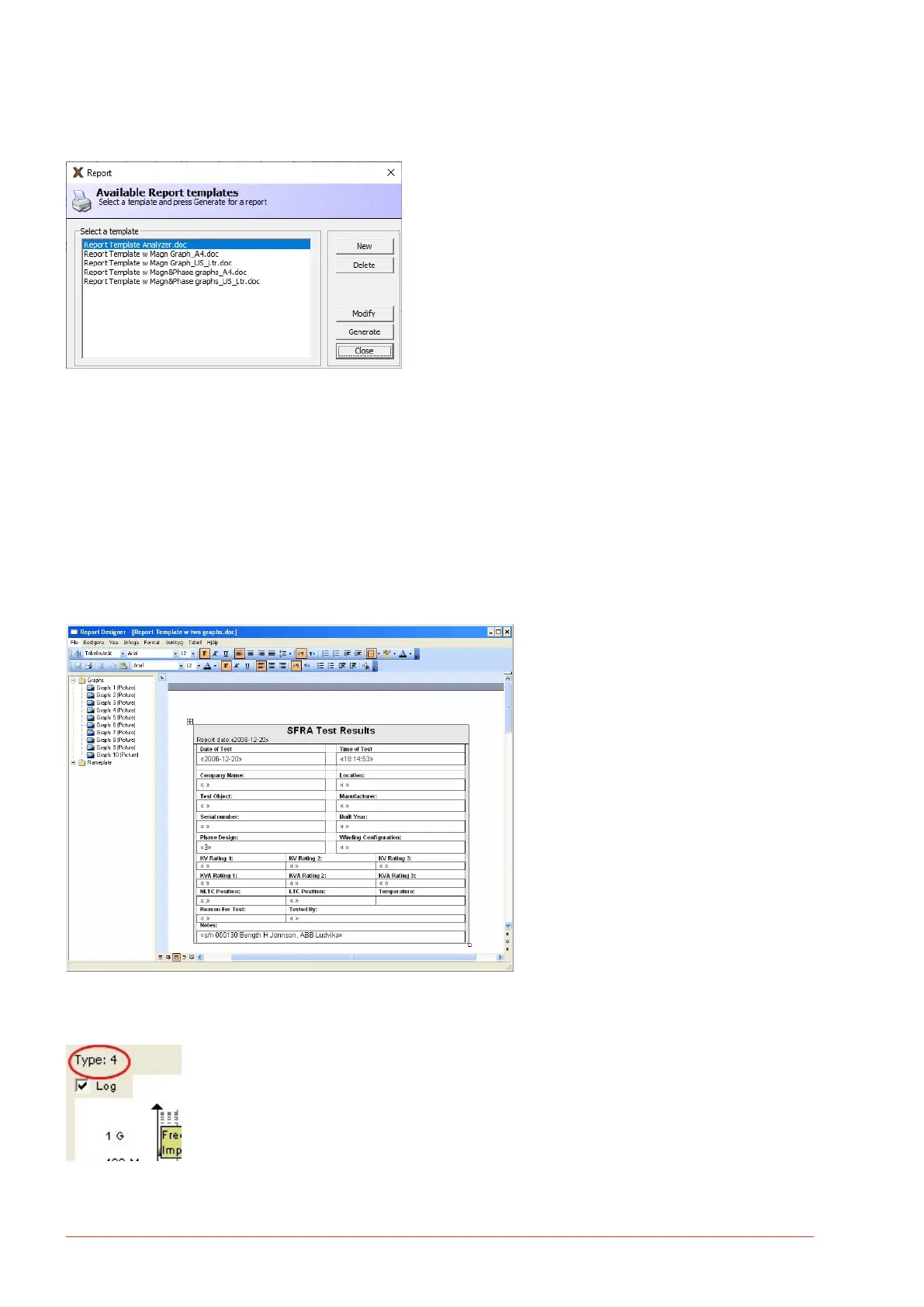

2. In the “Report” dialog it is possible to select a report template and generate (press “Generate”) a report
using the current data and the template. A Word document is generated that can be edited, printed, or
converted to another document format using third party software.
It is also possible to create a new report template, delete and/or modify an existing template.
Creating a new or modifying existing template is straightforward and is easily done when a measurement
le is open in the FRAX software. The example below shows how to “Modify” an existing template.
1. Edit the document on right hand side using ordinary Microsoft Word functions and add logo in header.
2. Simply use drag-and-drop to place data elds and graphs from left-hand side into the report.
3. Save the new template and return to the Report dialog.
4. The graph number in the report designer corresponds with the type number of the graph. The easiest
way to get the type number is to look at the top left corner of the graph view.
5. To get the curves on the report they need to be in the FRAX software. Make sure both models and views
are loaded.
FRAX Software
32 FRAX-series www.megger.com
