Export... (Alt+E)

Activate the function by clicking the Export button or selecting Export in the menu.

A “Save As” dialog will be displayed to specify where to store the le. The drop-down box allows for choosing

the type of export. The following export formats are available:

1. IEC 60076-18

2. CIGRE TB342

3. Doble

4. Column type excel compatible le

5. Column type text le

The le extension will be added automatically if not entered, i.e. .txt for a column type export and .xfra for a

CIGRE TB342 le and xml for IEC 60076-18 le.

IEC 60076-18 (*.xml)

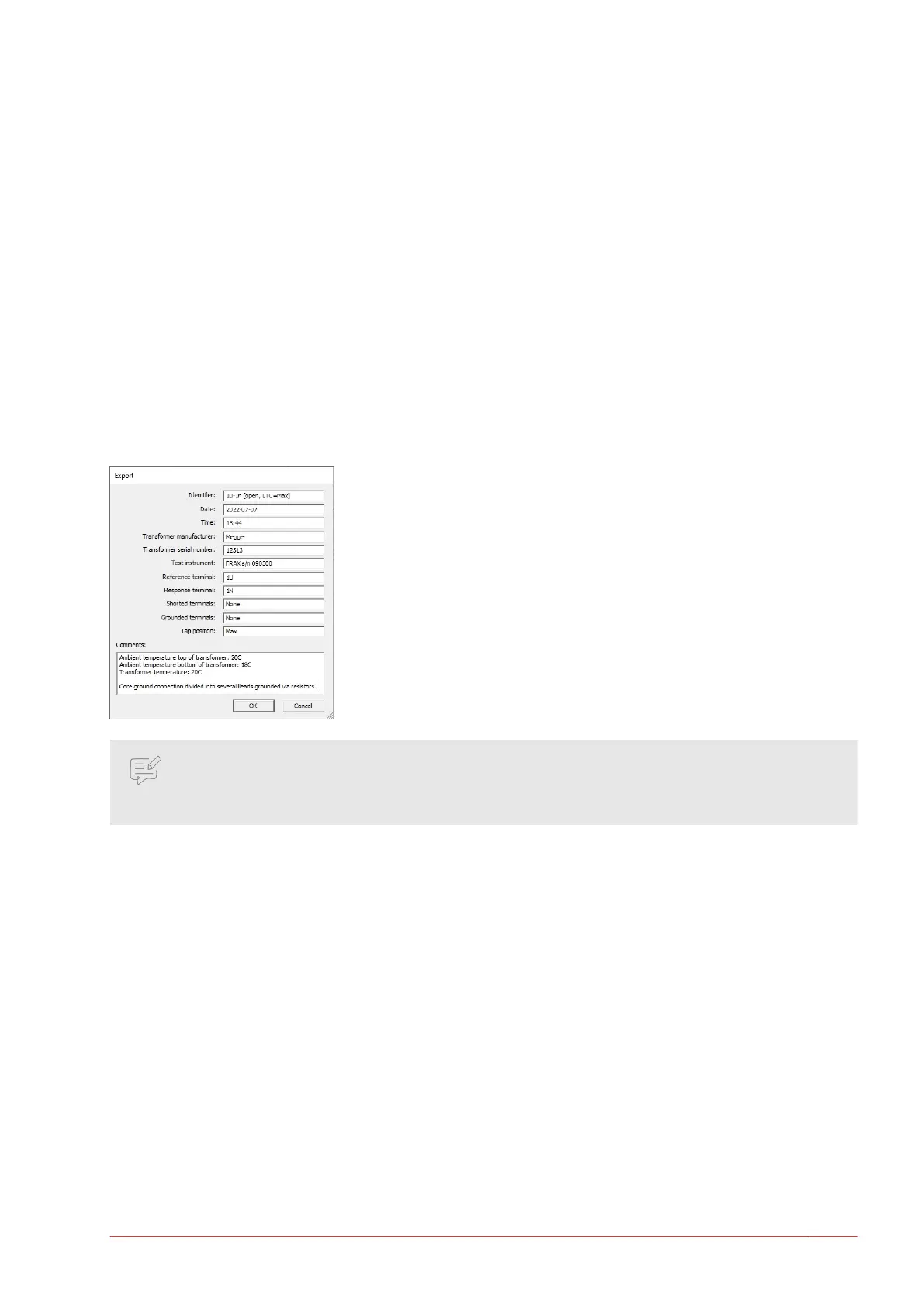

IEC 60076-18 recommends saving le in xml (extensible markup language) le. When exporting to this

format there is an opportunity to inspect and make changes to information which will be written to the le.

NOTE

Pay attention to the terminal settings, especially if using custom sweep names that don’t use the

default sweep names

CIGRE TB342 (*.xfra)

Export FRA or xfra is a storage le format recommended in CIGRE Technical Brochure 342.

When exporting to xfra format there is an opportunity to inspect and make changes to information which

will be written to the le.

Column type export

Exports active tests to either a *.csv or *.txt le.

1. Make sure that graphs to be exported are visible in the Graph, as only active graphs are exported.

Example: If only magnitude graph is displayed, then only magnitude will be exported, if Magnitude and

Phase are visible, both Magnitude and Phase will be exported.

2. Column and decimal separators can be changed before exporting the data. Select suitable combination

and press OK.
