Doble export
The Doble export exports the data of the currently selected test to a Doble.sfra le.
Make sure to select correct test to be exported as only selected test will be exported.
Import... (Alt+I)
It is possible to load les in various le formats. Among others, XML (e.g., Test1.xml) and CSV (e.g., Test2.csv)
formatted les from several vendors are supported. The software tries to automatically detect the le
format when “All supported les” is selected in the File type list. It is also possible to manually select the le
format about to import in this list.
When importing les from Doble and Omicron the available information will also be displayed in the
Nameplate. Omicron import will also use the same curve color and thickness as in the Omicron le.
NOTE
Supported formats for Doble are sfra and sfrx.
Supported format for Omicron are fra and tfra.

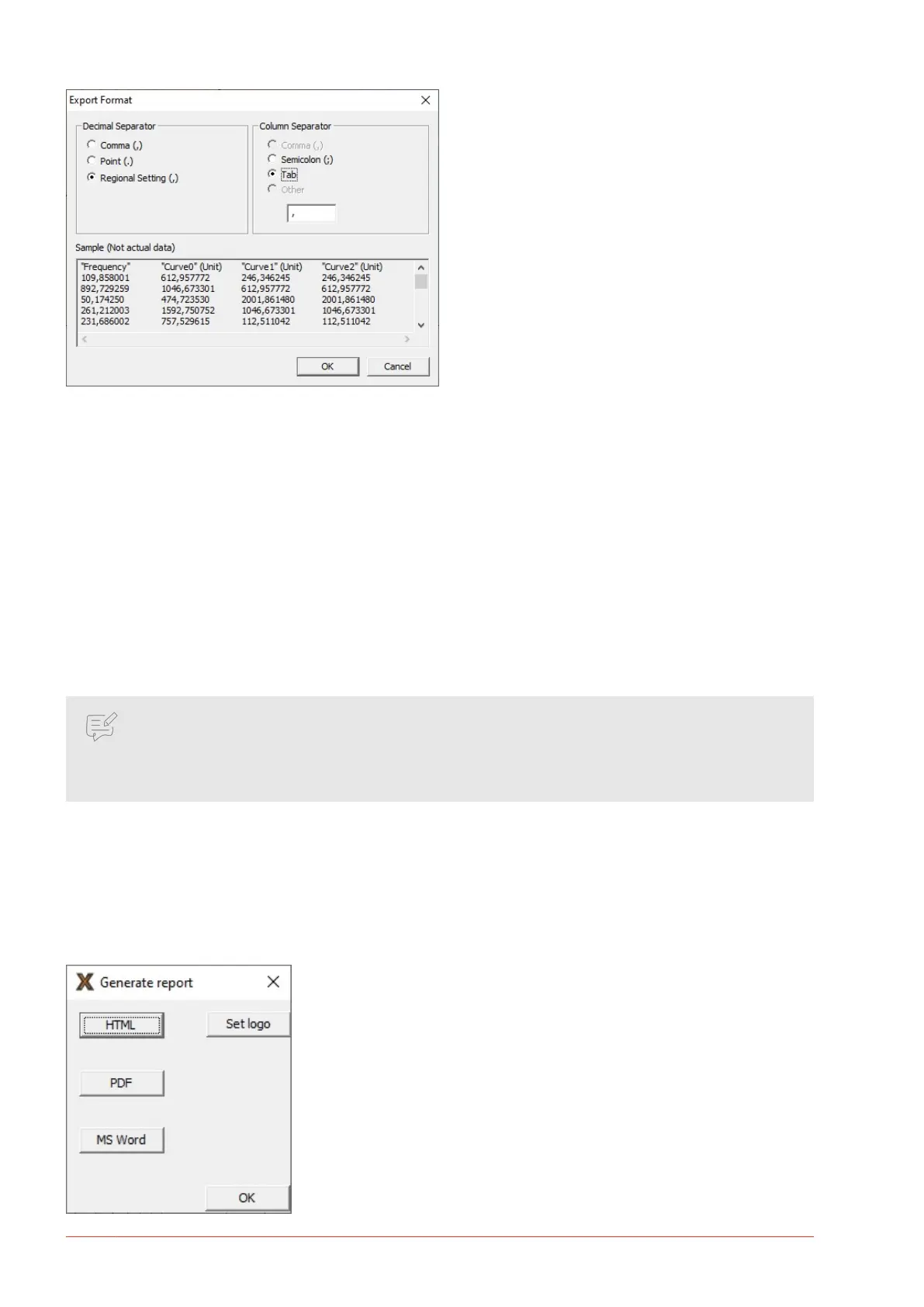

Report... (Ctrl+P)
Makes a simple direct to print-out containing the currently selected tab, i.e., if the magnitude graph view tab
is selected then the print-out will contain the magnitude curve. The print-out will also contain a simple list of
the name- plate data. The printout of nameplate data will be in English only.
Printout can be obtained in html, pdf, and MS Word formats. Setting logotype is for MS Word reports only.
FRAX Software
34 FRAX-series www.megger.com
