6.2 LCD Display
6.3 Voltage warning
If the voltage is greater than 25 V the meter automatically displays the voltage.
For MIT400, MIT405, MIT410, MIT420, MIT430 and MIT40X instruments, if a voltage greater
than 50V exists, testing will be automatically inhibited and voltage measurement will be
displayed.
For MIT480, MIT482, MIT485 instruments, if a voltage greater than 75 V exists, testing will be
automatically inhibited and a voltage measurement will be displayed. Voltages higher than 50
V will be indicated by a warning buzzer.
In continuity mode, if a voltage greater than 25 V exists, testing will be automatically inhibited
and voltage measurement will be displayed.
6.4 Backlight operation
All instrument displays are backlit. The backlight function can be selected at any time while
the instrument is switched on by pressing the BACKLIGHT [
] button. Refer to figure 4.
The backlight function will switch off automatically after 20 seconds.
Multifunction
analogue display
Units of parameters on
auxiliary display
Battery condition
indicator
Audible alarm indicator
TRMS indicator
Units of parameters on
main display
Auxiliary digital display
Continuity indicator
Lock indicator
Warning – refer to
user manual
Fuse blown indicator
Out of range
indicator
Lead null indicator

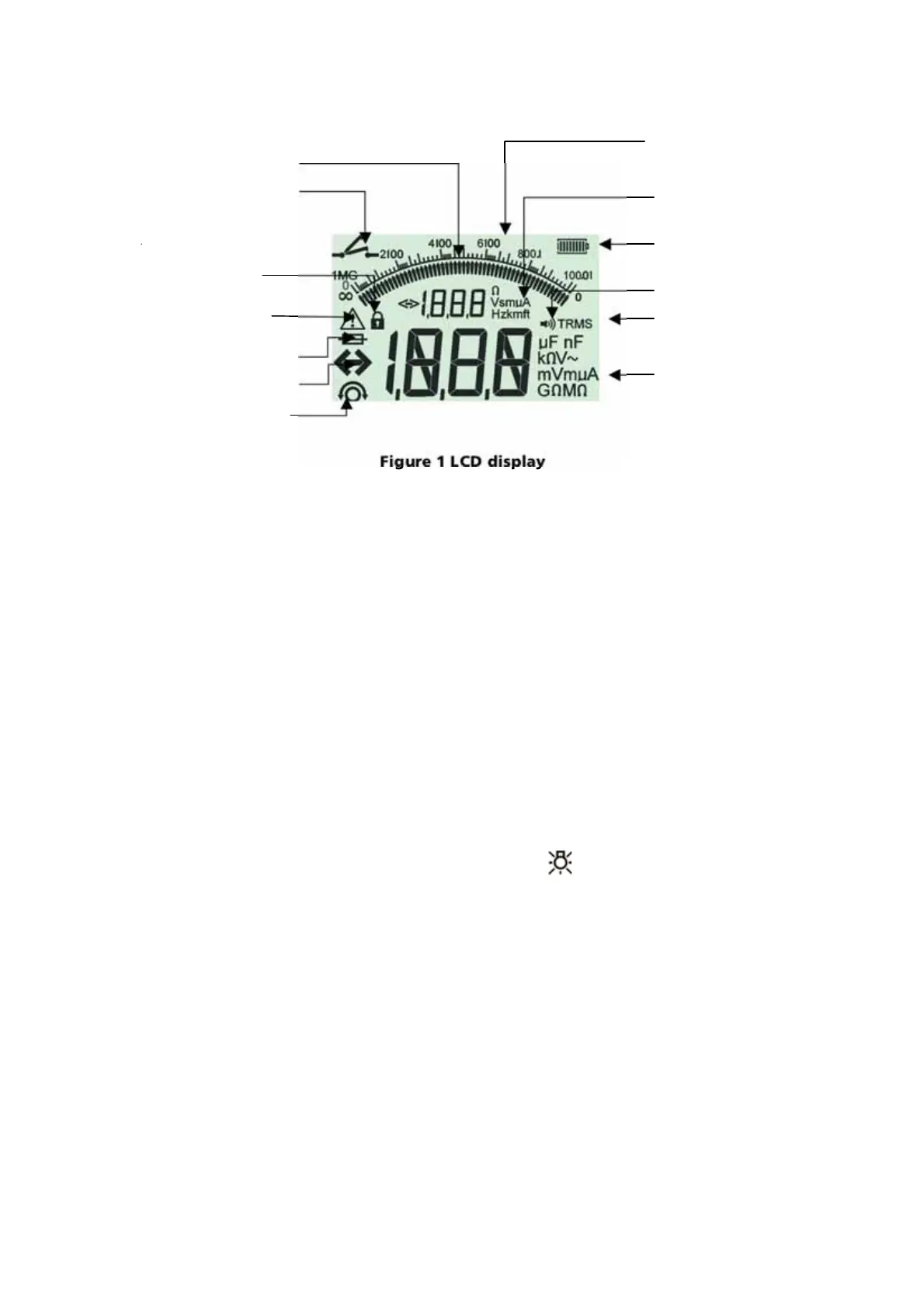

Fi
ure 1 LCD displa
