Note: The test current displayed is the actual test current used during the test, which
will depend on the resistance of the circuit under test.
12. Resistance measurements (k Range)
(Except MIT40X and MIT480)
Test procedure (refer to Figure 10)

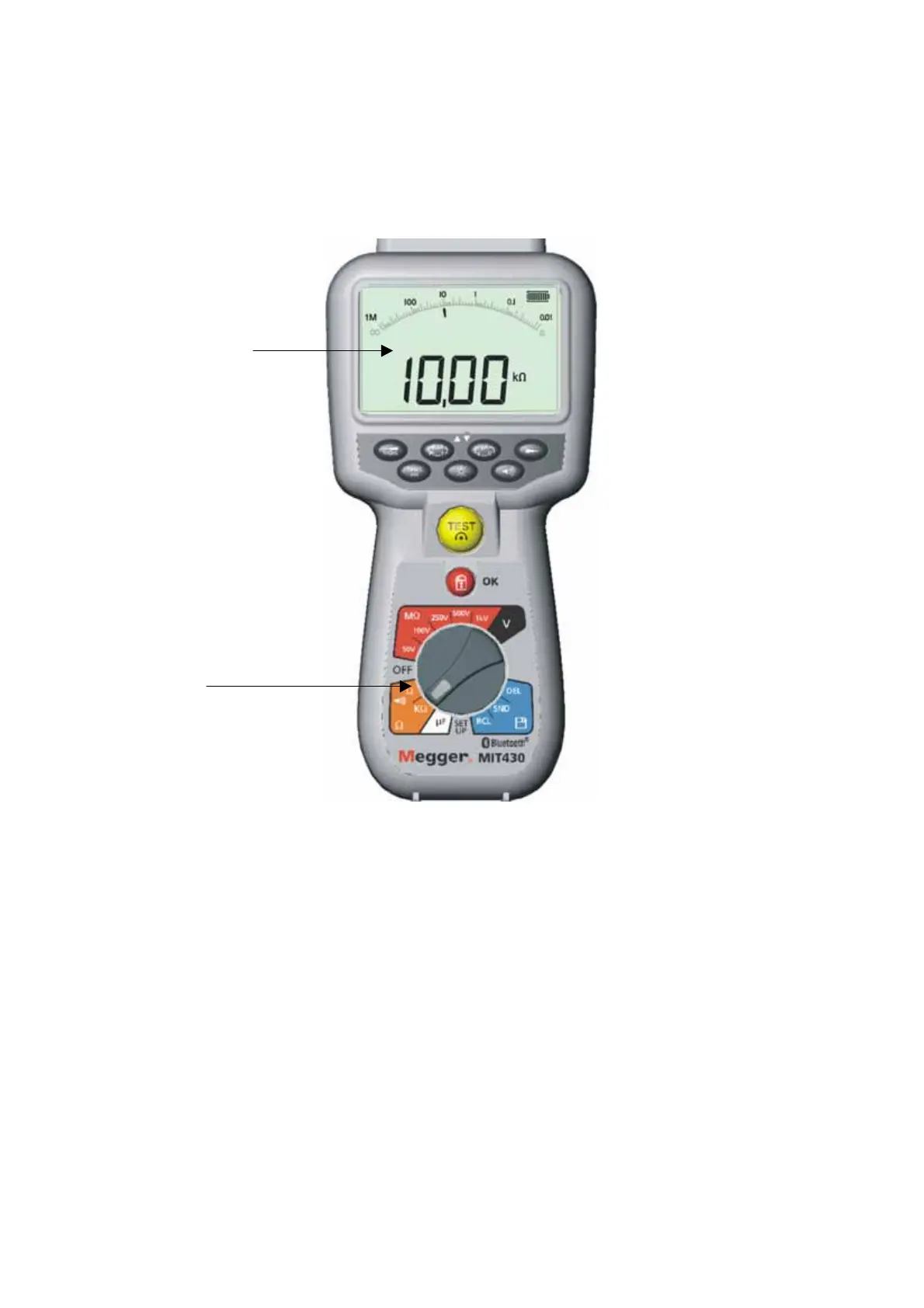

Figure 10 Resistance – k range
1. Turn the instrument ‘ON’ by rotating the selector switch to the desired [k]
position.
2. Connect the test leads to the isolated conductors under test.
3. Observe the test result, displayed automatically.
Step 2:
Connect leads
to conductors
Step 3:
Result displayed
Step 1:
