6.1 General functions

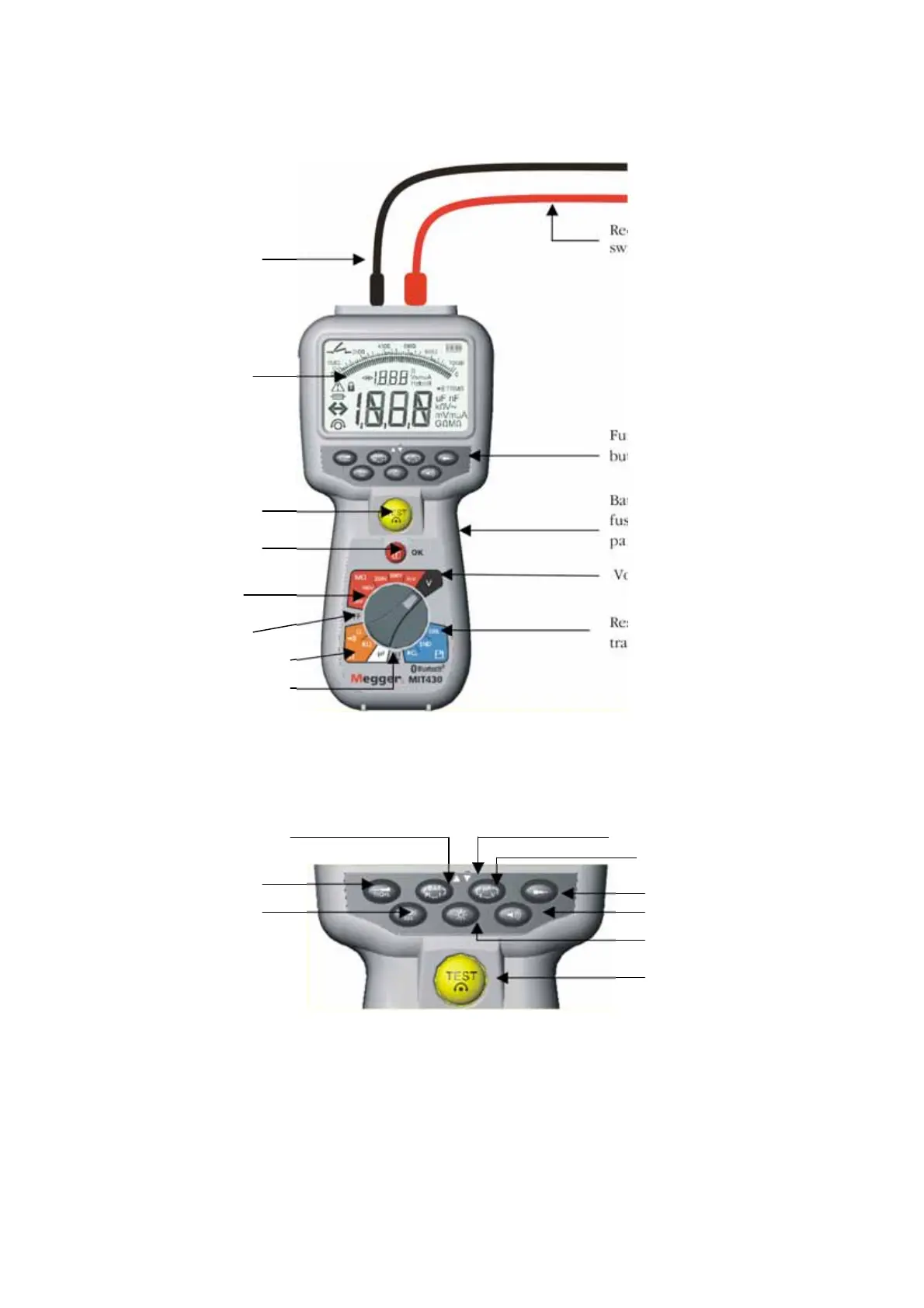

Figure 3 Main features (MIT430 shown)
Figure 4 Function buttons (MIT430 shown)
Red test lead or
switched probe
Black Test lead
connection
Test button and
lead null
Insulation lock
button
Function
buttons
Battery/internal
fuse access
panel at rear
Result recall and
transfer
Insulation test
ranges
OFF positon
Resistance ranges
Capacitance (μF)
Insulation, PI test, DAR test
or timed test button
Up/down buttons
μA/s/V button
Buzzer on/off
Backlight button
Store/last button
TRMS/DC button
Test button
Next button
LCD screen
Voltage range
