9. Quick test - QT
The Quick Test (QT) key provides instant access to continuity, bond, insulation, leakage, RCD, load (Operational) and flash testing,
without having to create a test group.
NOTE: Some tests shown below may not be available, depending on the instrument being used.
Running a quick test
1) Press the QT key on the keyboard. The display will show a numerical list of options.

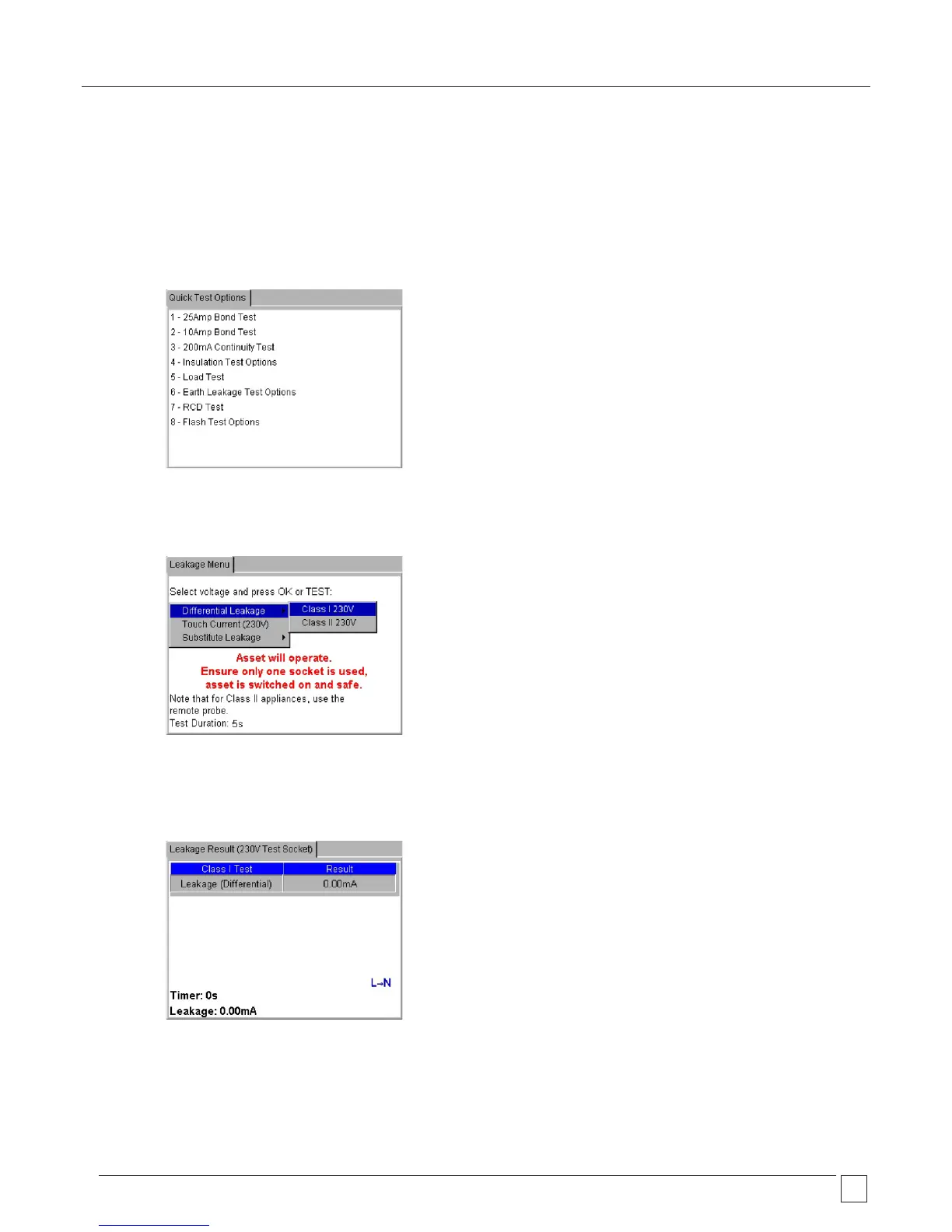

Example of QT screen options for a PAT450
2) Press the number key associated with the test you wish to run.
Example - Earth Leakage
Note: Where a test has several options, such as Earth Leakage, a sub menu of options will appear.
3) Navigate through the sub-menu options if available.
4) Press OK or TEST key to start testing.
5) Follow on-screen instruction as necessary.
On completion of the test the final measurement will be displayed.
Quick test times can be changed in SETUP. Refer to section 10.4
