CashFlow
952X / 952Xe / 9510 User Guide
MEI., 2005 Page 14 Rev: G2

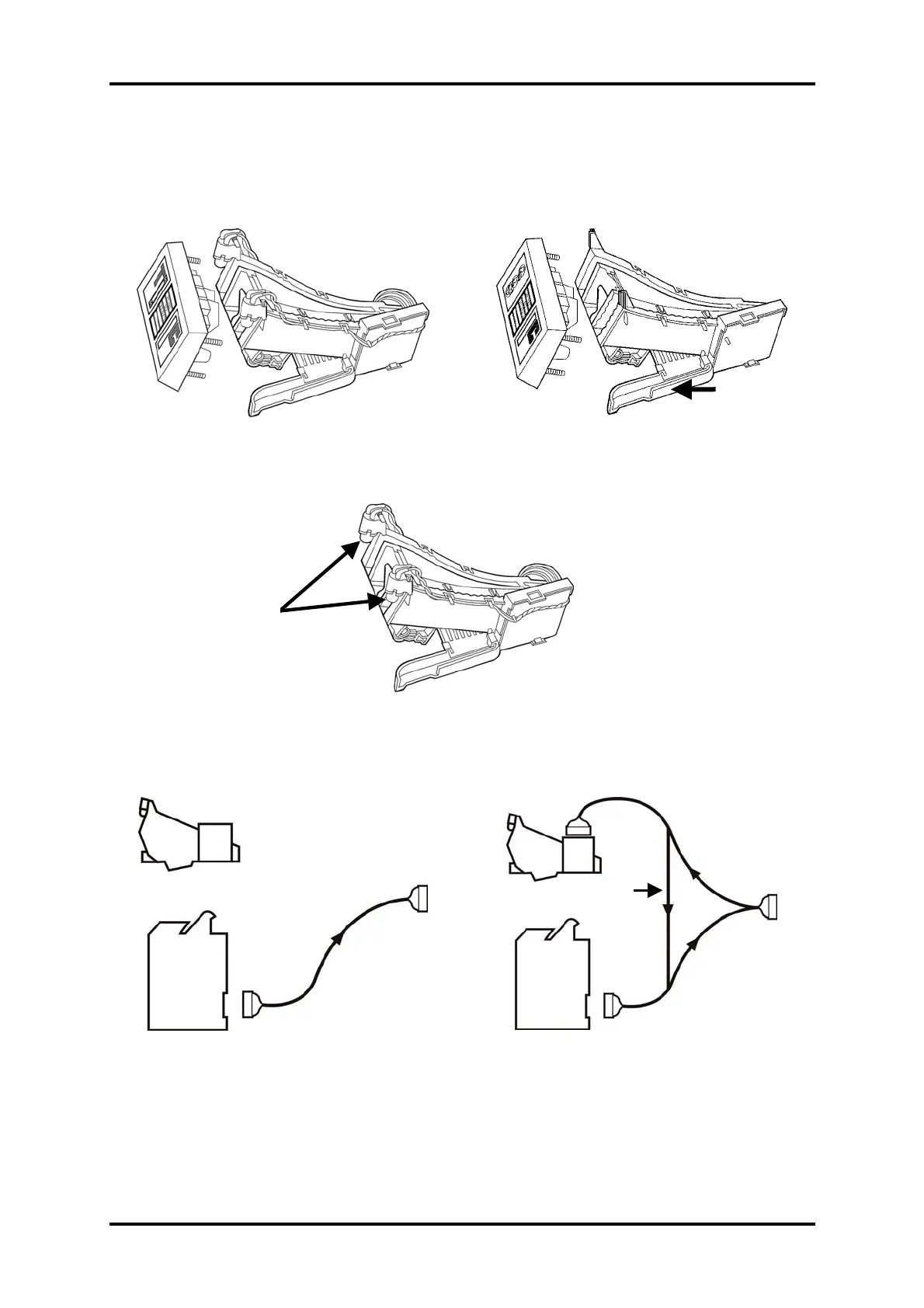

Y-Chute Components
Two Y-chute options are available that are used in conjunction with the coin entry bezels.
One type includes electronics with back illumination of the dual coin/token entry bezel (DCE)
and the other has no electronics particularly suitable for coin only applications.
Electronic Y-Chute Coin Only Y-Chute
The overall design of both Y-chutes is the same, with the addition of electronics for back
illumination being used with the dual coin/token option.
The two Y-chutes already referred to can both be used with the short channel version, but
care must be taken to ensure that the required gap is maintained between the Y-chute reject
arm link and the reject lever of the coin mechanism.
Coin Only Set-up
In a coin only application the interface loom
from the machine goes directly to the
validator.
Controller Set-up
The use of the dual coin/token application
requires a different loom, which connects as
shown above.
DCE Y-chute
Fluid Duct
Non-electric Y-chute
To host machine
To
To validator
To host machine
Dual coin/token Y-chute with
Coin/token
inhibit signals
Illumination Bulbs
To Next Page
