CashFlow
952X / 952Xe / 9510 User Guide
MEI., 2005 Page 9 Rev: G2

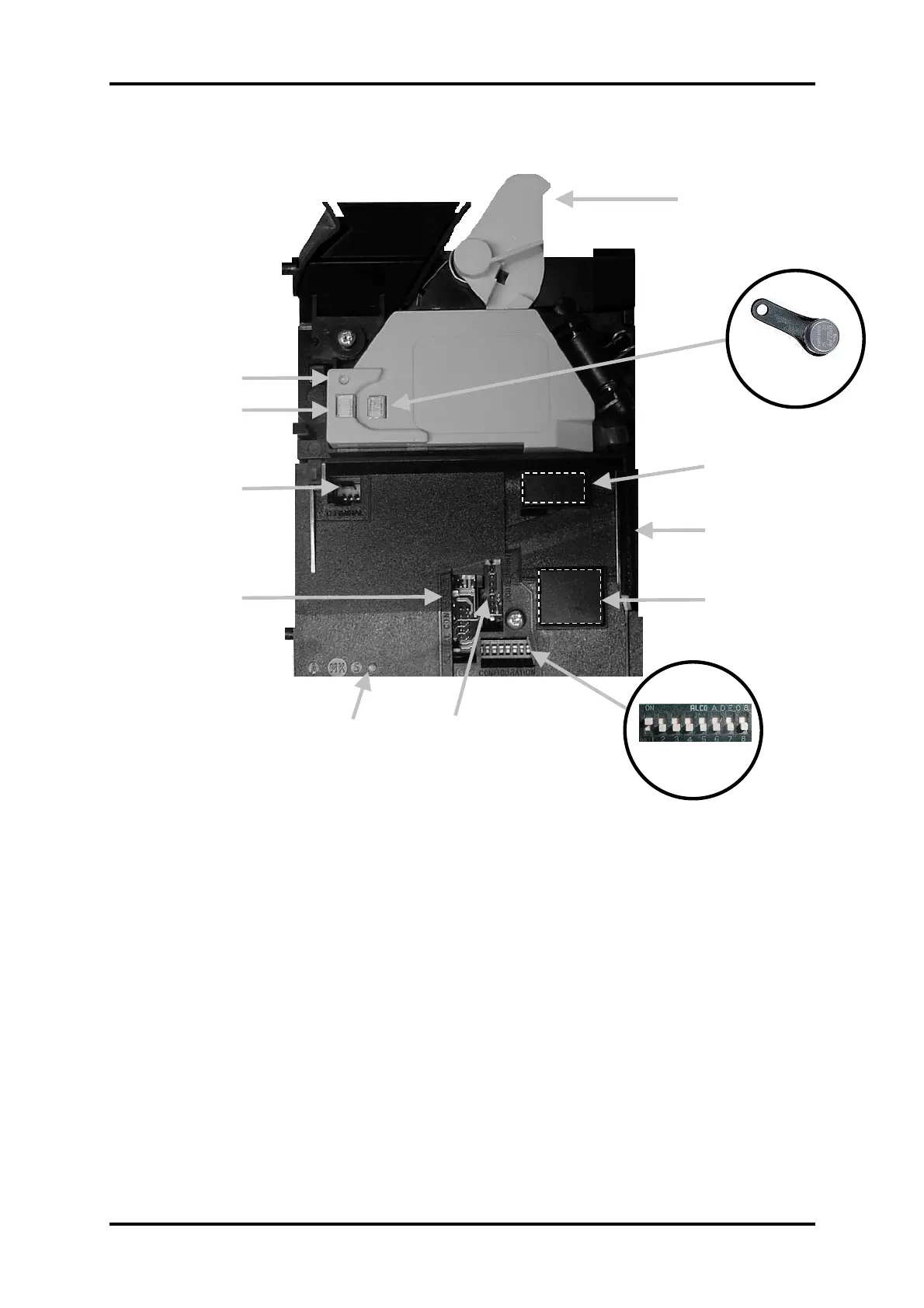

PRODUCT FEATURES
Key:
1
Diagnostic Bi-colour LED
2
iButton
®
Memory Contacts
3
Support Tool Connector (i.e. CPM – Cashflow Programing Module)
4
a) Serial Interface Connector (HII) on CF952X
b) Serial Interface Connector (HII/ccTalk
®
) on CF952Xe
c) STD212, 12V 10-way Open Collector Parallel Interface on CF9510
5
Route Inhibit Connector (not available in CF9510)
6
Configuration Switches (8 way DIL)
7
Post-gate and Directional Strobes
8
Machine Interface Connector (CF952X/CF952Xe only, Dual polarity
and BCO)
9
Pre-gate Strobe
10
Reject Lever
11
a) Separator Connector for CF952X/CF952Xe Series
b) STD 124, 24V 16-way Open Collector Parallel Interface for CF9510
1
2
3
4
5
7
10
i™Button
Memory
6
8
9
11
To Next Page
