CashFlow
952X / 952Xe / 9510 User Guide
MEI., 2005 Page 16 Rev: G2
Top Entry Mounting
The mounting channel for the CashFlow
®
9524/9524e top entry product is supplied by the
machine manufacturer, and therefore some variations may exist from machine to machine,
however in principle these instructions still apply.
When mounted into a channel the product must be fully assembled and ready for use, with
only the machine interface loom to be connected.
The mounting points indicated must be firmly seated into the channel and a gap of between
2-3 mm left between the reject lever and the reject arm from the machine. This small gap will
ensure that the validator lid is able to fully close when the reject button on the machine has
been pressed and released.
Note: Your product may differ slightly from some of the illustrations in this document.

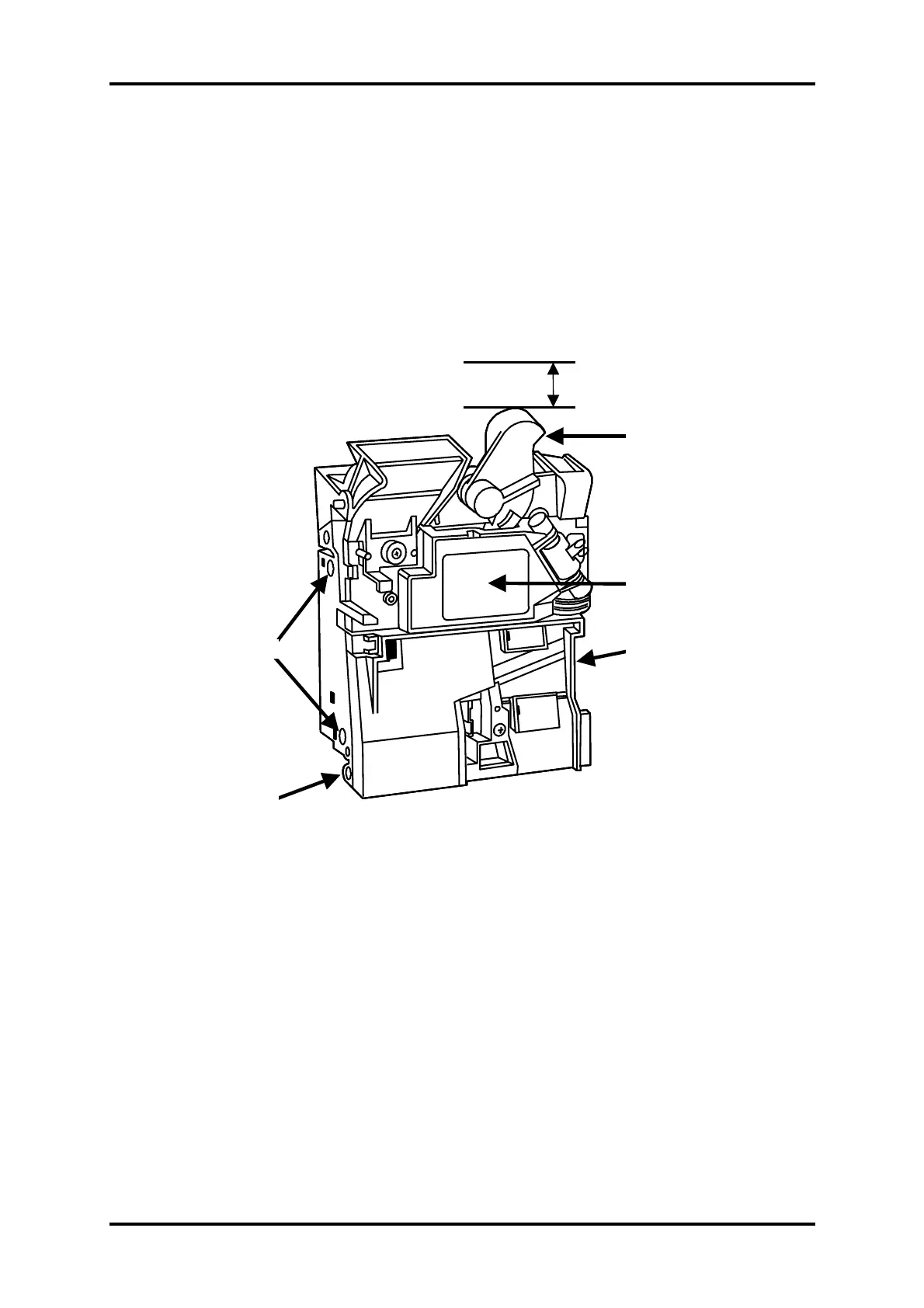

Validator Lid
Reject Lever
Machine Interface
Connector
Mounting Holes
Mounting Point
2 - 3 mm Gap
To Next Page
