CashFlow
952X / 952Xe / 9510 User Guide
MEI., 2005 Page 31 Rev: G2

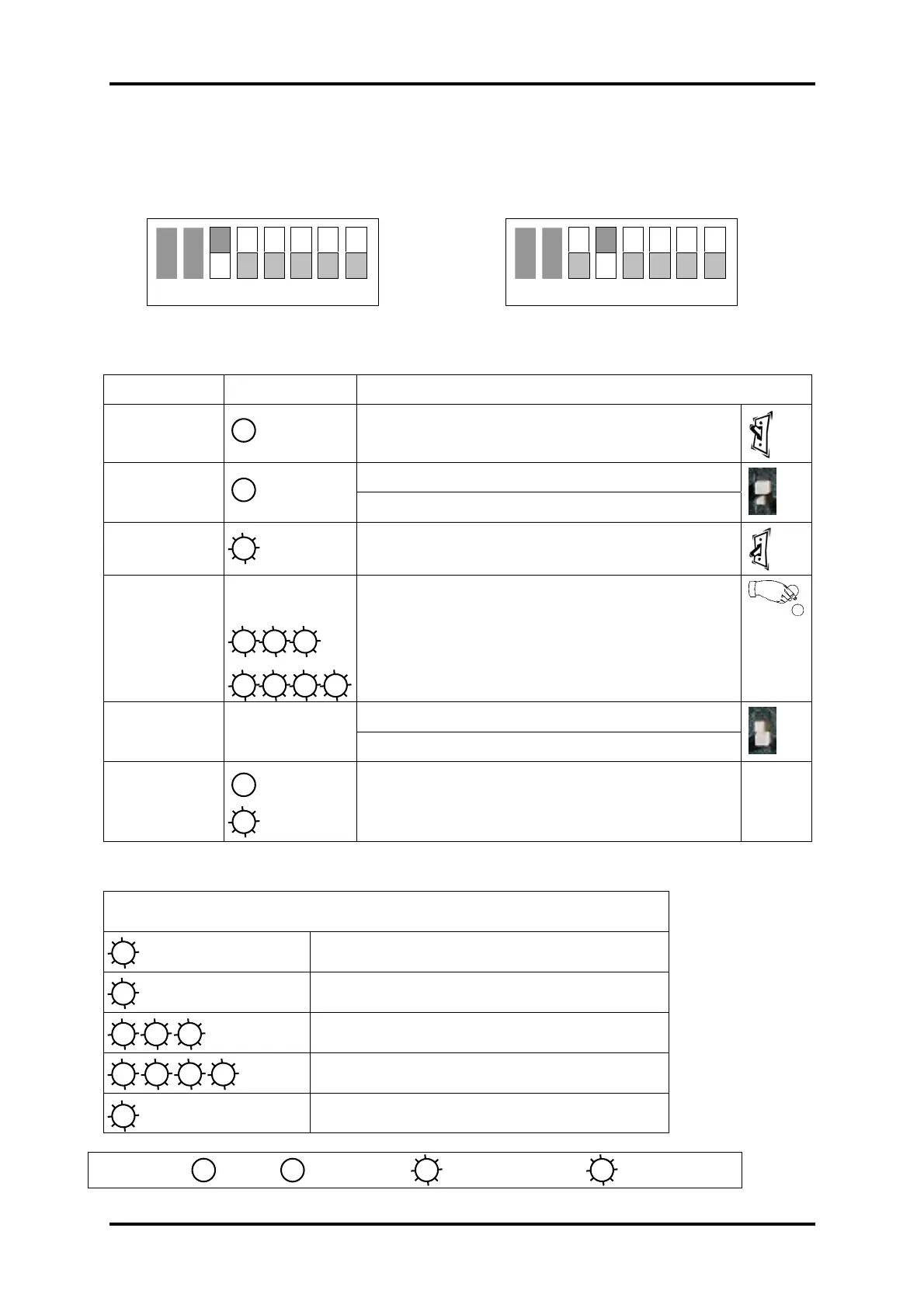

SW3 - Enable Coin Teach and SW4 - Inhibit Coin Teach
(Common to the CF952X, CF952Xe, and CF9510)
Enable a Coin: Inhibit a Coin:
These switches change the state of the accepted coin(s) from Inhibited to Enabled and vice
versa. Follow the instructions below to either Enable or Inhibit a coin(s):
Step Light Operation and Action Required
1 Power Machine OFF
To enable a coin set switch 3 to ON
2
To inhibit a coin set switch 4 to ON
3 Power Machine ON
4
Insert coin(s) to be enabled or inhibited.
Inserted coin recognised – OK
Coin NOT recognised (re-insert coin)
Set switch 3 to OFF - ends enable teach.
5
Set switch 4 to OFF - ends inhibit teach
6
Coin accepted / inhibited - OK
Error - Re-try teach again.
Note: The validator must accept any Coin inserted, so that it is firstly recognised
before the action to enable or inhibit can be achieved.
Enable / Inhibit Coin LED Light Codes
Insert coin sample in Unit
Program error
Inserted coin recognised
Inserted coin unrecognised
Inserted coin stored in memory
ON
OFF
12345678
ON
OFF
12345678
Slow Flash
R
GR R
R RG G
4 x Flashes
G
R
Rapid Flash
R
R RG
R RG G
Slow
R
Rapid
G
LED Key =
G
Green ON
R
Red Flashing
G
Green Flashing
OFF
