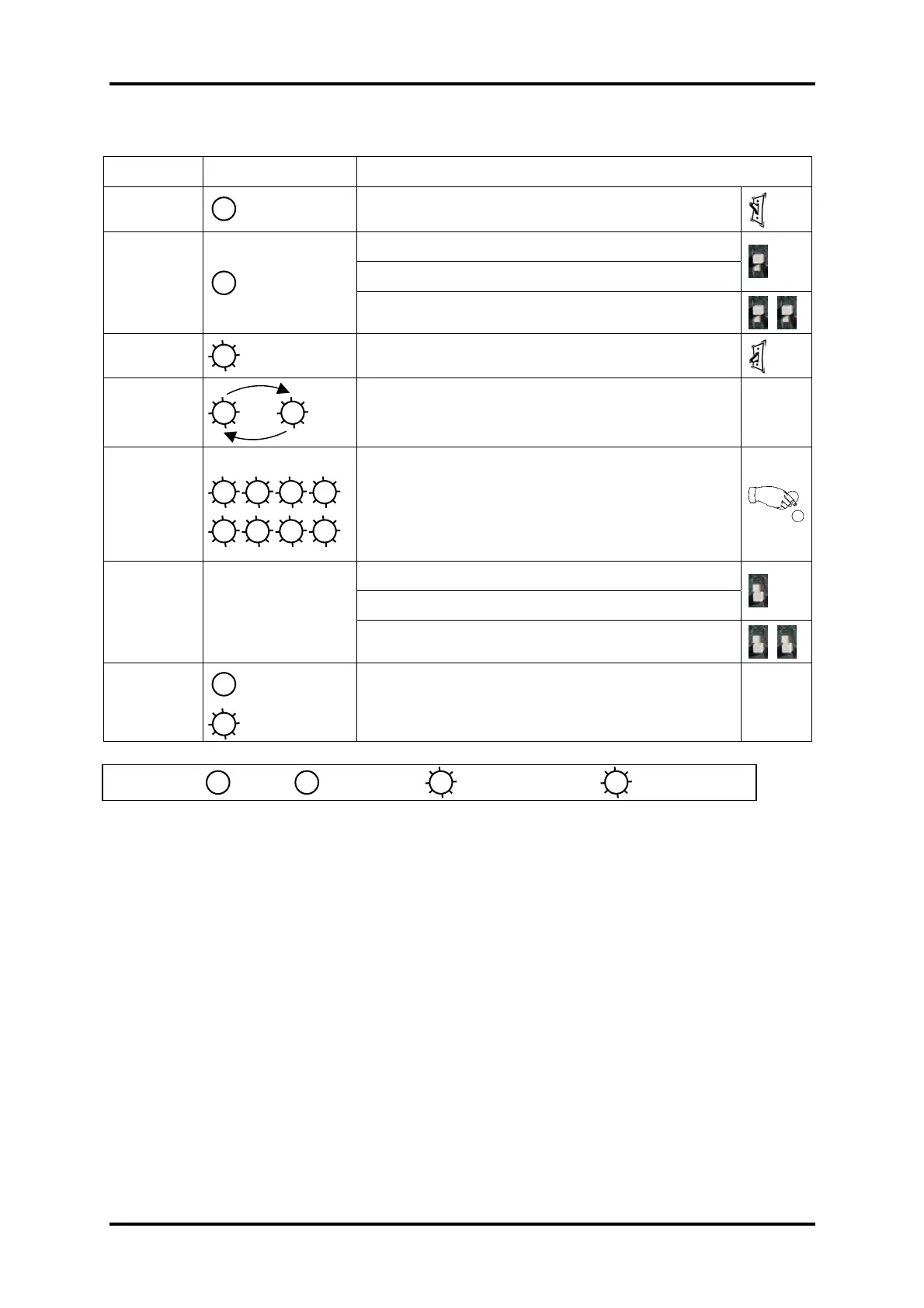

Route Teach Procedure
Step Light Operation and Action Required
1 Power Machine OFF
For primary route set switch 7 to ON
For secondary route set switch 8 to ON
2
For tertiary route set switches 7 & 8 ON
3 Power Machine ON
4 + ?
Press reject lever the number of times for the
requested route.
5
Insert the coin for the required route.
Inserted coin recognised - OK
Coin NOT recognised (re-insert coin).
For primary route set switch 7 OFF.
For secondary route set switch 8 OFF.
6
For tertiary route set switches 7 & 8 OFF.
7
Route taught - OK
Error - Re-try route teach again.
LED Key: -
Slow
R
G
Rapid
R
G G G G
R R R R
R G
G
Green ON
R
Red Flashing
G
Green Flashing
OFF
