Cashflow 9528/9528e System Mounting
The CashFlow
®
9528/9528e system consists of a channel, Y-chute, validator, 8-way
separator, manifold and tube collar plate.
This is supplied as a complete system, but should you need to replace any part of it do so
only in a set sequence, starting from near the top.
Note: The Y-chute can, of course, be removed first, but it is not necessary to do so
just to access the other modules.
Note: Your product may differ slightly from some of the illustrations in this document.
• Ensure that power is turned off, not only to the validator, but also to the Y-chute if
live.
• Disconnect machine interface loom, and the route inhibit connector.

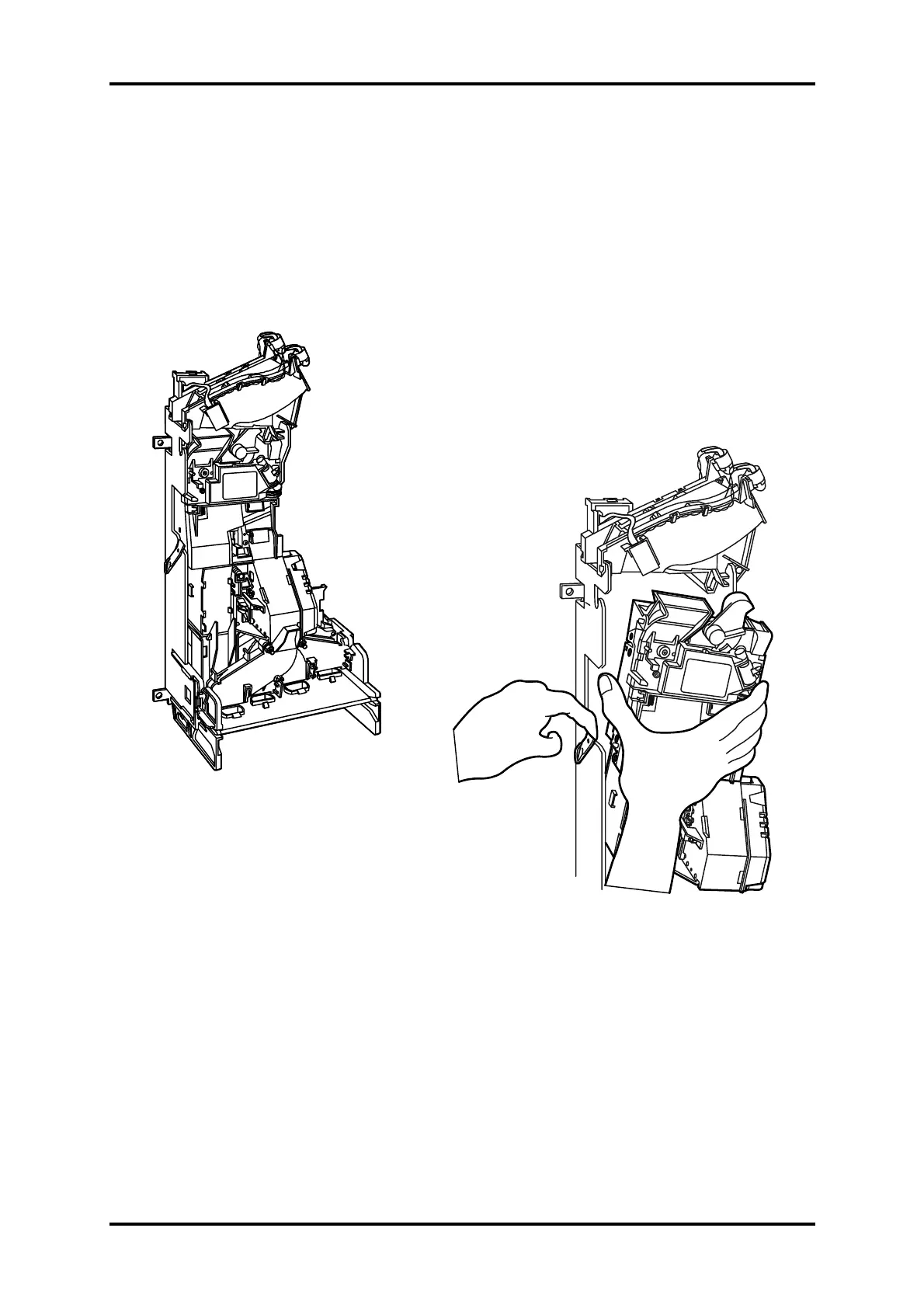

• Disengage the release catch and lift the validator and separator upwards out of the
mounting points. Pull the validator and separator forwards clear of channel.
