CashFlow
952X / 952Xe / 9510 User Guide
MEI., 2005 Page 15 Rev: G2
INSTALLATION
There are two types of machine mounting methods available, “Side Entry and Top Entry”.
For side entry products the machine must have fitted a MEI front plate, for top entry
mounting a metal channel is used.
Installing or removing the CashFlow
®
product from your machine can be done by following
these simple instructions.

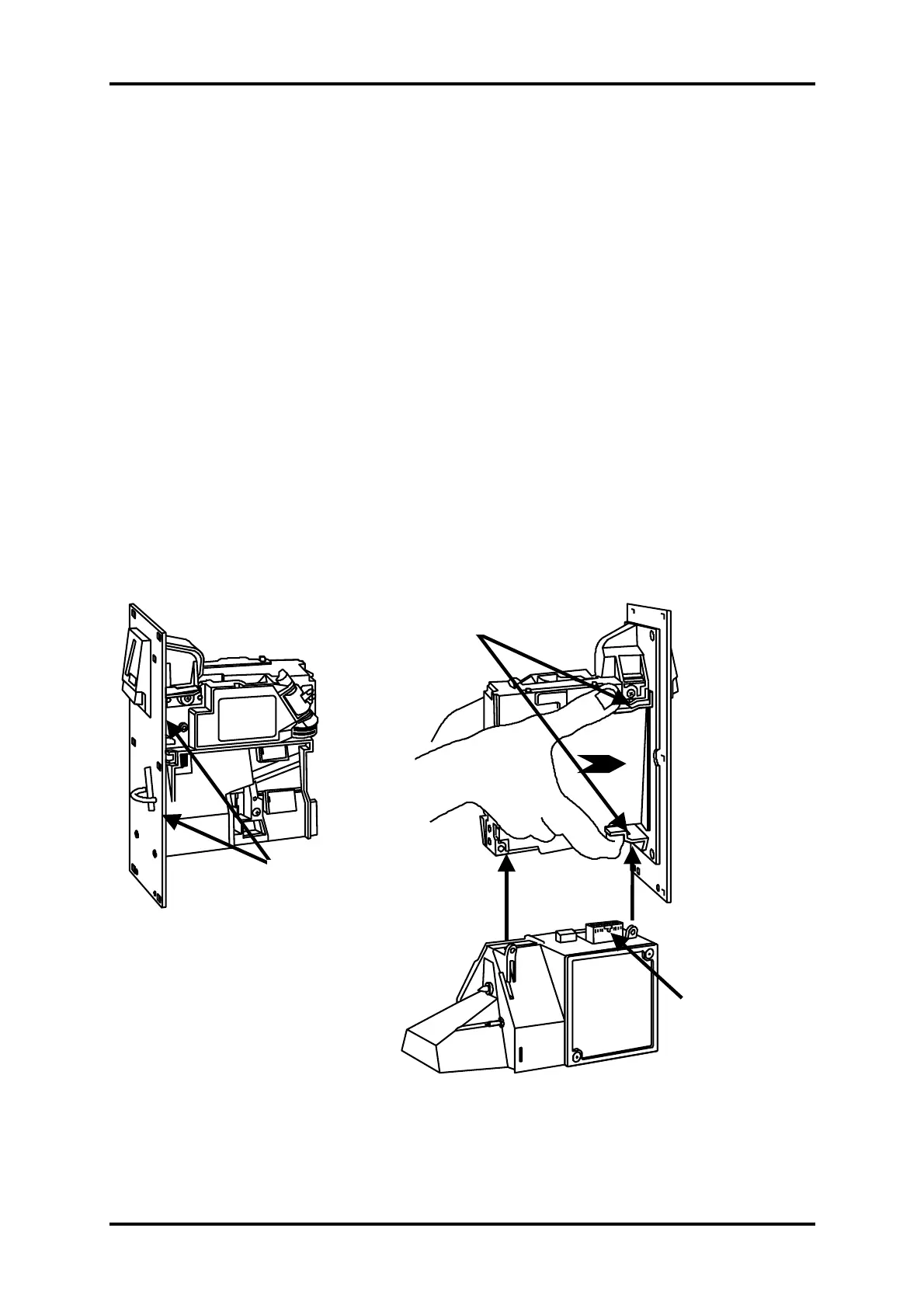

• Connect the separator loom to the connector at the base of the validator and locate
the rectangular boss on the top of the separator into the base of the validator.
• Firmly screw the separator fixing lugs onto the rear of the validator.
• Having ensured that the front plate has a firm location onto the front of the machine,
insert the side of the validator onto the two round bosses at the rear of the front plate
and push firmly together until the two retaining clips are fully engaged.
Side Entry Mounting
When installing the CashFlow
®
9500 front entry product, it will be fitted to a MEI front plate
and the following instructions will always apply.
Having ensured that the front plate has a firm location onto the front of the machine, insert
the side of the validator onto the two round bosses at the rear of the front plate and push
firmly together until the two retaining clips are fully engaged.
Note: Your product may differ slightly from some of the illustrations in this document.
Fixing Lugs
Bosses
Retaining Clips
Separator Loom
