CashFlow
952X / 952Xe / 9510 User Guide
MEI., 2005 Page 18 Rev: G2

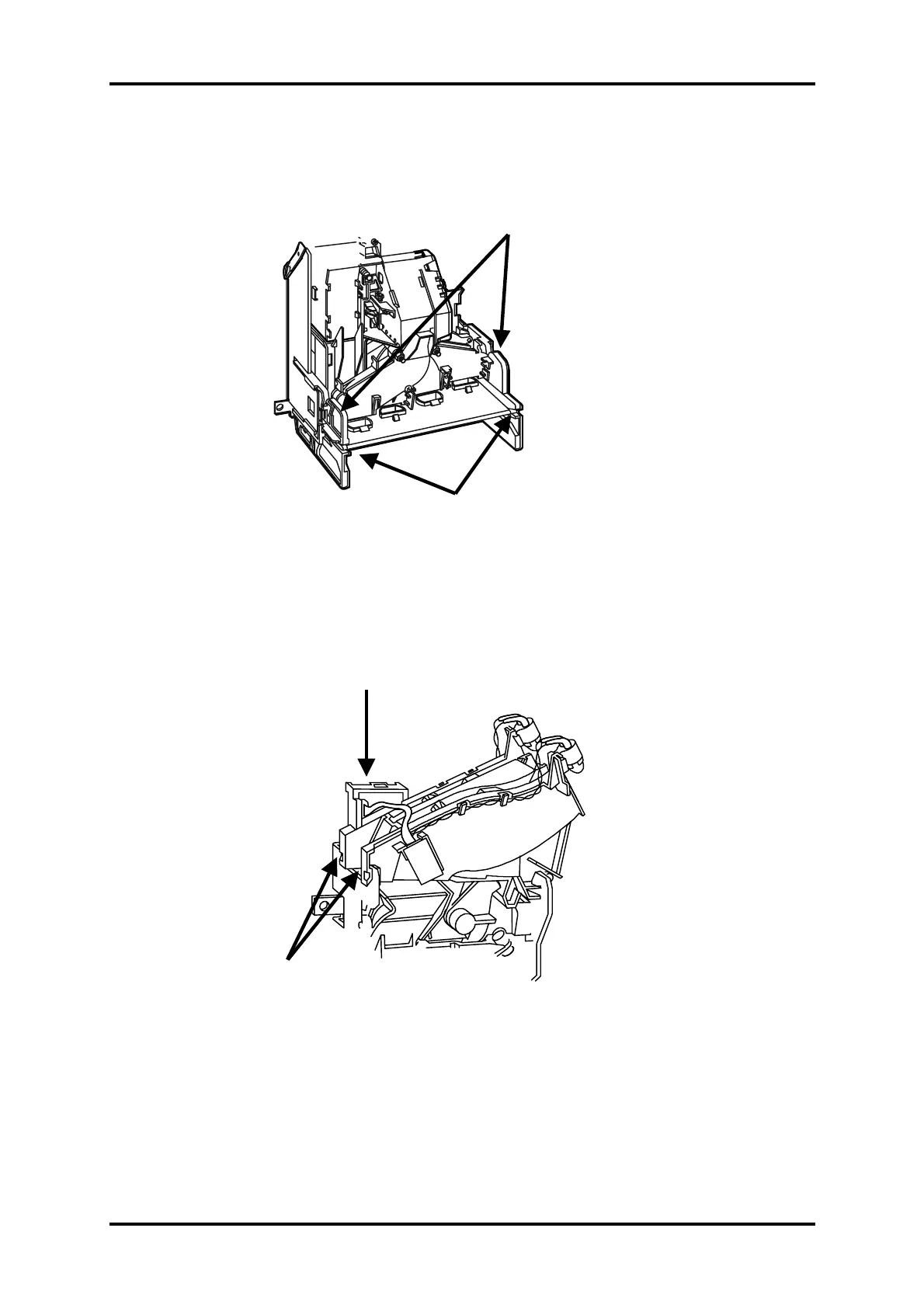

Removal of Manifold and Collar Plate
The manifold is supported in position by four lugs which slot into the side plates of the
channel. It is retained there by two catches, as is the collar plate at the bottom.
Manifold Release Catches
Collar Plate Release Catches
Removal of Y-chute
• Always disconnect the electrical connection first, if used, before removal of the Y-
chute.
• Pinch together the bottom ends of the Y-chute and lift upwards and to the right from
the channel.
Electrical Connection
Pinch together and pull
Upwards to the right
To Next Page
