CashFlow
952X / 952Xe / 9510 User Guide
MEI., 2005 Page 28 Rev: G2

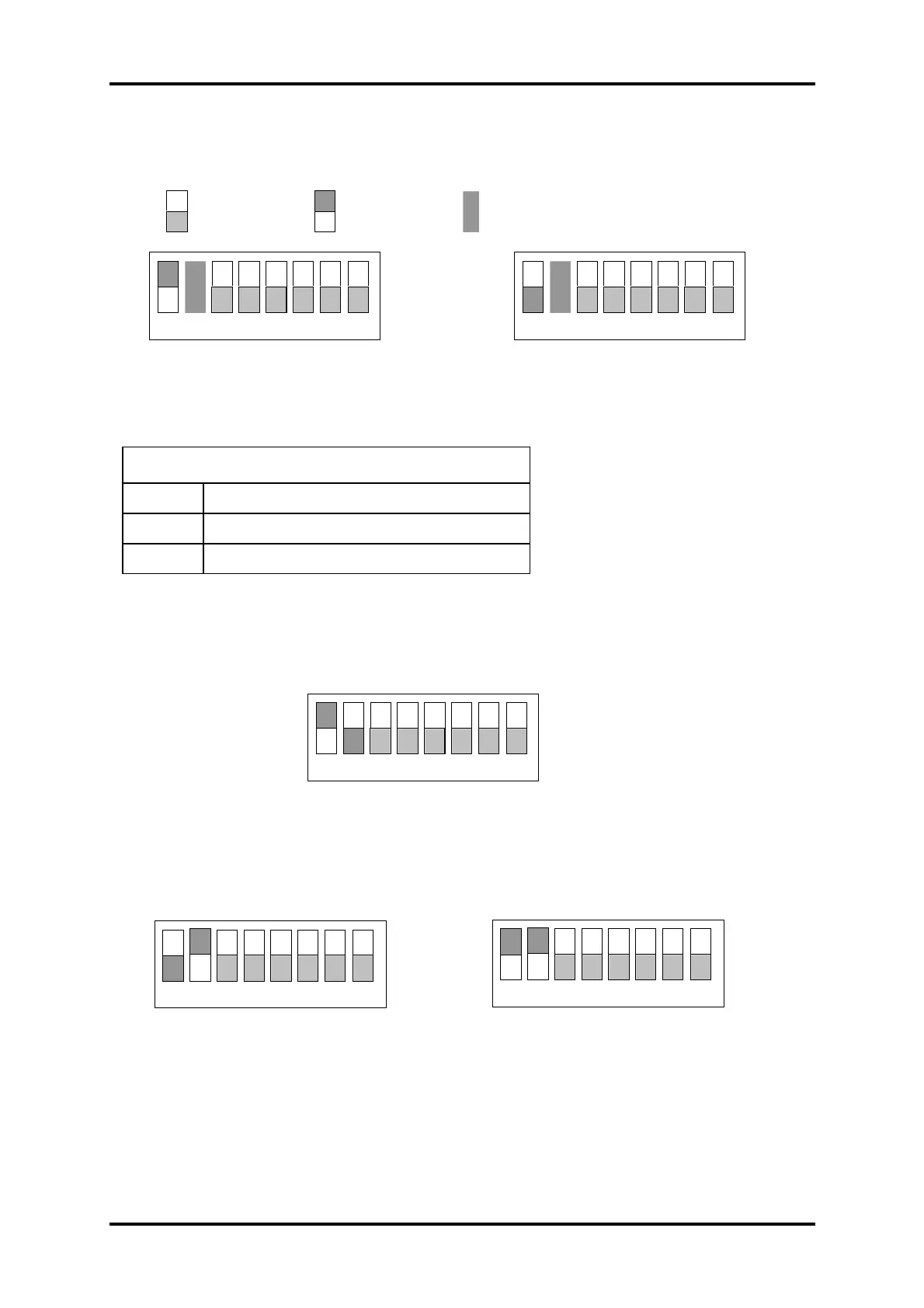

CF952X - SW1 - Alarm Enable
SW1 - On - Alarm enabled SW1 - Off - Alarm disabled
When switch 1 is set to ON the alarm feature is enabled. The Alarm will not be active until
the first coin has been inserted. The Alarm can be switched ON or OFF at any time without
the need to turn off the power to the CF952X.
Alarm output signals
Mode Output status
Parallel All outputs on for >600ms
BCO All outputs high except for output C
CF952Xe - SW1 - Alarm Enable/ccTalk
While switch 2 is OFF, SW1 behaves as the Alarm Enable switch.
When SW2 is active, SW1 becomes the serial protocol selector. If SW1 is OFF, the serial
mode selected is HII. If SW1 is ON, ccTalk
is the serial protocol selected.
ON
OFF
12345678
ON
OFF
12345678
= Switch OFF = Switch ON =Don’t Care
KEY
ON
OFF
12345678
ON
OFF
12345678
ON
OFF
12345678
HII selected
ccTalk
selected
To Next Page
