Cleaning Link Area

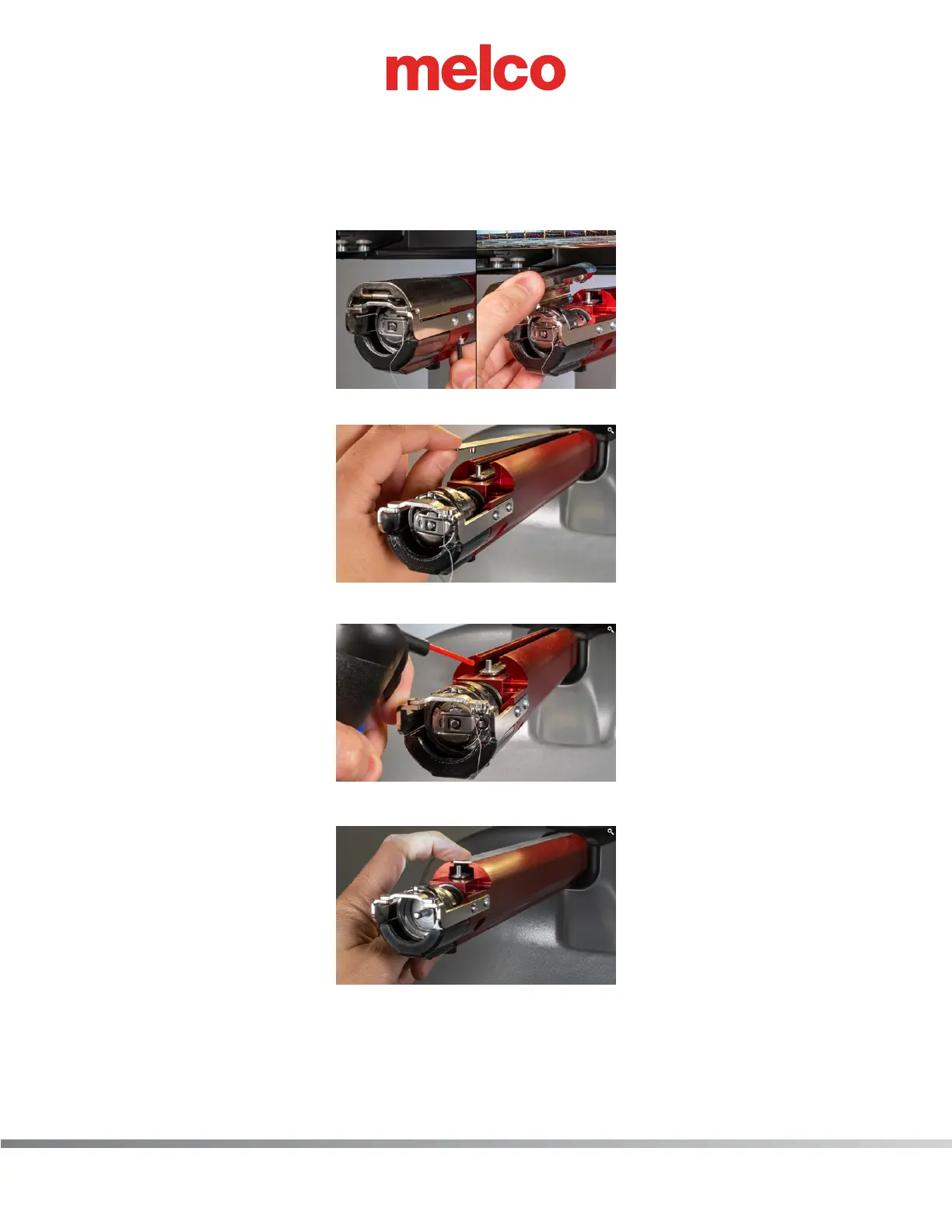

15. Using a 2.5mm Allen wrench, loosen and remove the two (2) hex head needle plate screws on
either side of the bottom of the lower arm as shown in the image.
16. Remove the needle plate from the machine by lifting the needle plate straight up.
17. Remove the link cover by pulling up. It is held in place with two magnets and should release fairly easily.
18. Clean the link area using compressed air.
19. Replace the link cover with the notched end toward the back of the machine. It is held in place
with two magnets.
