8. Check the functionality of the trimmer sensor.

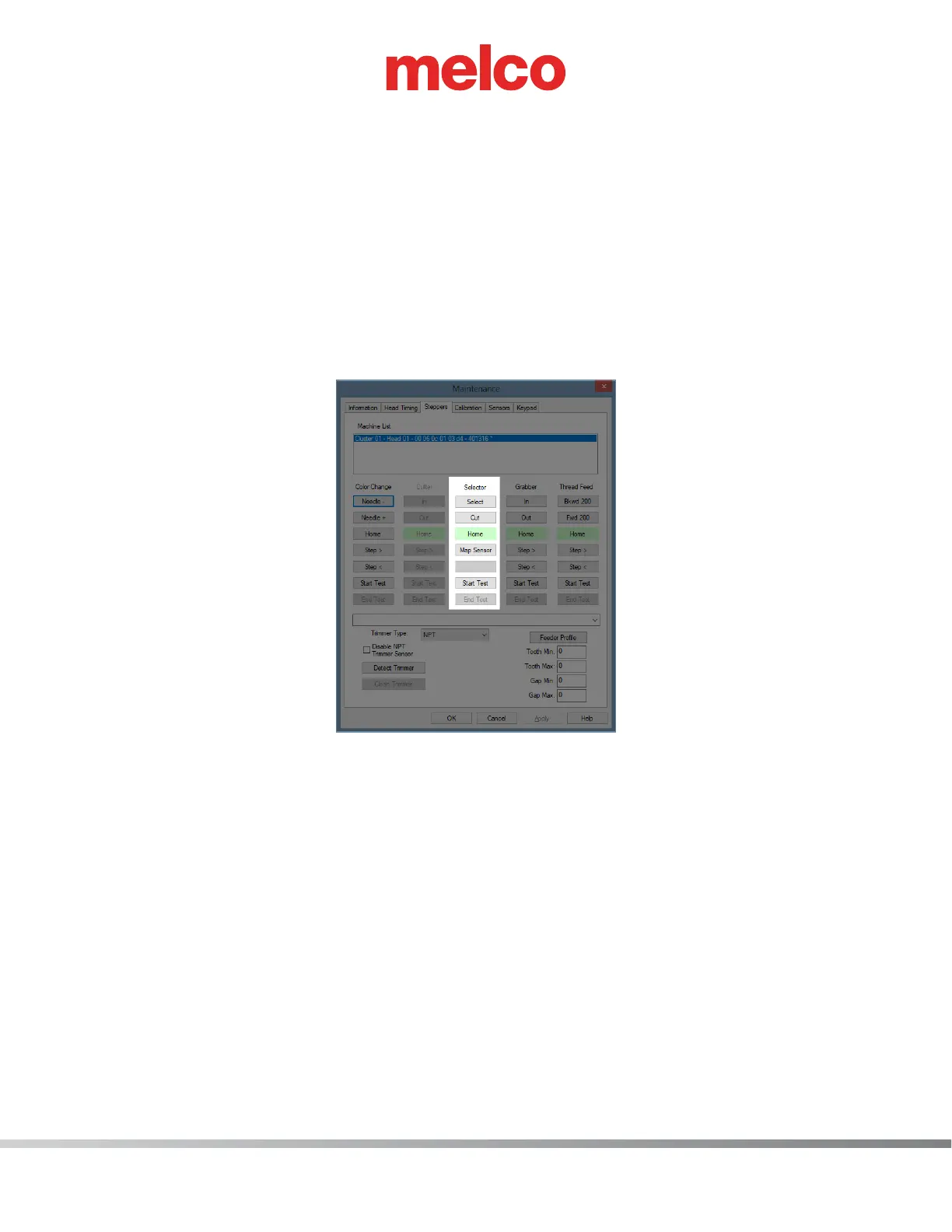

a. In the OS software go to Tools>Maintenance>Steppers tab.
b. The selector column shows the steps of the trim process.
c. The color of the “home” button changes color when stepping through the trim process de-
pending on the status of the trimmer sensor.
• Click [Select] and the [Home] button should change to the color to red.
• Click [Cut] and the [Home] button should change to the color to green.
• Click [Select] again and the [Home] button should change back to the color to red.
• Click [Home] and the [Home] button should change to the color to green.
d. If the status of the trimmer sensor does not correspond to the correct colors, check to make
sure the trimmer sensor is installed correctly per step 6. Repeat the test, if the all trimming
process positions listed above, when selected, show the correct indicate “Home” button color,
then the sensor is in correct home position.
