NPT Motor Replacement

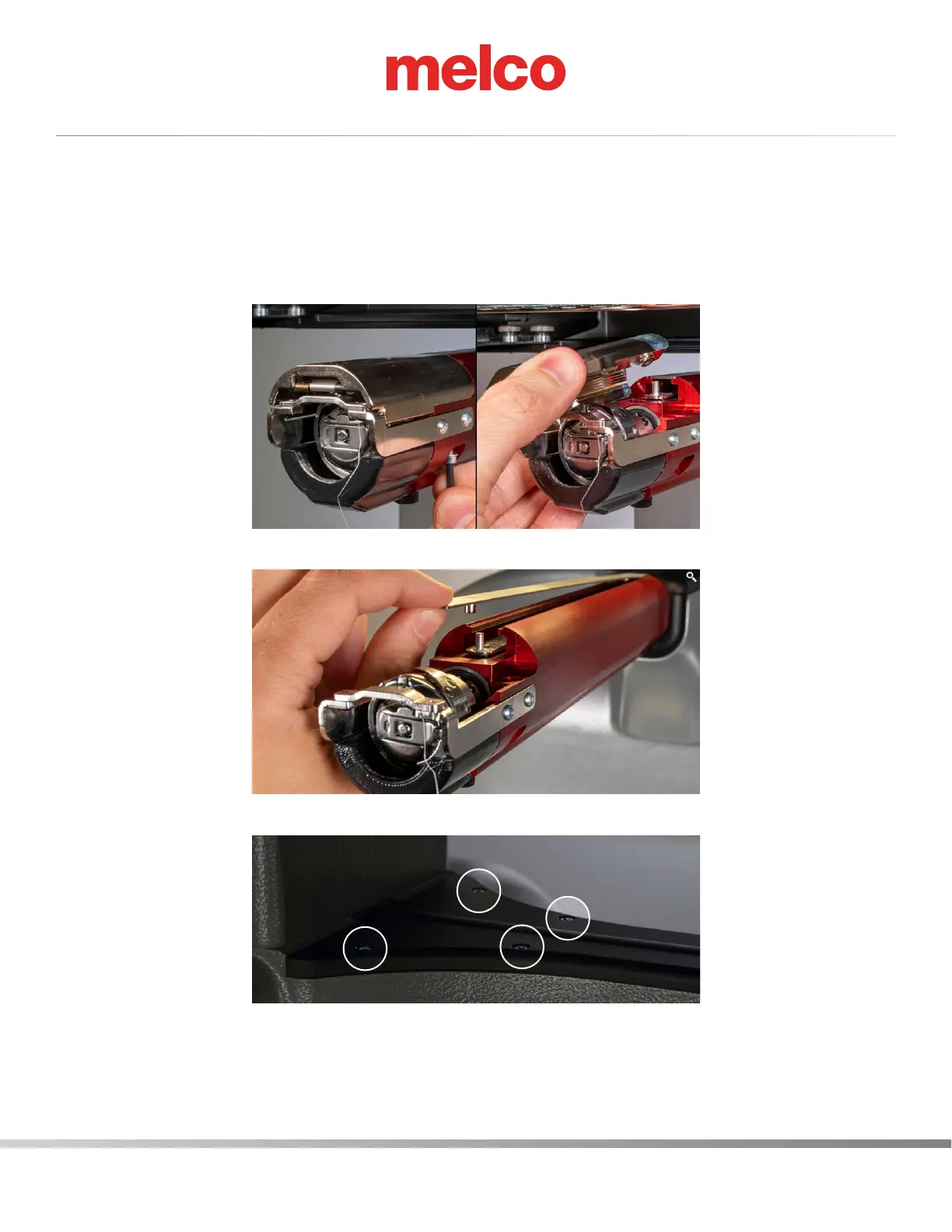

1. Disconnect the A/C power input cord and the external Ethernet cable from the back of the
machine.
2. Remove the needle plate assembly from the lower arm extrusion assembly by removing two (2)
M3x20MM screws and two (2) M3 at washers from the underside of the lower arm extrusion
assembly. Lift the needle plate assembly straight up to release the needle plate from the trimmer
link.
3. Remove the link cover from the machine.
4. Remove the lower arm top cover by removing four (4) M4x12MM Screws.
