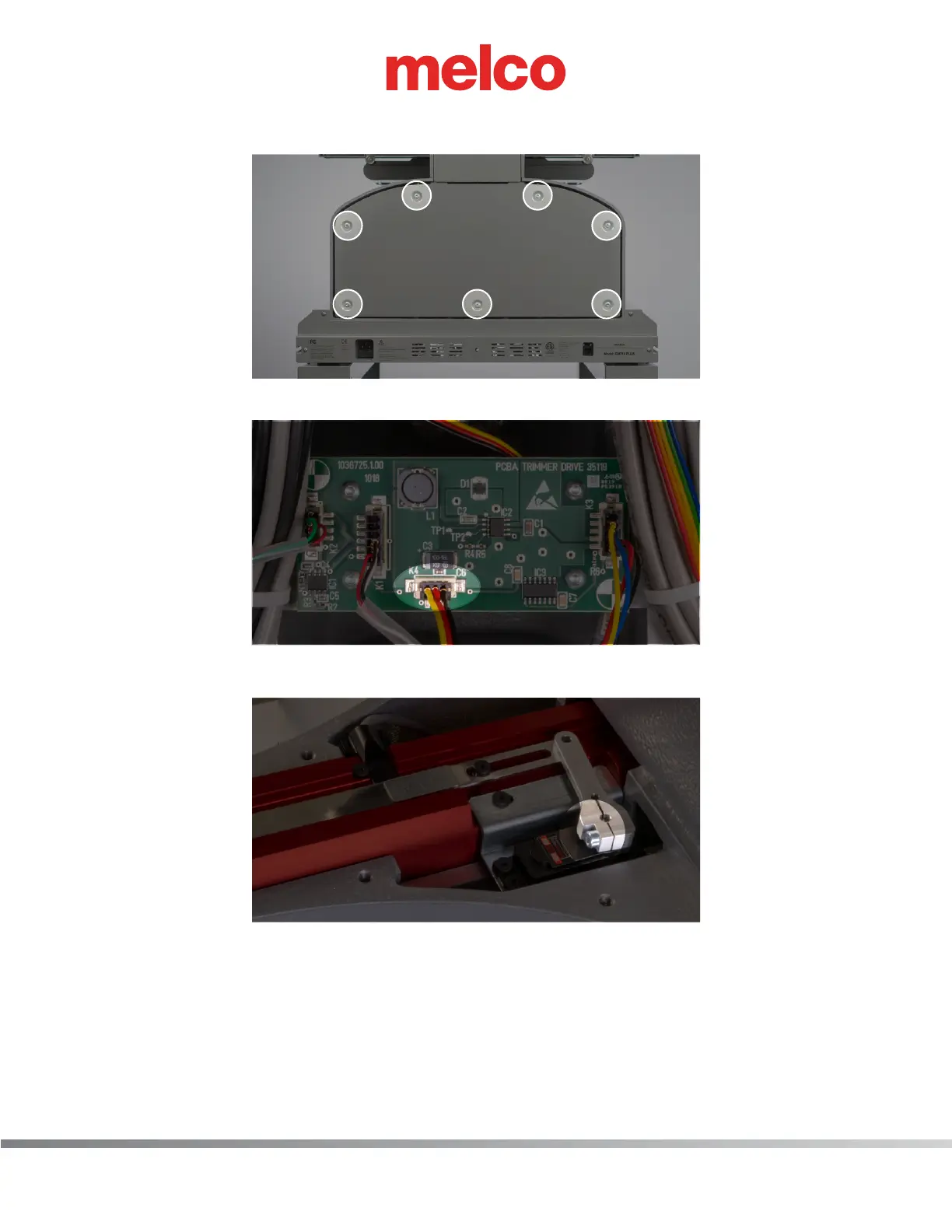

5. Remove lower arm rear cover (7 M4 Socket head cap screws)
6. On the trimmer PCBA locate the connection labeled K4 (bottom connector) and disconnect.
7. Remove the trimmer motor drive arm by loosening the M3 securing hardware.
