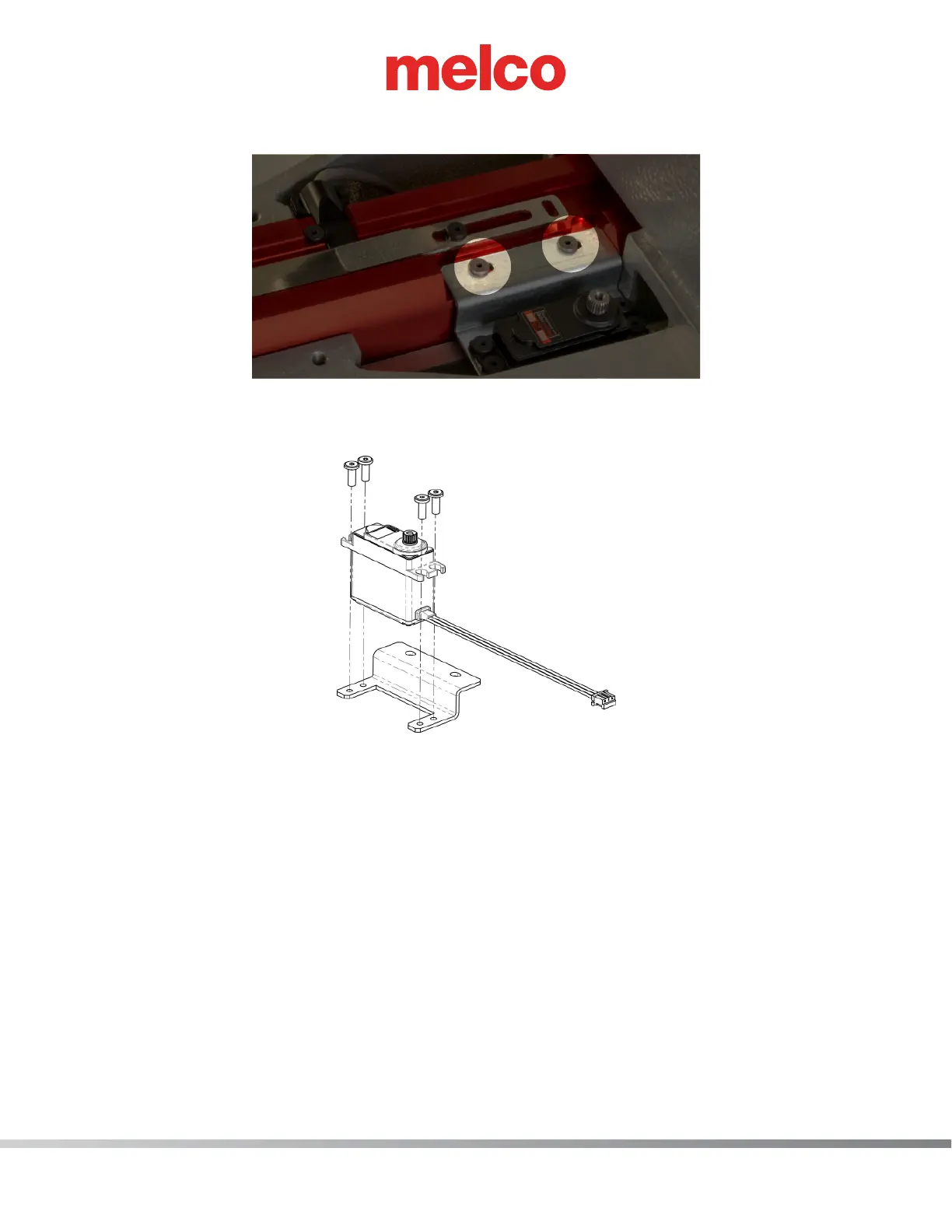

8. Remove the motor bracket assembly by removing two (2) M3 low head screws.
9. Remove the motor from the bracket by removing the four (4) M3 low head screws. There are two
on either side of the motor.
10. Attach the new motor onto the bracket and secure with the same four screws removed in the
previous step.
