FOCKE MELER GLUING SOLUTIONS

4-4

MELTER OPERATION

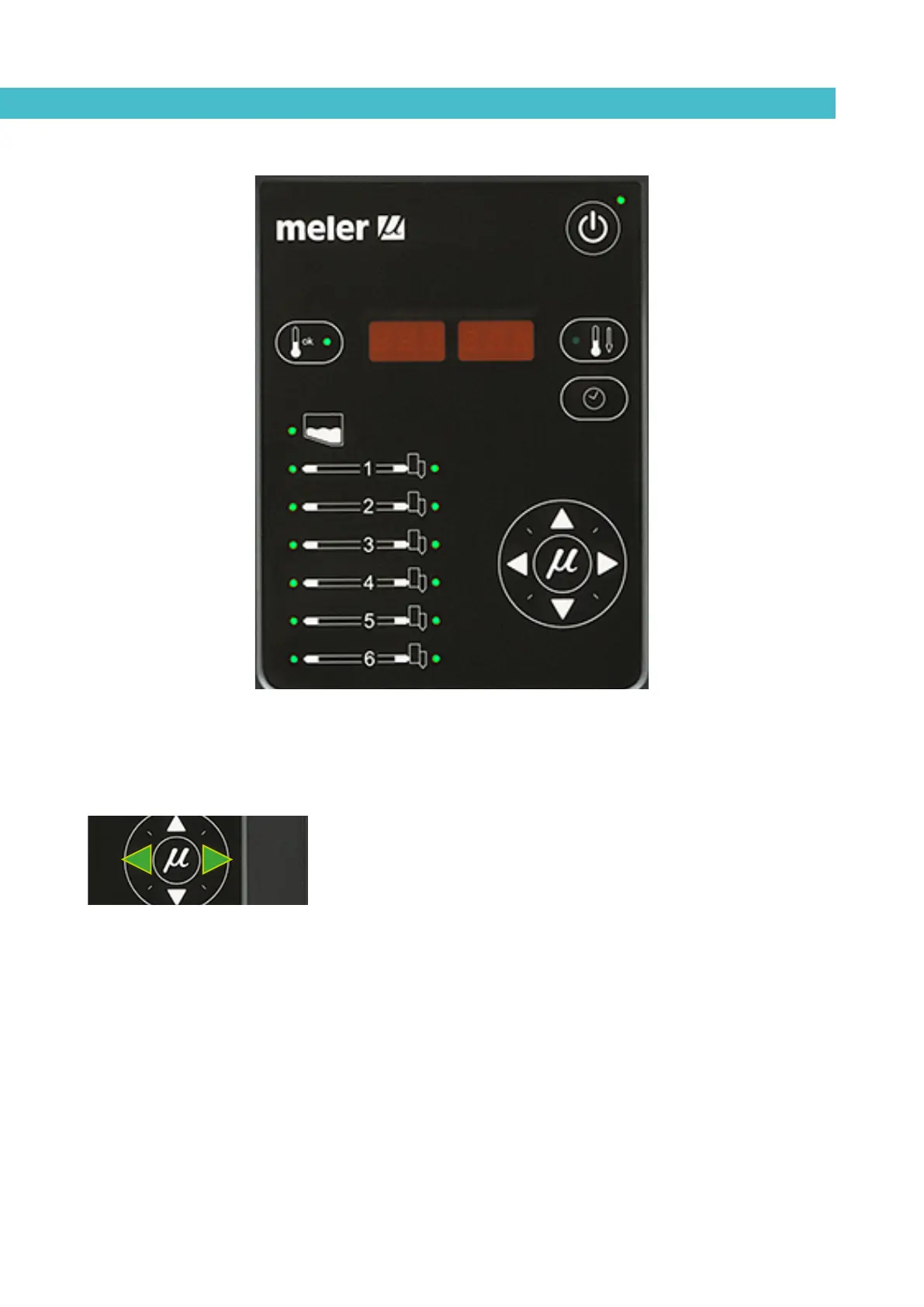

Displaying the temperature for each component

The temperature may be displayed for each component (premelter, tank,

distributor and each hose and applicator) by selecting the component with the

cursor.

Press the left-right arrow until the desired component is displayed.

After 10 seconds, the display will return to the default component (the tank).

If you wish to keep the component displayed permanently, press and hold the

left-right arrow for 2 seconds while selecting the chosen element.

For units that have one pump installed, the display sequence is the following:

premelter<—tank<—distributor1<—...<—distributor4<—hose1<—applicator1<—hose4<—

applicator4

premelter—>tank—>distributor1—>...—>distributor4—>hose1—>applicator1—>hose4—

>applicator4

To remove a component from permanent display, simply press either of the

left-right arrows.
