FOCKE MELER GLUING SOLUTIONS
9-2
SPARE PARTS LIST

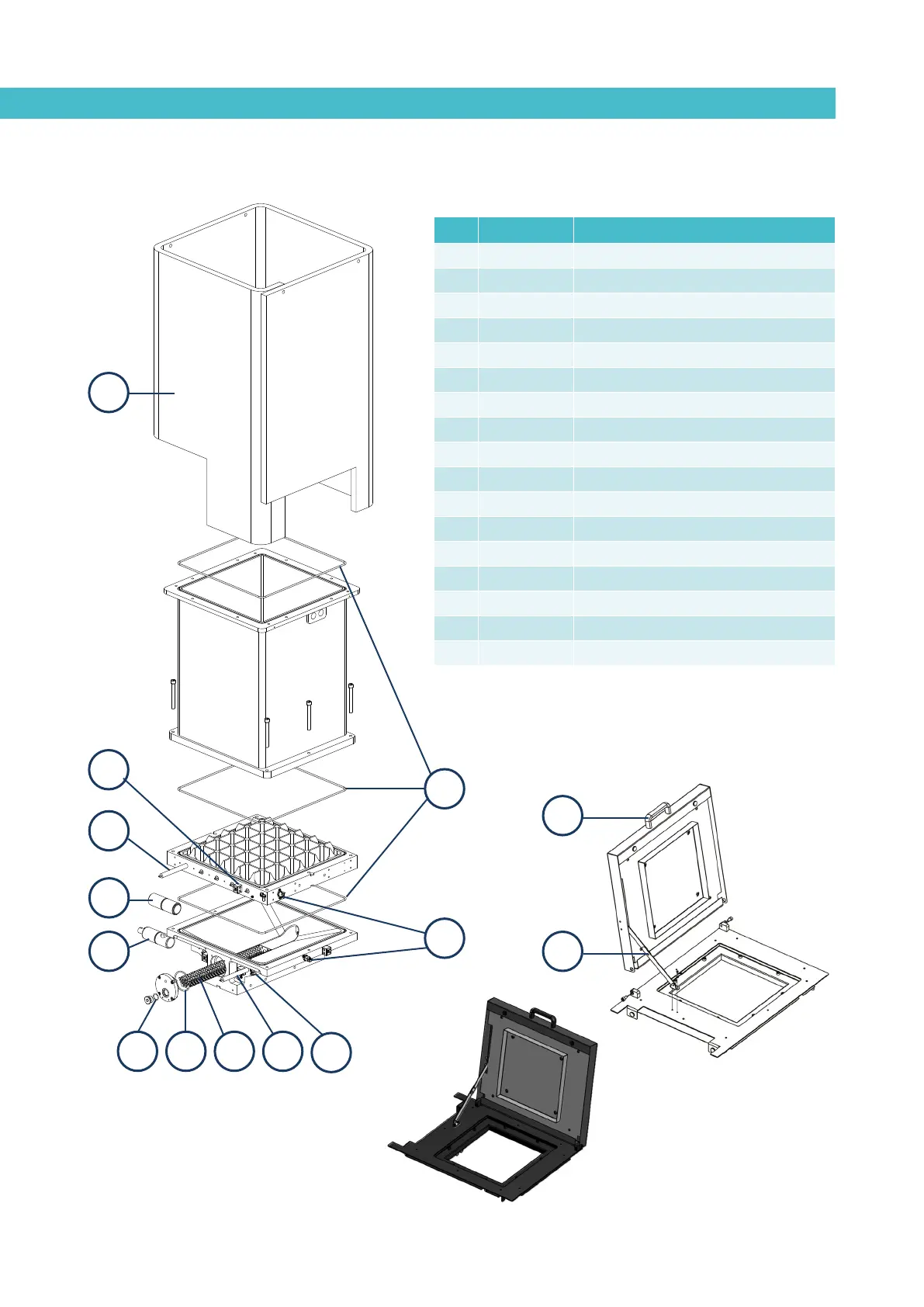

A. COVER- TANK ASSEMBLY
Nº Ref. Description
1 150027980 Hopper tank grid
2 150027990 O-ring 54x3
3 150028000 Heating element 12.5x250 300W
4 150028010 Heating element 12.5x350 900W
5 10030007 Current connection strip
6 150028200 Tank seal (50l)
6 150028210 Tank seal (120l)
7 150114620 Safety thermostat 230 ºC
8 150028030 Tank insulation mantle (50l)
8 150118100 Tank insulation mantle (120l)
9 150010130 O-ring Ø16x2
10 10020011 Sensor Pt100
10 150117560 Sensor Ni120
11 150028230 Tank isolation blind valve o-ring
12 150025460 Tank isolation valve o-ring
13 150028110 Fixing handle 117mm
14 150028120 Left hinge 150x150
14
13
VALIDADO/COMFIRM
DIBUJADO/DESIGN
NOMBRE/NAME
FECHA/DATE
TITULO/TITLE
ESCALA/SCALE
REFERENCIA/ REFERENCE
DENOMINACION/DENOMINATION
HOJA Nº/
SHEET NUMBER
S.R.C.
02/09/2015
201050040-CTO
DEPOSITO
CONJUNTO DEPOSITO TERMOSTATO REARMABLE
MACRO 50
1 de 1
Este plano es propiedad exclusiva de MELER APLICADORES DE HOT - MELT S.A. Todos los derechos reservados.
This drawing is owned sole of MELER APLICADORES DE HOT- MELT S.A. All rights reserved.
DPTO. OFICINA TECNICA
1 32
6
7
5
4
8
9
12
10
11
