Meler Macro Series - Filter and Pressure Valve Assembly Parts

FOCKE MELER GLUING SOLUTIONS
9-4
SPARE PARTS LIST
Nº Ref. Description
1 150026260 Mechanical pressure valve assembly
2 150026270 Pneumatic pressure valve assembly (*)
3 150026280 Mechanical pressure valve o-rings
4 150026290 Mechanical pressure valve spring
5 150026060 Pressure valve closure needle
6 150026300 Pneumatic pressure valve o-rings (*)
7 150029250 Distributor filter cartridge
8 150029240 Distributor filter assembly
9 150025260 Distributor filter body with o-ring
10 150025270 Distributor filter body o-ring
11 150029260 Distributor filter o-ring
- 10110030 Pressure gauge
- 10220031 Pressure regulator
(*) Optional

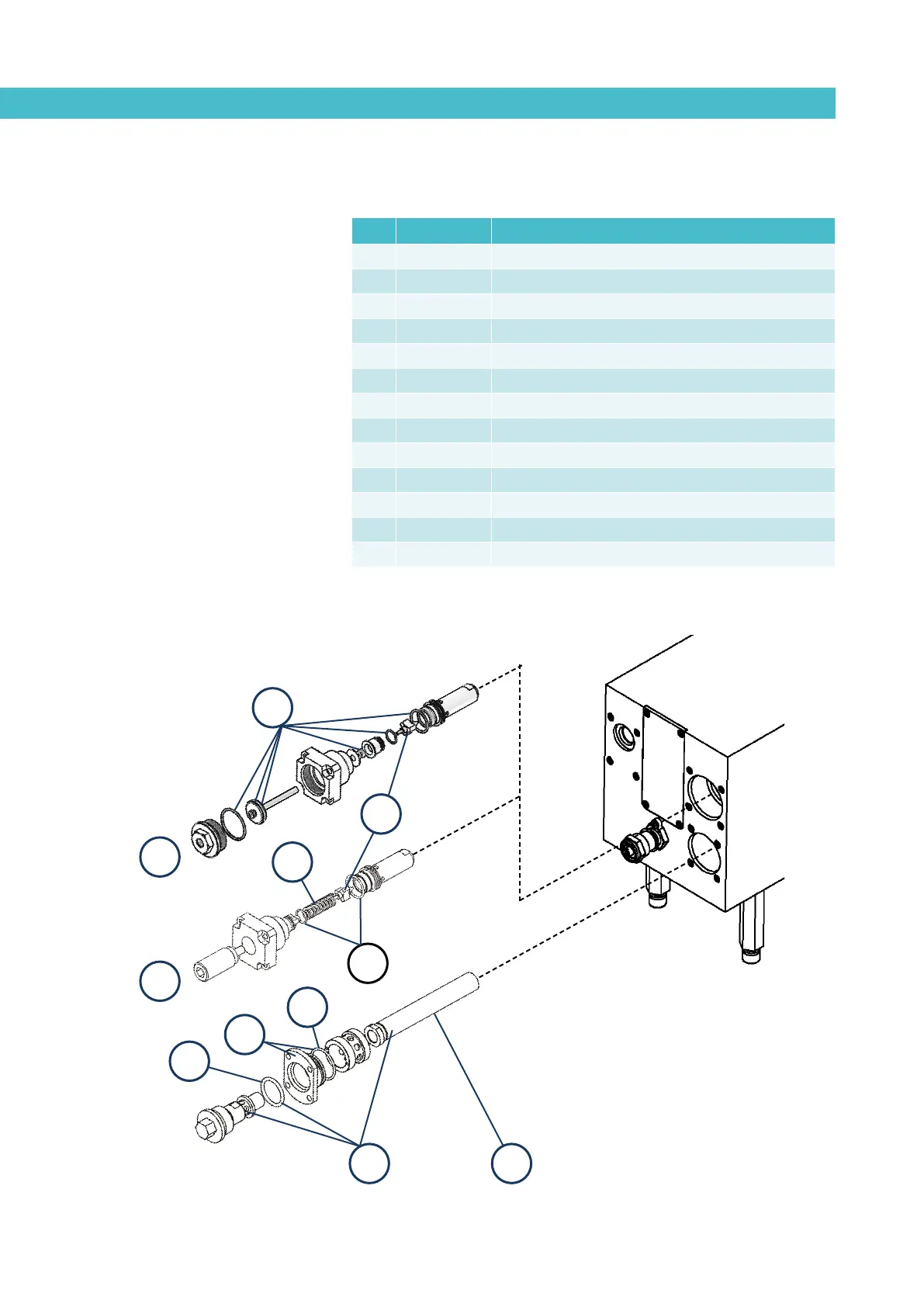

C. FILTER AND PRESSURE VALVE ASSEMBLY
2
1
4
3
5
6
9
8 7
10
11
