Meler Macro Series - Distributor Assembly Parts

SPARE PARTS LIST
9-3
MA-5052-ENG MACRO SERIES MELTER MANUAL

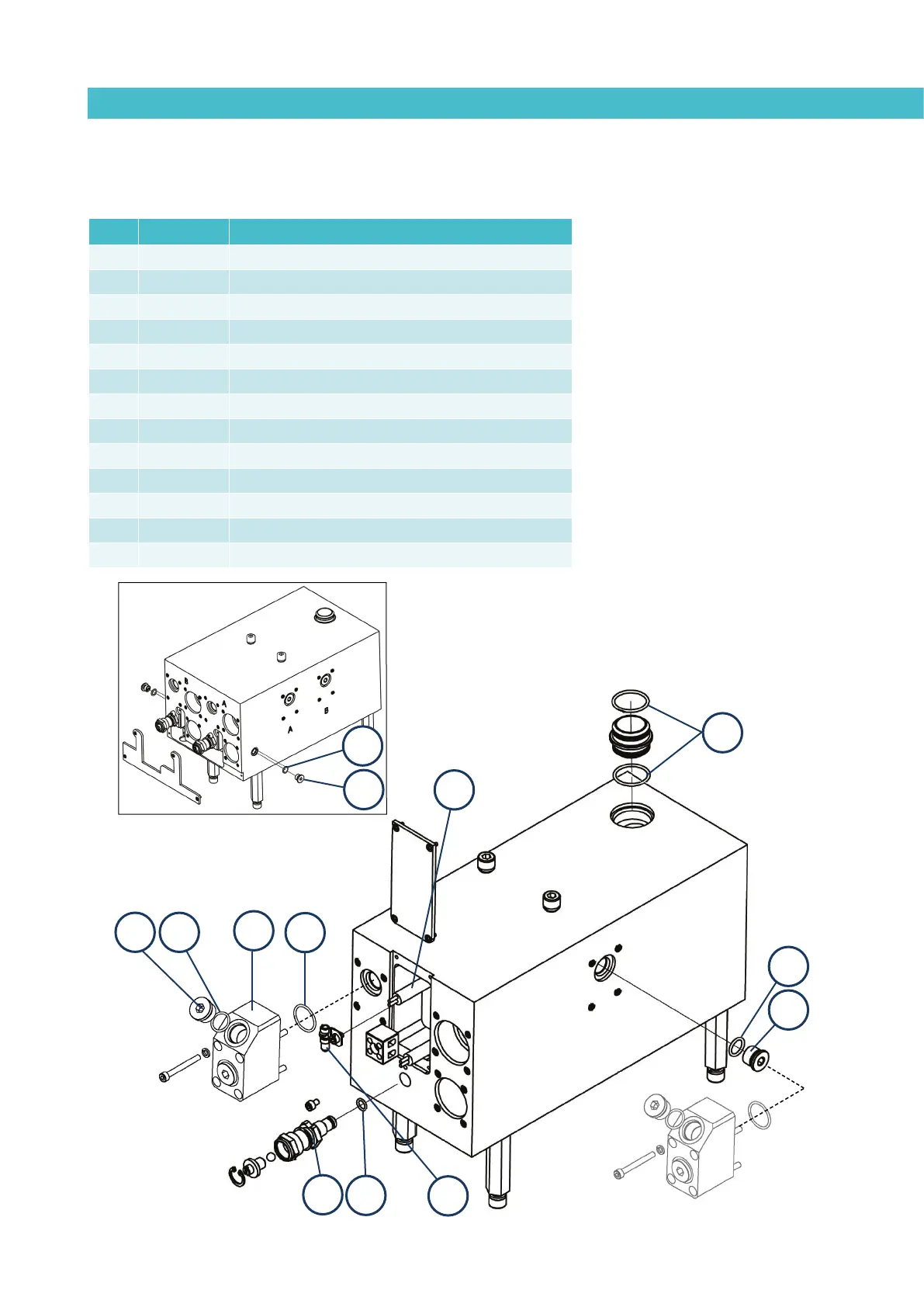

B. SIMPLE/ DOUBLE DISTRIBUTOR ASSEMBLY
Nº Ref. Description
1 150027950 Complete two 3/4” hydraulic outputs block
2 150023950 O-ring Ø24x2
3 10100082 Pump plug with o-ring
3.1 10100083 Pump plug o-ring
4 150027960 Pump 3/4” plug with o-ring
4.1 150041920 Pump 3/4” plug o-ring
5 150026330 Complete purge valve
5.1 150026340 Purge valve o-ring
6 10120095 Plug with o-ring compensation valve
6.1 10120096 O-ring plug compensation valve
7 150027970 Heating element 3/8 x 254 630W
8 10020011 Sensor Ni-100
8 150117560 Sensor Ni-120
(optional)
4
1
2
3.1
3
2
4.1
5
5.1
6
6.1
8
7
