Meler Macro Series User Manual

SPARE PARTS LIST
9-5
MA-5052-ENG MACRO SERIES MELTER MANUAL

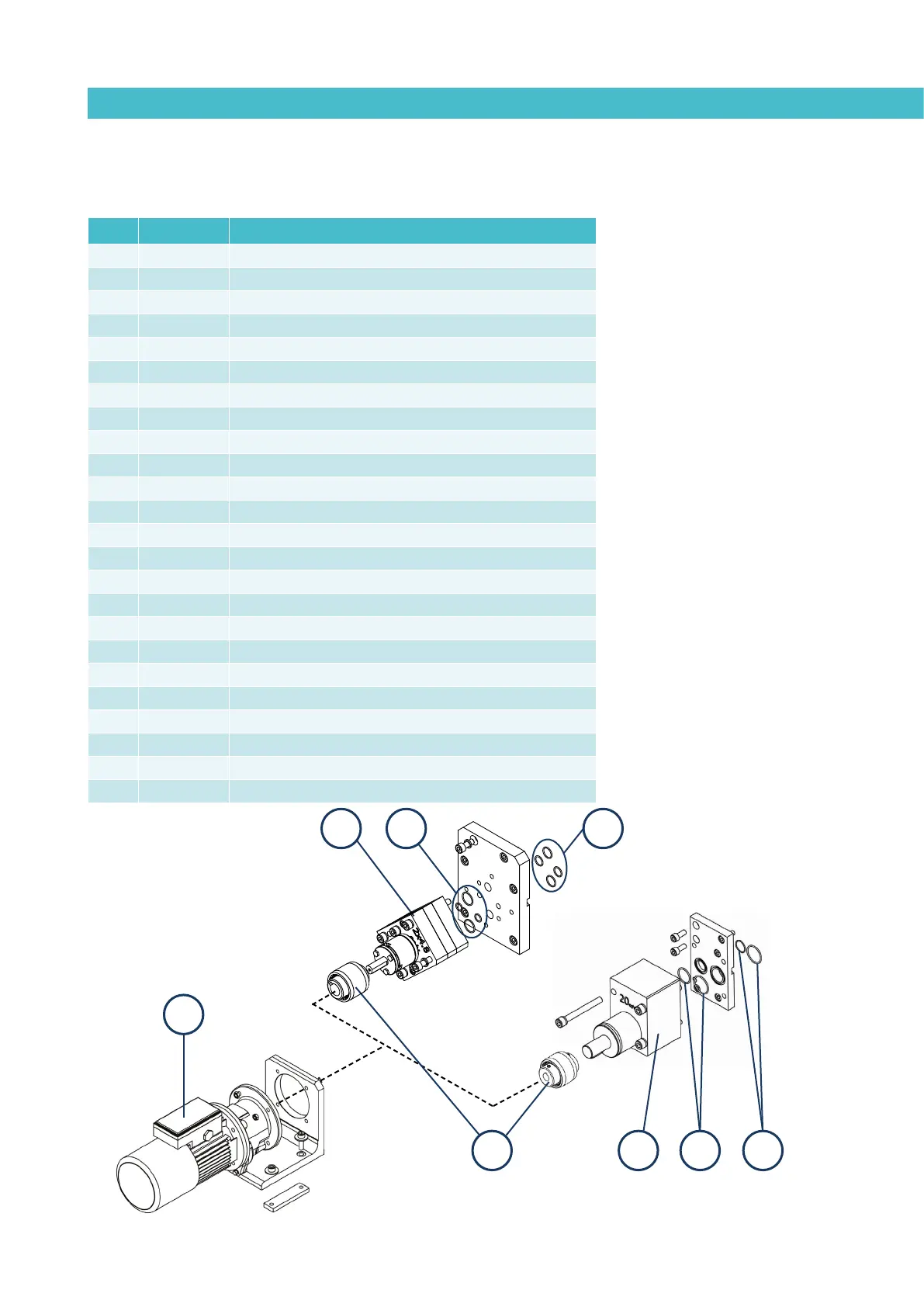

D. GEARED MOTOR-PUMP ASSEMBLY
Nº Ref. Description
1 150025960 Single gear pump 1cc/rev seat Ø79
1 150114020 Single gear pump 2.5cc/rev seat Ø79
1 150025930 Single gear pump 4cc/rev seat Ø79
1 150025970 Single gear pump 8cc/rev (Plate seat Ø79)
1 150026020 Single gear pump 15cc/rev (Plate seat 120x88)
1 150026030 Single gear pump 20cc/rev (Plate seat 120x88)
1 150110870 Single gear pump 30cc/rev (Plate seat 120x88)
2 150111860 Double gear pump 2x0.93cc/rev (Plate seat 94x80)
2 150111870 Double gear pump 2x1.86cc/rev (Plate seat 94x80)
2 150111880 Double gear pump 2x3.71cc/rev (Plate seat 94x80)
2 150030050 Double gear pump 2x4.8cc/rev (Plate seat 94x80)
3 150026430 Single pump seat o-rings (Plate seat Ø79)
3 150028050 Single pump seat o-rings, (Plate seat 120x88)
3
150111890
Doublee pump seat o-rings, (Plate seat 94x80)
4 150026440 Single pump-distributor plate seat o-rings (Plate seat Ø79)
4 150028060
Double pump-distributor plate seat o-rings, (Plate seat 120x88)
4 150118120 Double pump-distributor plate seat o-rings, (Plate seat 94x80)
5 R0007217 Single pump motor coupling (1, 2.5, 4, 8 cc/rev)
5 R0007574 Single pump motor coupling (15, 20, 30 cc/rev)
5 150118110 Double pump motor coupling
6 150028080 0,375kW geared motor with booster fan
6 150029700 0,55kW geared motor with booster fan
6 150111330 0,75kW geared motor with booster fan
6 150110880 1,1kW geared motor with booster fan
3
2 4
6
5 41
3
