mensor PCS 400 - Figure 7.1 - Dimensional Outline

Response Time
Less than 0.2 seconds for FS step with no digital
filtering.
Orientation Effects
Negligible effect on span, linearity and zero in
any attitude.
Shock/Vibration
2 gravities max. for 10 minutes, per MIL-T-
28800.
Pressure Media
Clean, dry, non-corrosive gases, no oxygen.
Operating Environment
Humidity: 5% to 95% RH non-condensing.
0-600 PSID
5.25"
(13.34 cm)
.86"
(2.18 cm)
17.05" (43.31 cm)
19.00" (48.26 cm)
6.97"
(17.70 cm)
20.0" (50.80 cm)
Front View
Side View
Add 0.45 inches (1.14 cm) to height with feet attached.
Overall width with Rack Mount Flanges attached.
2nd
F1
F2 F3
1
0
=
5
_
3
.
7
2
9
6
4
8CE
METRIC ENG GPIB SERIAL
CAL TEST LIMITS HELP
STBY CONT VENTMEAS
UNITS COMM
PRESSURE CALIBRATION SYSTEM

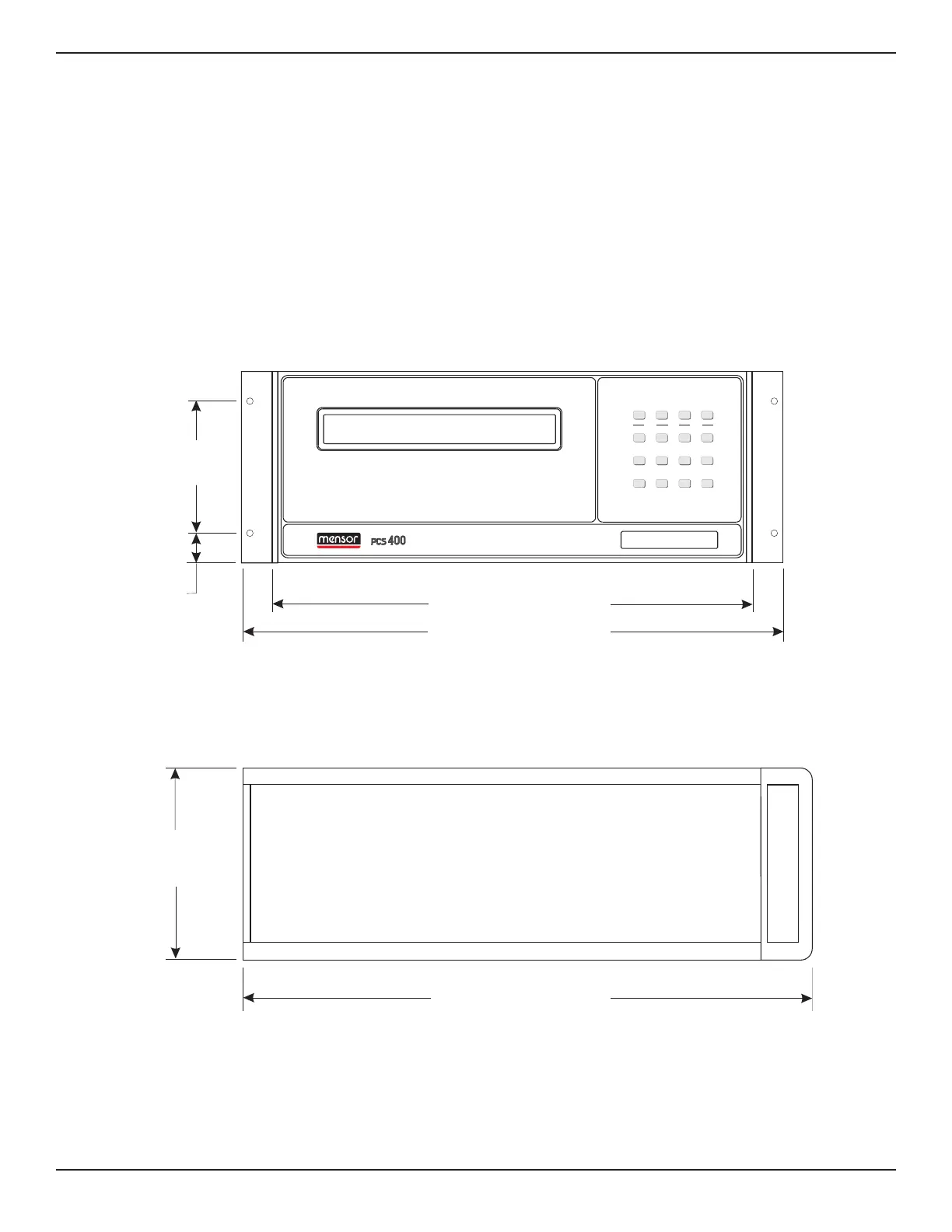

Figure 7.1 - Dimensional Outline
PCS 400 SPECIFICATIONS
www.mensor.com 7-3
