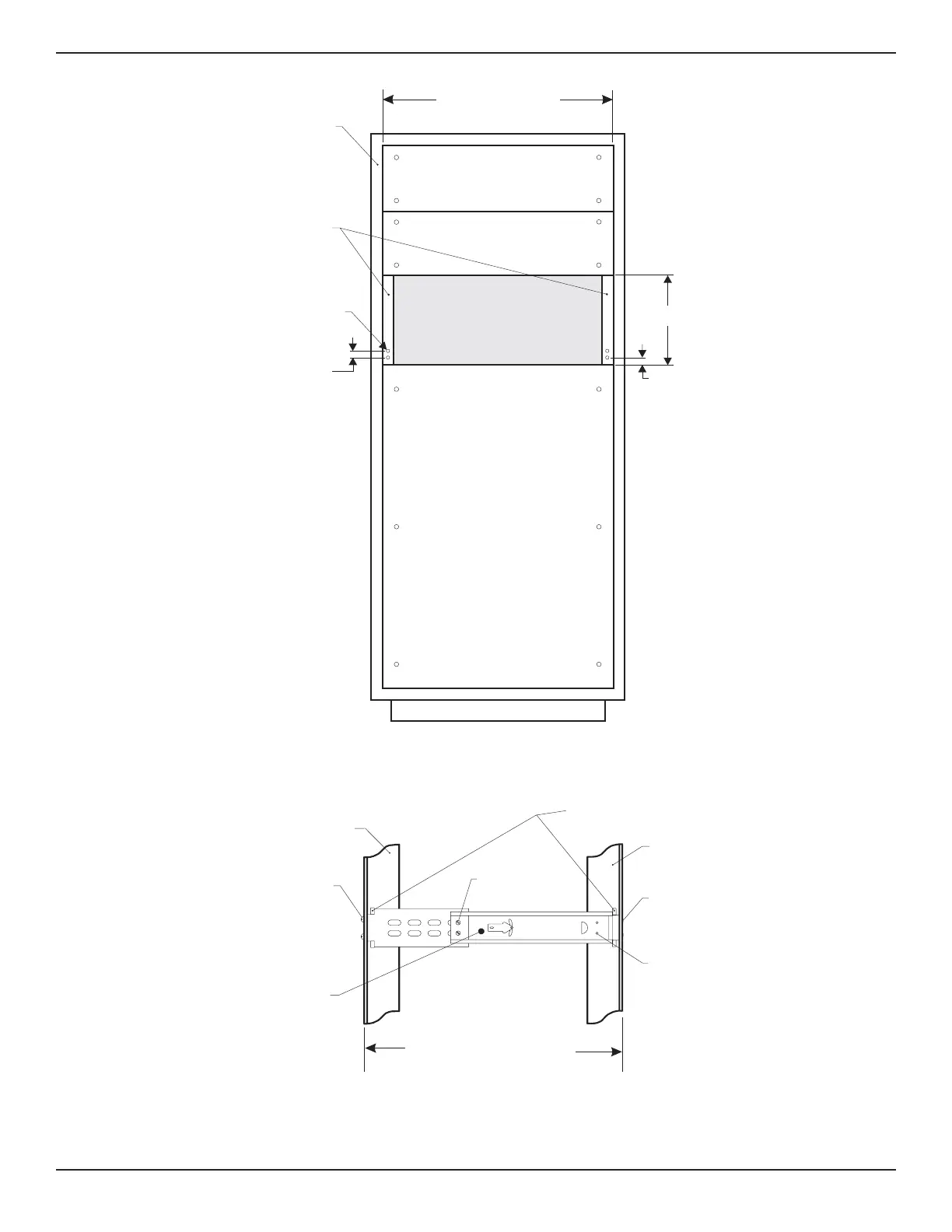

mensor PCS 400 - Figure 8.2 - Rack Specifications; Figure 8.3 - Slide Specifications

2" (5.08 cm)
5/8" (1.59 cm)
slide member
mounting holes
Rack with standard retma
mounting hole pattern
VENTILATION:
Provide 1.75 inches (one retma
space, 4.45 cm) above and below
the instrument inside the rack.
6-31/32" (17.70 cm)
Countersink 4 holes on
front for #10 Flat Head
screws
Vertical mounting rails
7" (17.78 cm) high
instrument opening
19" (48.26 cm)
Rack width
Figure 8.2 - Rack Specifications
Rack rear vertical
Rack front vertical
#10-32 x 1/2"
Pan Head
(2 places)
Threaded Retaining Plate
#10-32 x 1/2"
Flat Head
(2 per slide)
Pin on inner slide
must be down
#10-32 x 1/2"
Pan Head
(2 per slide)
Rack Slide member.
Mates with a member
attached to Mensor
instrument.
Slide depth 22" to 25"
(55.88 cm to 63.50 cm)
with bracket provided
Figure 8.3 - Slide Specifications
PCS 400 OPTIONS
