Mercury Avator 7.5e User Manual

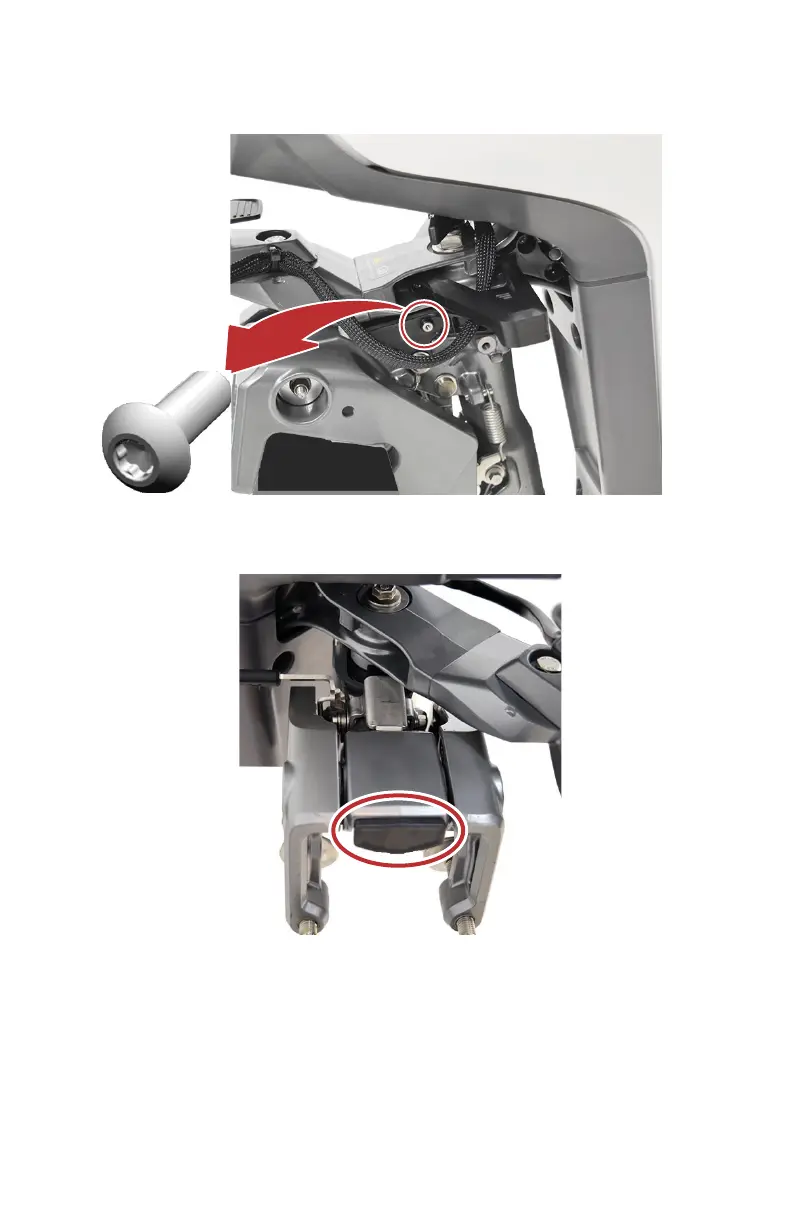

3. Hand tighten the torx screw.
76172
4. Verify the quick‑disconnect is disabled by pulling the slide and attempting
to lift the outboard.
75507
LIFTING THE OUTBOARD
IMPORTANT:Never lift the outboard from the battery handle while the battery
is installed in the outboard. Injury or product damage/loss could result.
1.
Remove the battery from the outboard. Refer to Battery Removal.
IMPORTANT:The tiller handle must be locked in the operating position or the
folded up position.
INSTALLATION
eng 41 

Mercury Avator 7.5e Specifications

General

Power Source	Electric
Control	Tiller
Mounting	Transom
Operating Voltage	48V
Power	750W
Engine Type	Electric motor
Run Time	Up to 1 hour at full throttle
Propeller	3-blade
Warranty	2 years
Shaft Length	Short
