Mercury Avator 7.5e User Manual

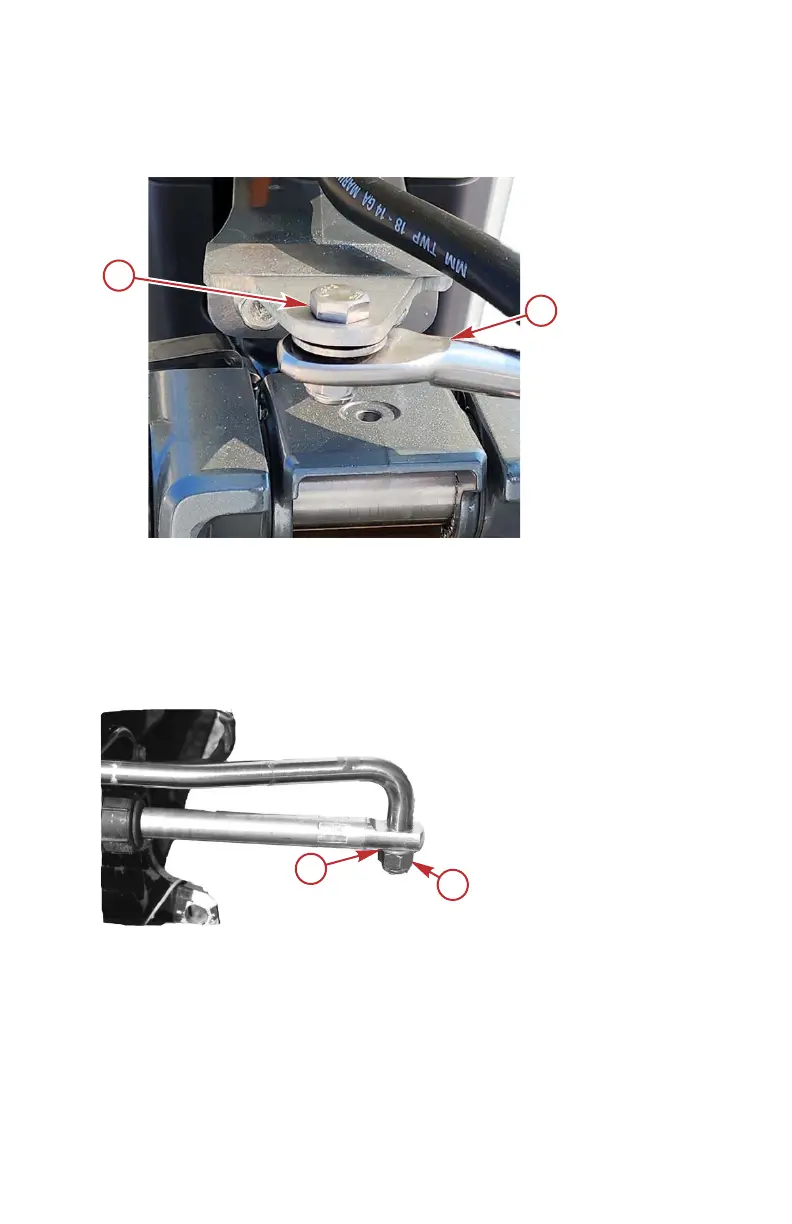

1. Install the steering link rod onto the steering bracket threaded hole with
the link rod screw, two washers, spacer, and a locknut. Do not tighten the
link rod screw or the locknut.
a - Screw
b - Steering link rod
2. Install the loose end of the steering link onto the steering cable and
secure with a washer and locknut. Tighten the locknut securely and then
back the nut off 1/4 turn.
a - Washer
b - Locknut
75676
a
b
a
b
59499
INSTALLATION
eng 45 

Mercury Avator 7.5e Specifications

General

Power Source	Electric
Control	Tiller
Mounting	Transom
Operating Voltage	48V
Power	750W
Engine Type	Electric motor
Run Time	Up to 1 hour at full throttle
Propeller	3-blade
Warranty	2 years
Shaft Length	Short
