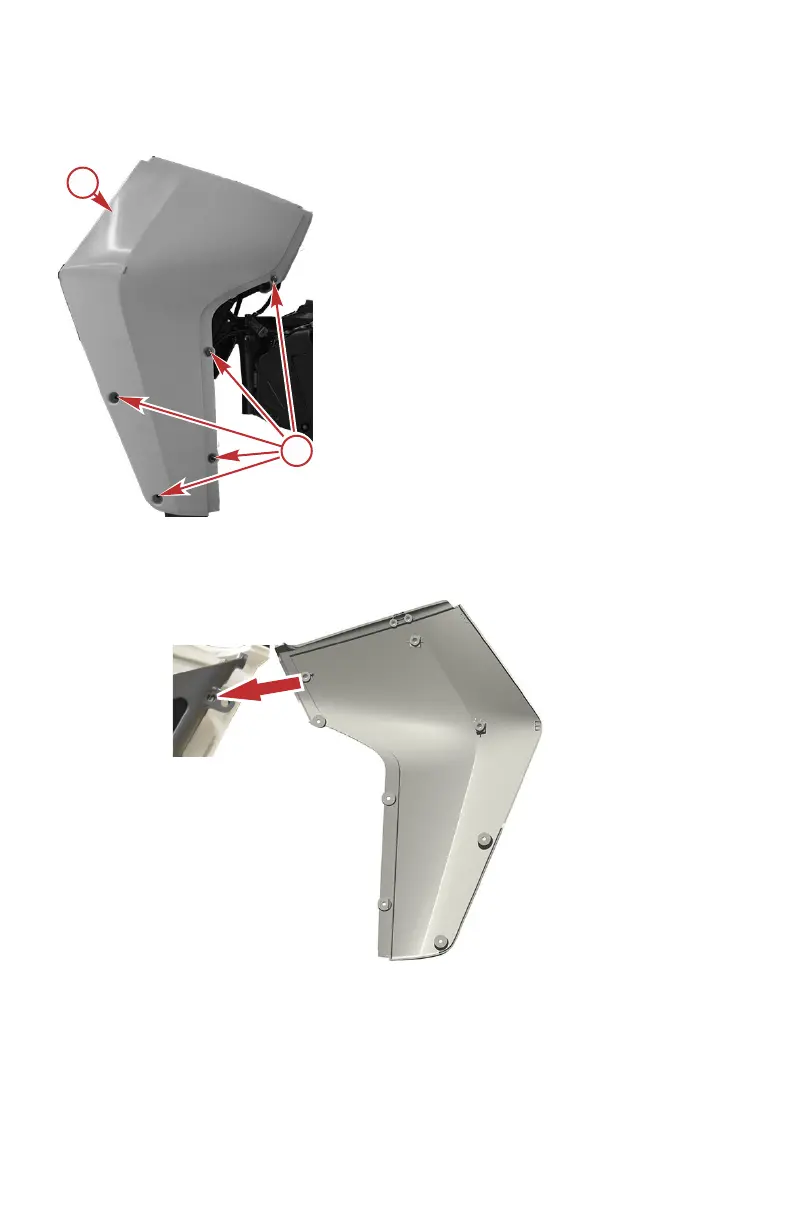

3. Remove the five hex head screws and the starboard cowl panel from the
outboard.
a - Starboard cowl panel
b - Hex head screws (5)
STARBOARD COWL PANEL INSTALLATION
1. Align the starboard cowl panel pin with the outboard pin hole.
76067
2. Install the starboard cowl panel on the outboard with the five hex head
screws.
b
a
76051
INSTALLATION
 50 eng
