Mercury Avator 7.5e User Manual

IMPORTANT:Make sure that any wiring harnesses are not pinched between
the screws and the outboard.

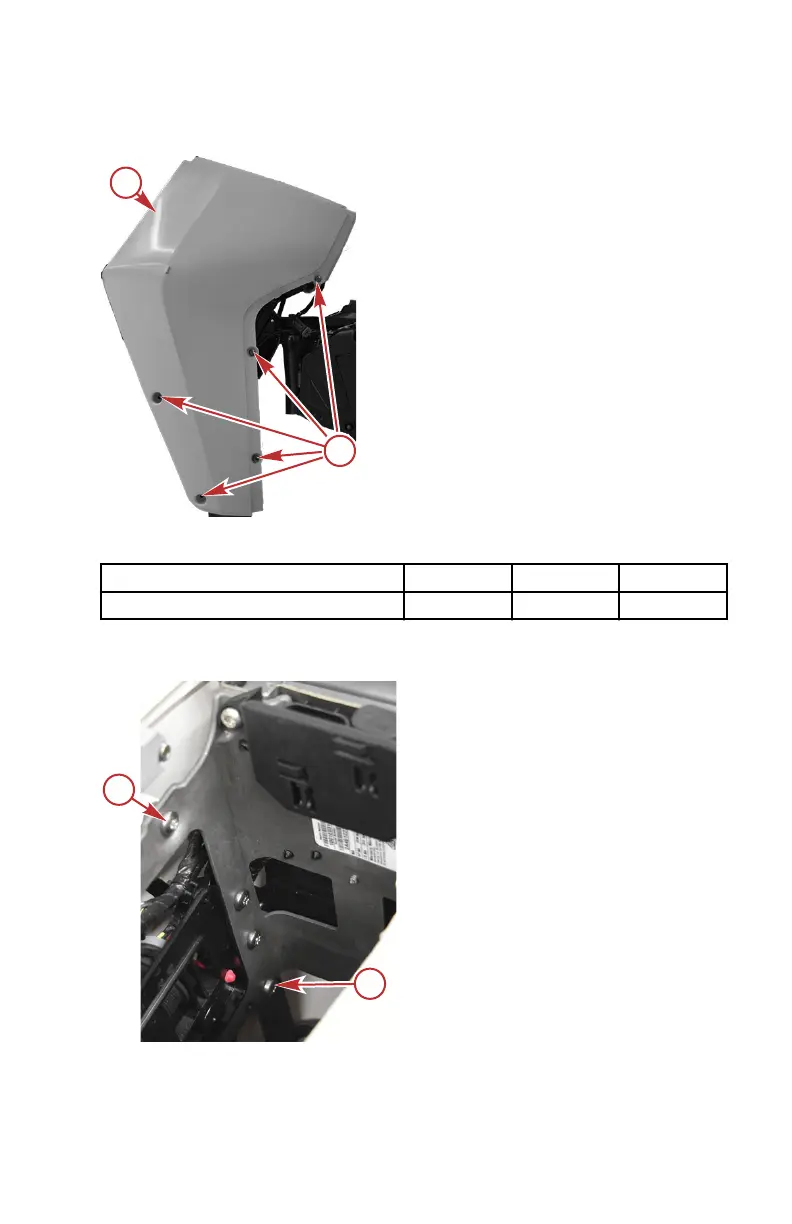

a - Starboard cowl panel
b - Hex head screws (5)
3. Tighten the screws to the specified torque.
Description
Nm lb‑in. lb‑ft
Screws 3.3 29 –
4. Secure the starboard cowl panel on the outboard with the top short torx
and the bottom long torx screw.
a - Top short torx screw
b - Bottom long torx screw
5. Tighten the top short torx screw and the bottom long torx screw to the
specified torque.
b
a
76051
a
b
76047
INSTALLATION
eng 51 

Mercury Avator 7.5e Specifications

General

Power Source	Electric
Control	Tiller
Mounting	Transom
Operating Voltage	48V
Power	750W
Engine Type	Electric motor
Run Time	Up to 1 hour at full throttle
Propeller	3-blade
Warranty	2 years
Shaft Length	Short
