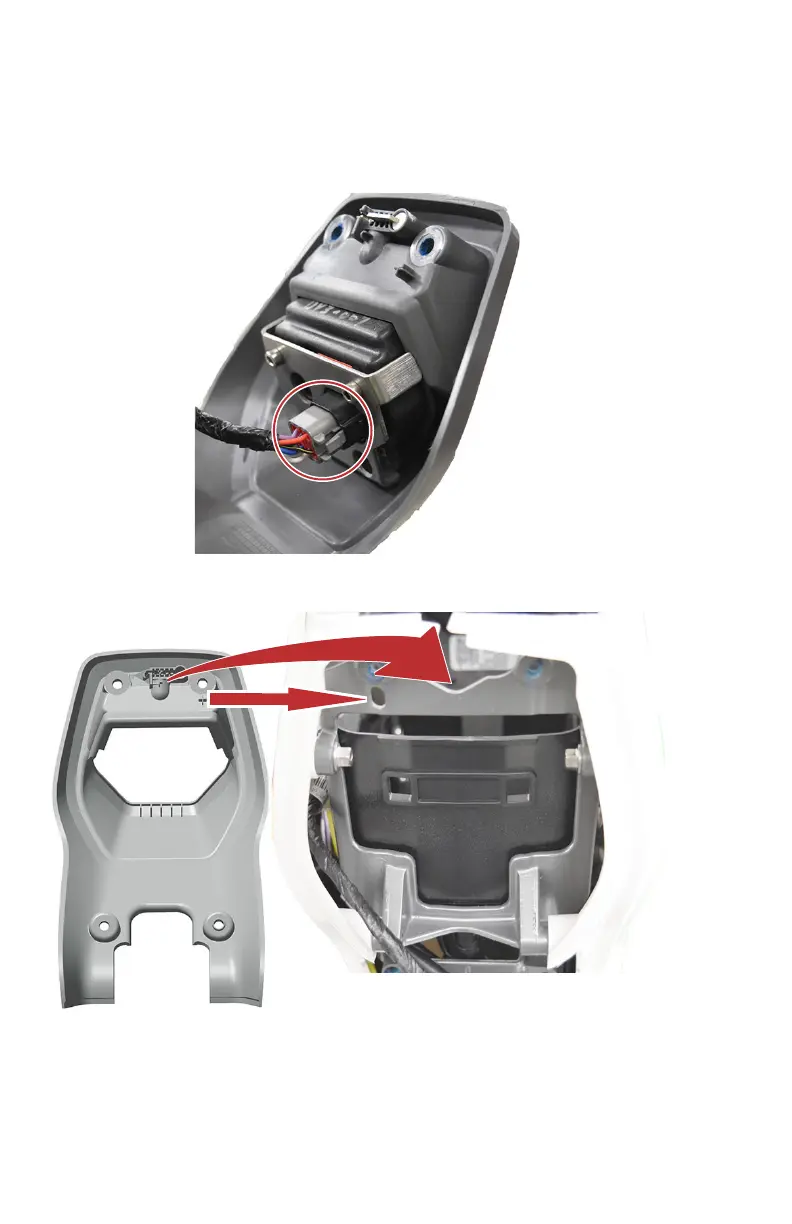

FRONT COWL UPPER PANEL INSTALLATION
1.
Tiller models only: connect the connector from the front cowl upper
panel.
76044
2. Align the front cowl upper panel pins to the outboard.
76068
Tiller model shown, other models similar.
INSTALLATION
 54 eng

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercury Avator 7.5e and is the answer not in the manual?

Mercury Avator 7.5e Specifications

General IconGeneral
Power SourceElectric
ControlTiller
MountingTransom
Operating Voltage48V
Power750W
Engine TypeElectric motor
Run TimeUp to 1 hour at full throttle
Propeller3-blade
Warranty2 years
Shaft LengthShort
