Mercusys MR50G User Manual

06
Chapter 3 Quick Installation Guide

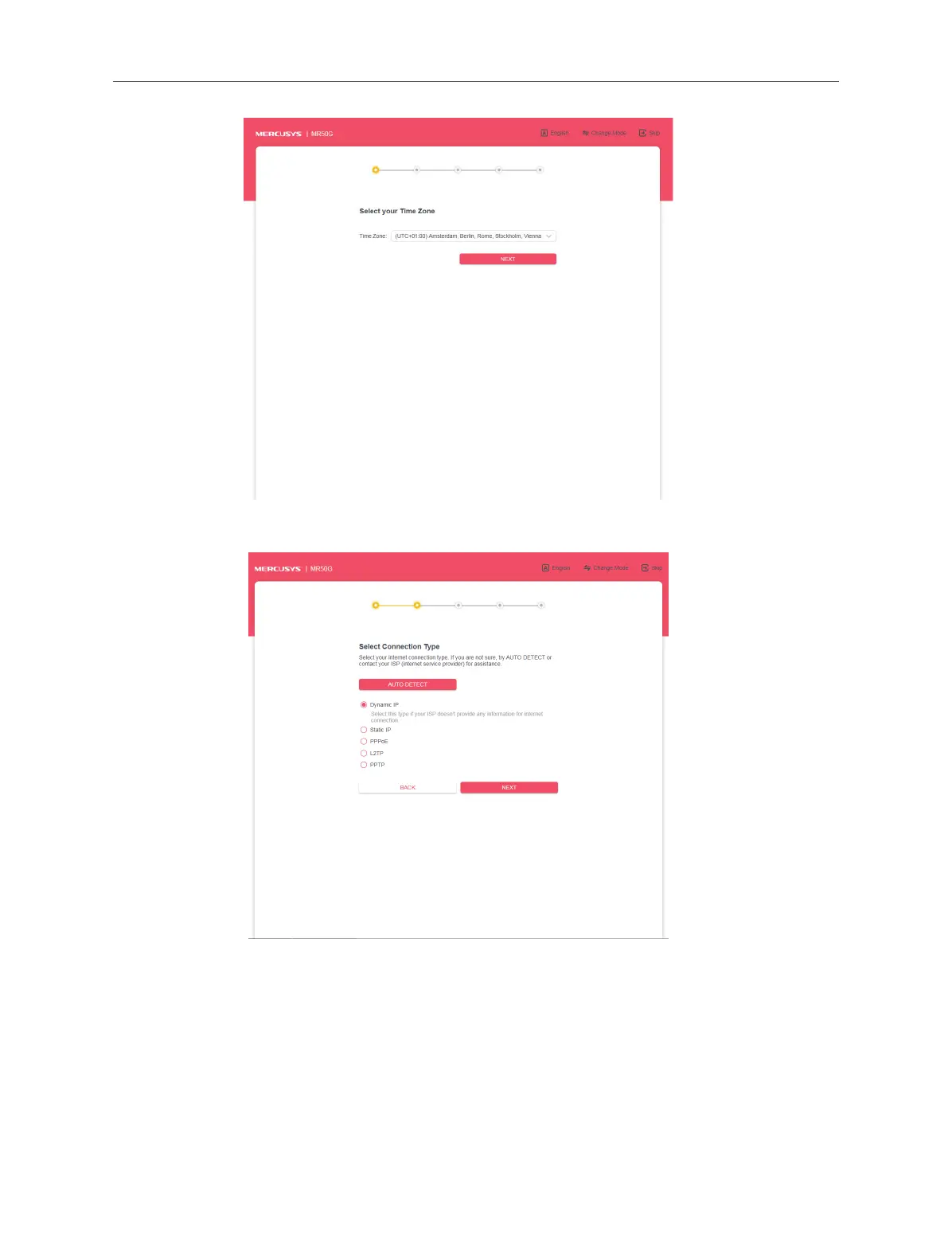

4. Select your internet connection type from the drop-down list.
Note: If you are unsure of what your connection type is, click Auto Detect. Since dierent connection types require
dierent cables and connection information, you can also refer to the demonstrations in Step 4 to determine your
connection type.
5. Follow the instructions on the page to continue the conguration. Parameters on
the gures are just used for demonstration.
1) If your ISP doesn't provide any information for internet connection, choose

Mercusys MR50G Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1900 Mbit/s
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	1300 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (2.4 GHz)	1
Product type	Portable router
Product color	Black
Firewall security	IP and MAC Address Binding
Security algorithms	WPA-PSK, WPA2-PSK
Antennas quantity	6
Output current	1 A
Output voltage	12 V
Power source type	AC
Cables included	AC, LAN (RJ-45)
Package depth	267.5 mm
Package width	349.5 mm
Package height	80.5 mm
Package weight	760 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	157.2 mm
Width	175.6 mm
Height	45 mm
