Mercusys MR50G User Manual

31
Chapter 5 Advanced Conguration

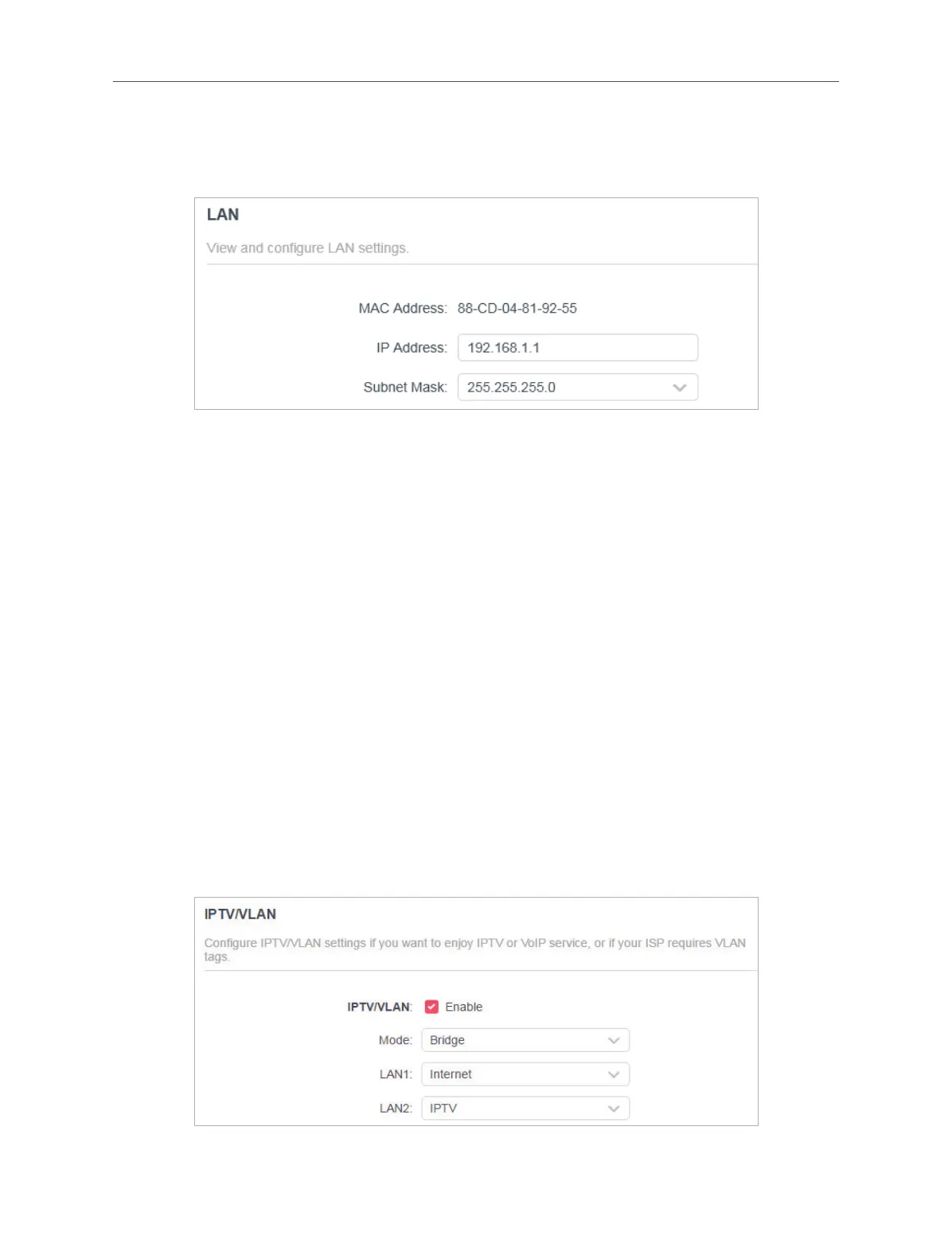

2. Go to Advanced > Network > LAN.
3. Congure the IP parameters of the LAN and click SAVE.
• MAC Address - The physical address of the LAN ports. The value can not be
changed.
• IP Address - Enter the IP address in dotted-decimal notation of your router (the
default one is 192.168.1.1).
• Subnet Mask - An address code that determines the size of the network. Normally
255.255.255.0 is used as the subnet mask.
Note:
• If you have changed the IP address, you must use the new IP address to log in.
• If the new IP address you set is not in the same subnet as the old one, the IP address pool in the DHCP Server will be
congured automatically, but the Virtual Server and DMZ Host will not take eect until they are re-congured.
5. 1. 5. IPTV/VLAN
1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to Advanced > Network > IPTV/VLAN.
3. Congure IPTV/VLAN settings if you want to enjoy IPTV or VoIP service, or if your
ISP requires VLAN tags.
• IPTV/VLAN - Select to enable the IPTV feature.

Mercusys MR50G Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1900 Mbit/s
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	1300 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (2.4 GHz)	1
Product type	Portable router
Product color	Black
Firewall security	IP and MAC Address Binding
Security algorithms	WPA-PSK, WPA2-PSK
Antennas quantity	6
Output current	1 A
Output voltage	12 V
Power source type	AC
Cables included	AC, LAN (RJ-45)
Package depth	267.5 mm
Package width	349.5 mm
Package height	80.5 mm
Package weight	760 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	157.2 mm
Width	175.6 mm
Height	45 mm
