Chapter 1 Introduction
Chapter 1 Introduction
1.1 Product Overview
The router integrates 3-port Switch, Firewall, NAT-Router and Wireless AP. Powered
by 3x3 MIMO technology, the router delivers exceptional range and speed, which
can fully meet the need of Small Oce/Home Oce (SOHO) networks and the users
demanding higher networking performance.
1.2 Product Appearance
Your router may differ in appearance slightly from that depicted because of the
region and product version.
Note: MR50G (EU version) is used for demonstration in this guide.
1.2.1 LED Legend

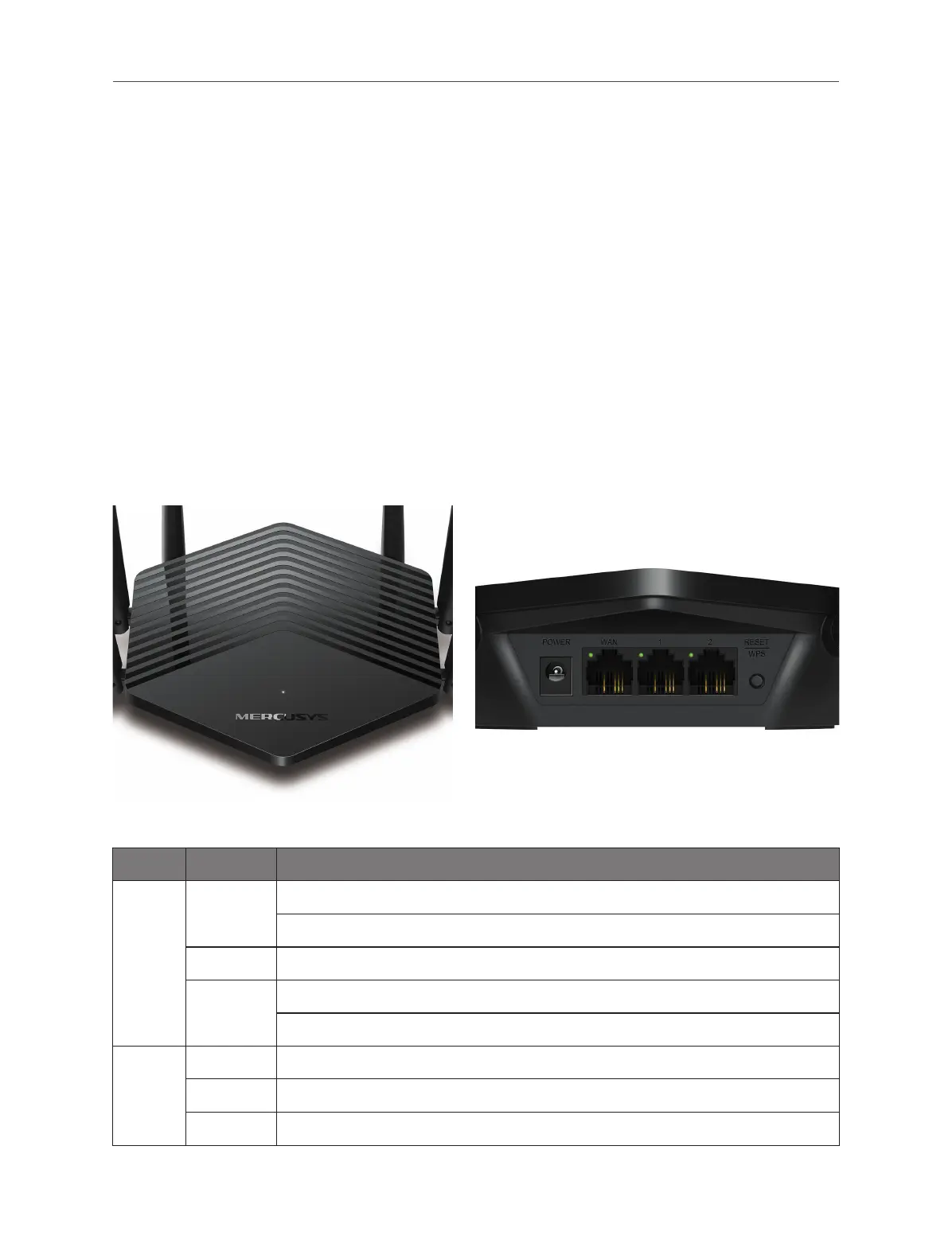

The router’s LEDs are located on the front and rear panel (View from left to right).
Name Status Indication
SYS
On
Orange: The Wireless function is disabled.
Green: The Wireless function is enabled.
O Power is o or the router is not working properly.
Flashing
Orange: The system is starting up or the rmware is being upgraded.
Green: WPS connection is in progress.
WAN
On The WAN port is connected.
O The WAN port is not connected.
Flashing The WAN port is transmitting/receiving data.
