Mercusys MR50G User Manual

19
Chapter 4 Basic Conguration

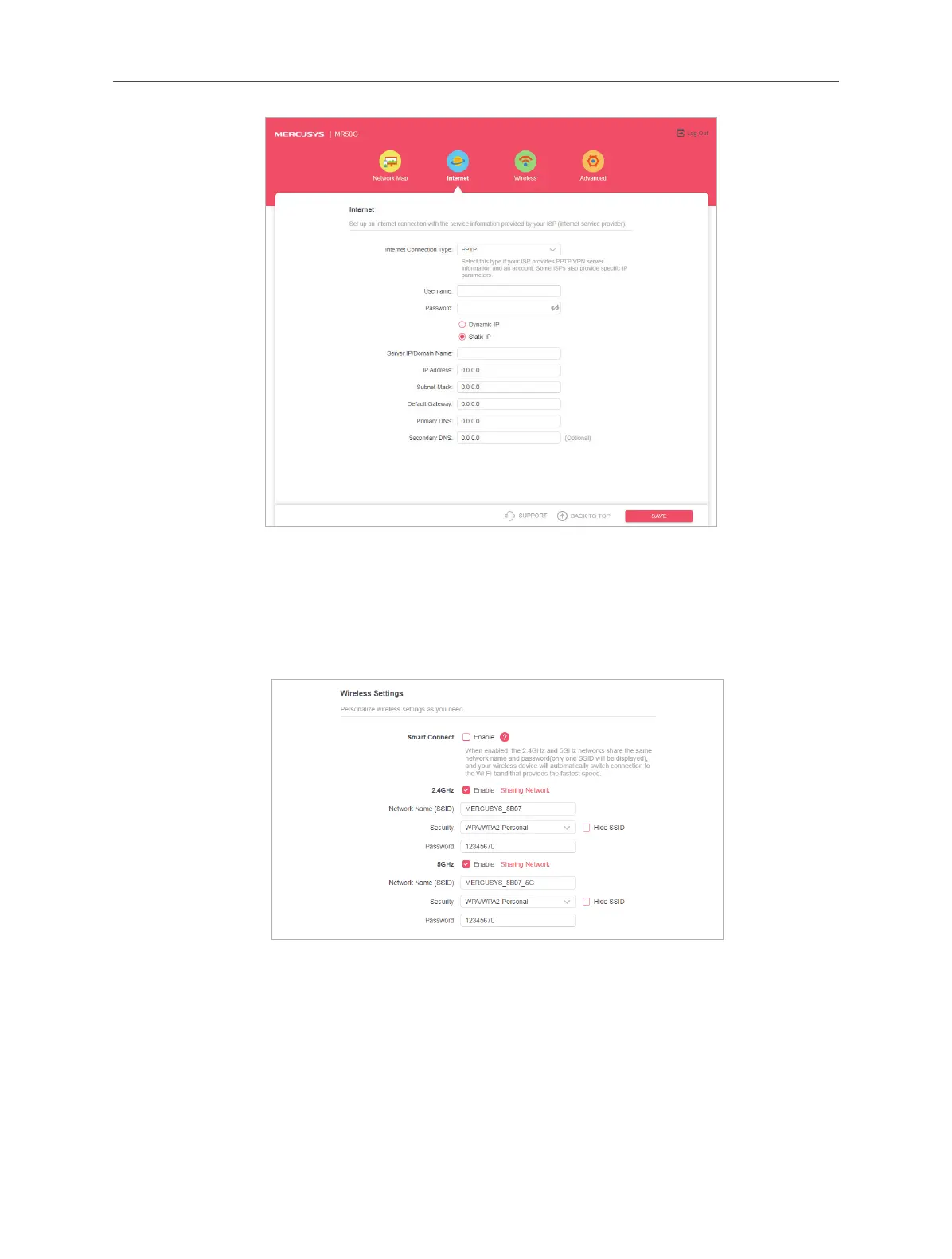

4.3 Wireless
Choose Wireless, and you can change the SSID (network name) and password on
the page.
Ǵ SSID - Enter a value of up to 32 characters. The default SSID is MERCUSYS_XXXX
for 2.4GHz and MERCUSYS_XXXX_5G for 5GHz (XXXX indicates the last unique
four numbers of each router’s MAC address). This eld is case-sensitive.
Ǵ Password - Enter 8-63 characters using a combination of numbers, letters and
symbols. The security version is WPA2-PSK/WPA-PSK, which supports AES
encryption that provides a good level of security.

Mercusys MR50G Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1900 Mbit/s
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	1300 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (2.4 GHz)	1
Product type	Portable router
Product color	Black
Firewall security	IP and MAC Address Binding
Security algorithms	WPA-PSK, WPA2-PSK
Antennas quantity	6
Output current	1 A
Output voltage	12 V
Power source type	AC
Cables included	AC, LAN (RJ-45)
Package depth	267.5 mm
Package width	349.5 mm
Package height	80.5 mm
Package weight	760 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	157.2 mm
Width	175.6 mm
Height	45 mm
