Mercusys MR50G User Manual

57
Chapter 5 Advanced Conguration
5.7 IPv6
This function allows you to enable IPv6 function and set up the parameters of the
router’s Wide Area Network (WAN) and Local Area Network (LAN).
5. 7. 1. IPv6 Status
1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to Advanced > IPv6, and you can view the current IPv6 status information of
the router.

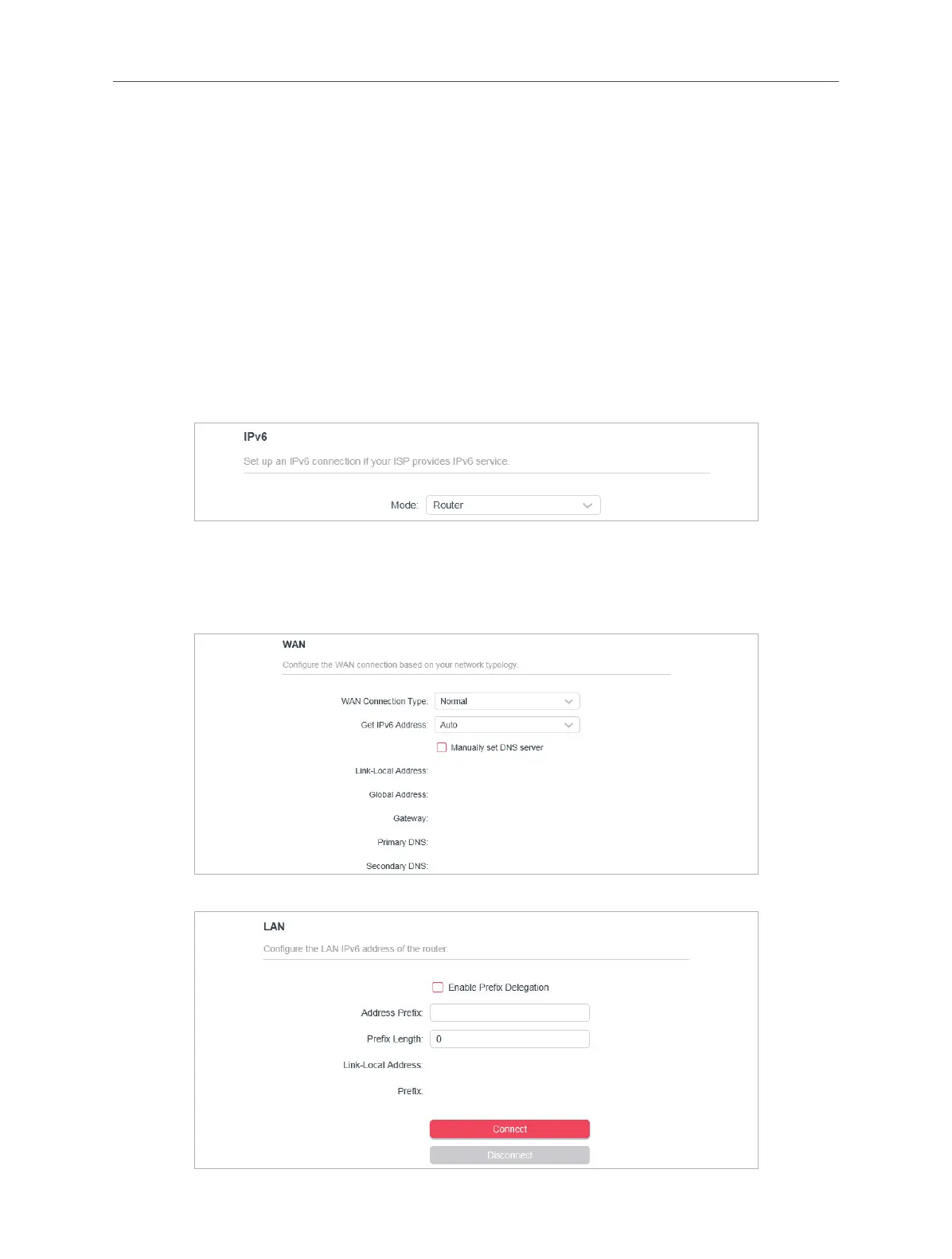

3. Enable IPv6 and select the mode: Router or Pass-Through (Bridge).
• If you select Router:
Fill in WAN and LAN information as required by dierent connection types.
• Normal: The default connection type.
1 ) Congure the WAN settings.
2 ) Congure the LAN settings. Fill in Address Prex provided by your ISP.

Mercusys MR50G Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1900 Mbit/s
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	1300 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (2.4 GHz)	1
Product type	Portable router
Product color	Black
Firewall security	IP and MAC Address Binding
Security algorithms	WPA-PSK, WPA2-PSK
Antennas quantity	6
Output current	1 A
Output voltage	12 V
Power source type	AC
Cables included	AC, LAN (RJ-45)
Package depth	267.5 mm
Package width	349.5 mm
Package height	80.5 mm
Package weight	760 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	157.2 mm
Width	175.6 mm
Height	45 mm
