Mercusys MR50G User Manual

39
Chapter 5 Advanced Conguration
Tick this checkbox if you want to allow the wireless clients on your guest network
to communicate with each other via methods such as network neighbors and
Ping.
• Allow guests to access my local network
Tick this checkbox if you want to allow the wireless clients on your guest network
to communicate with the devices connected to your router’s LAN ports or main
network via methods such as network neighbors and Ping.
4. Click SAVE. Now you can ensure network security and privacy!

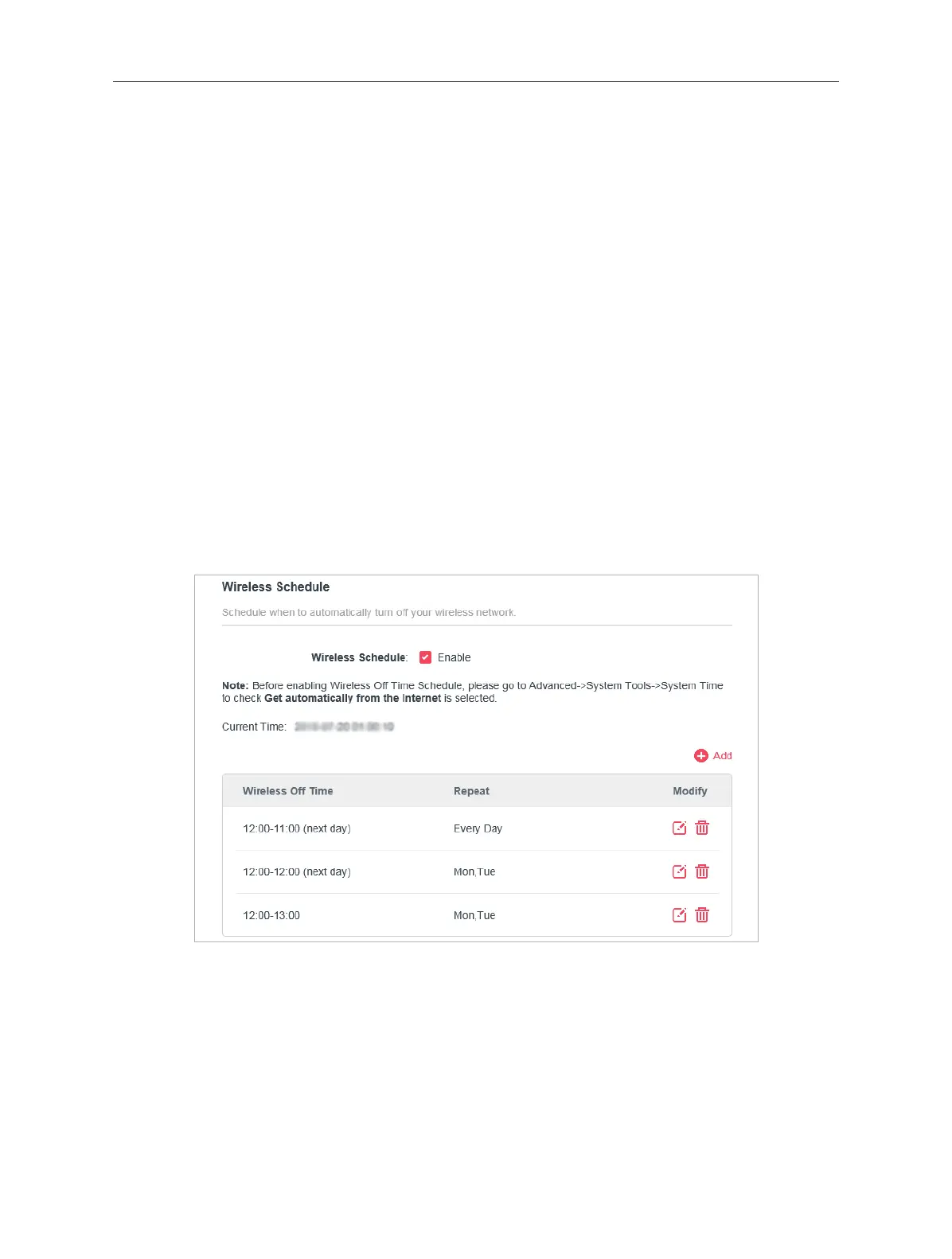

5. 2. 3. Wireless Schedule
The wireless function can be automatically o at a specic time when you do not
need the wireless function.
1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to Advanced > Wireless > Wireless Schedule.
3. Enable the Wireless Schedule function.
4. Click Add to specify a wireless o period during which you need the wireless o
automatically, and click SAVE.

Mercusys MR50G Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1900 Mbit/s
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	1300 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (2.4 GHz)	1
Product type	Portable router
Product color	Black
Firewall security	IP and MAC Address Binding
Security algorithms	WPA-PSK, WPA2-PSK
Antennas quantity	6
Output current	1 A
Output voltage	12 V
Power source type	AC
Cables included	AC, LAN (RJ-45)
Package depth	267.5 mm
Package width	349.5 mm
Package height	80.5 mm
Package weight	760 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	157.2 mm
Width	175.6 mm
Height	45 mm
