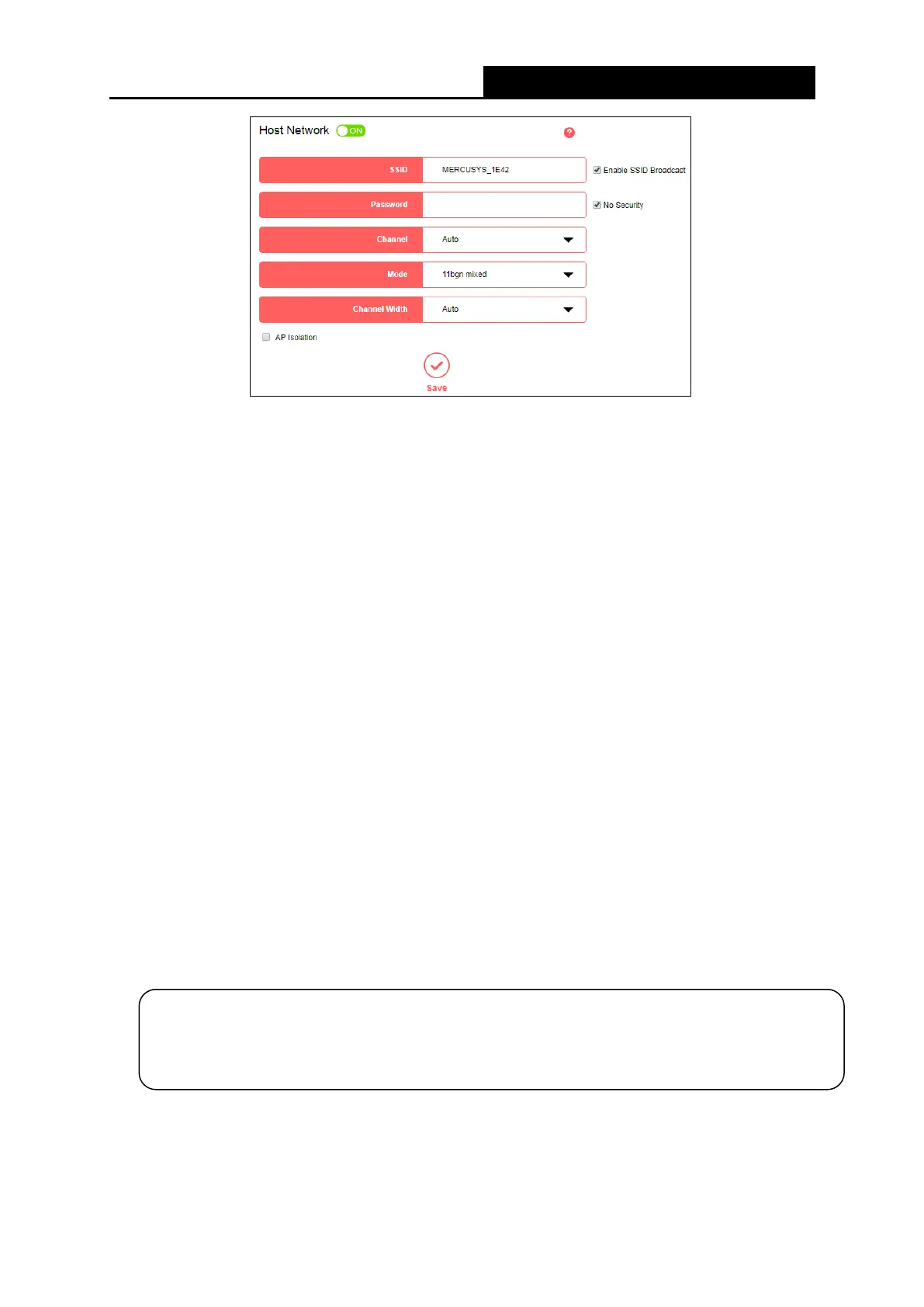

• SSID - Enter a value of up to 32 characters. The default SSID is MERCUSYS_XXXX (XXXX
indicates the last unique four numbers of each router’s MAC address). This field is
case-sensitive.
• Password - Enter 8-63 characters using a combination of numbers, letters and symbols.
The security version is WPA2-PSK/WPA-PSK, which supports AES encryption that
provides a good level of security. If you select No Security, the filed will be left blank.
• Channel - This field determines which operating frequency will be used. The default
channel is set to Auto, so the router will choose the best channel automatically. It is not
necessary to change the wireless channel unless you notice interference problems with
another nearby access point.
• Mode - Select the desired mode.
Select the desired wireless mode. It is strongly recommended to select 11bng mixed,
and all of 802.11b, 802.11g and 802.11n wireless stations can connect to the router.
11bgn mixed - Select if you are using a mix of 802.11b, 11g, and 11n wireless clients.
11n only - Select if you are using only 11n wireless clients.
11bg mixed - Select if you are using both 802.11b and 802.11g wireless clients.
11g only - Select if you are using only 11g wireless clients.
11b only - Select if you are using only 11b wireless clients.
• Channel Width - Select the channel width from the drop-down list. The default setting is
Auto.
NOTE:
If 11bg mixed is selected in the Mode field, the Channel Width
field will turn grey and the value
will become 20M, which is unable to be changed.
- 29 -

Mercusys MW330HP Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Product type	Tabletop router
Product color	Black
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	-90 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	-78 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	-74 dBmW
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	9 V
Power source type	AC
Antenna gain level (max)	7 dBi
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK

Weight and Dimensions

Depth	127 mm
Width	192 mm
Height	36 mm
