Mercusys MW330HP User Manual

MW330HP
300Mbps High Power Wireless N Router

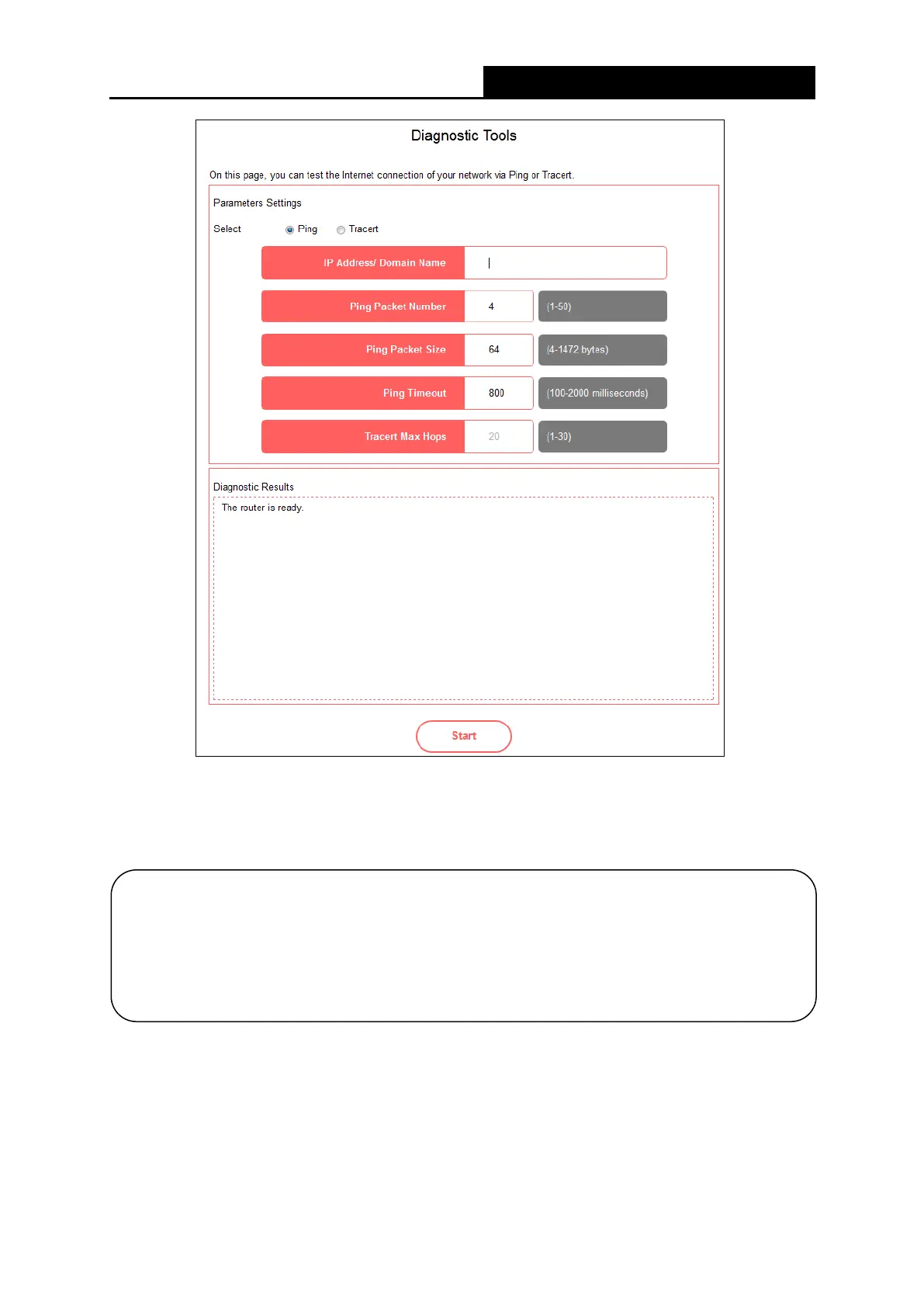

• Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution to
a given host or gateway.
• Tracert - This diagnostic tool tests the performance of a connection.
• IP Address/Domain Name - Enter the IP address or domain name of the PC whose
connection you wish to diagnose.
• Pings Packet Number - Specifies the number of Echo Request messages sent. The
default is 4.
• Ping Packet Size - Specifies the number of data bytes to be sent. The default is 64.
NOTE:
You can use ping/tracert to test numeric IP address or domain name. If pinging/tracerting the IP
address is successful, but pinging/tracerouting the domain name is not, you might have a name
resolution problem. In this case, ensure that the specified domain name
can be resolved by
using Domain Name System (DNS) queries.
- 49 -

Mercusys MW330HP Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Product type	Tabletop router
Product color	Black
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	-90 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	-78 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	-74 dBmW
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	9 V
Power source type	AC
Antenna gain level (max)	7 dBi
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK

Weight and Dimensions

Depth	127 mm
Width	192 mm
Height	36 mm
