34
SYSTEM
For the capacitance sensor (TEV models only), Diagnostics provides lid, base, and sample
temperatures, relative humidity, and the capacitive sensor user offset (Figure51). If any of
the temperature values are outside the ranges specified in the previous paragraph, refer to
Section4.5.

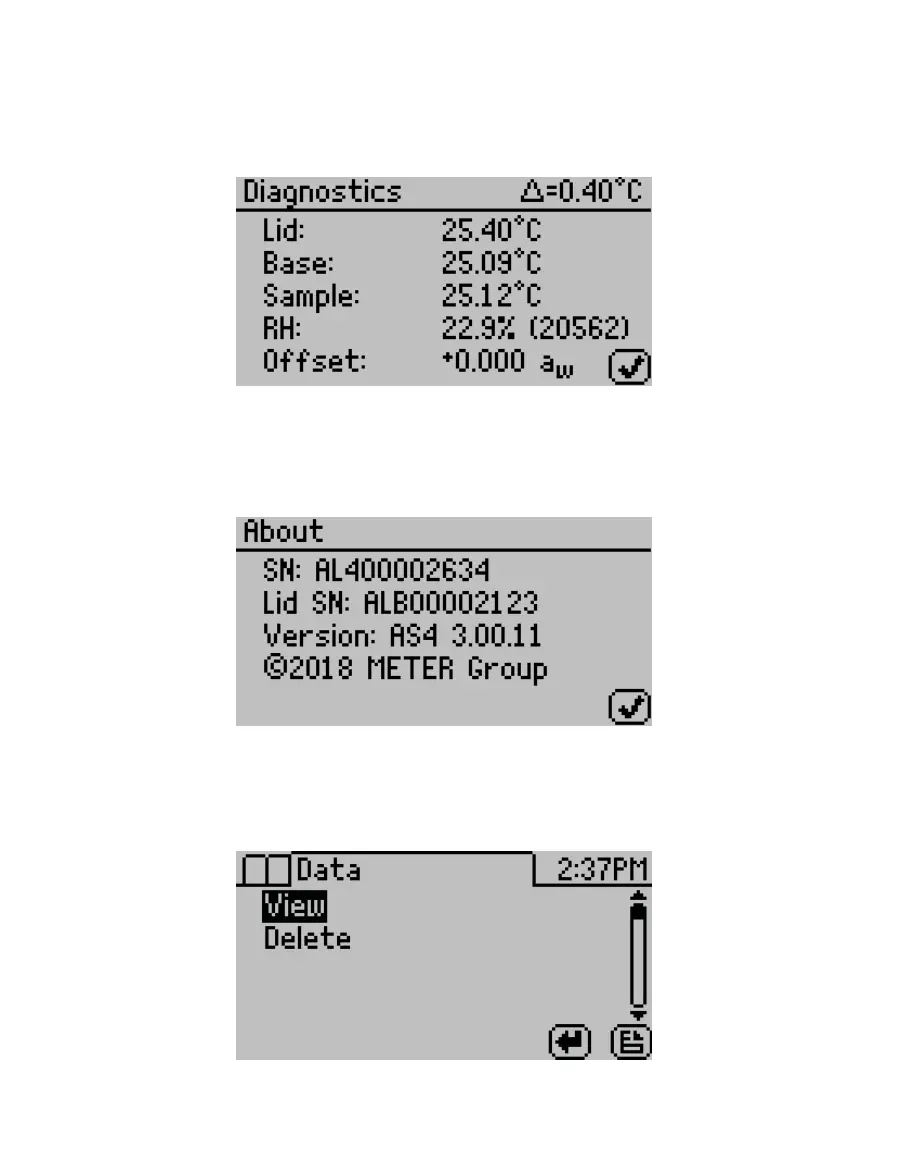

Figure51 Capacitance sensor Diagnostics screen
• %Moisture (DUO only). Select to view all isotherm models on the instrument (Section2.5).
• About. Select to view instrument information including the serial number and firmware
code version of the instrument (Figure52).
Figure52 About screen
3.2.4.3. DATA TAB
Data can be viewed or deleted from the Data tab (Figure53).
Figure53 Data tab
