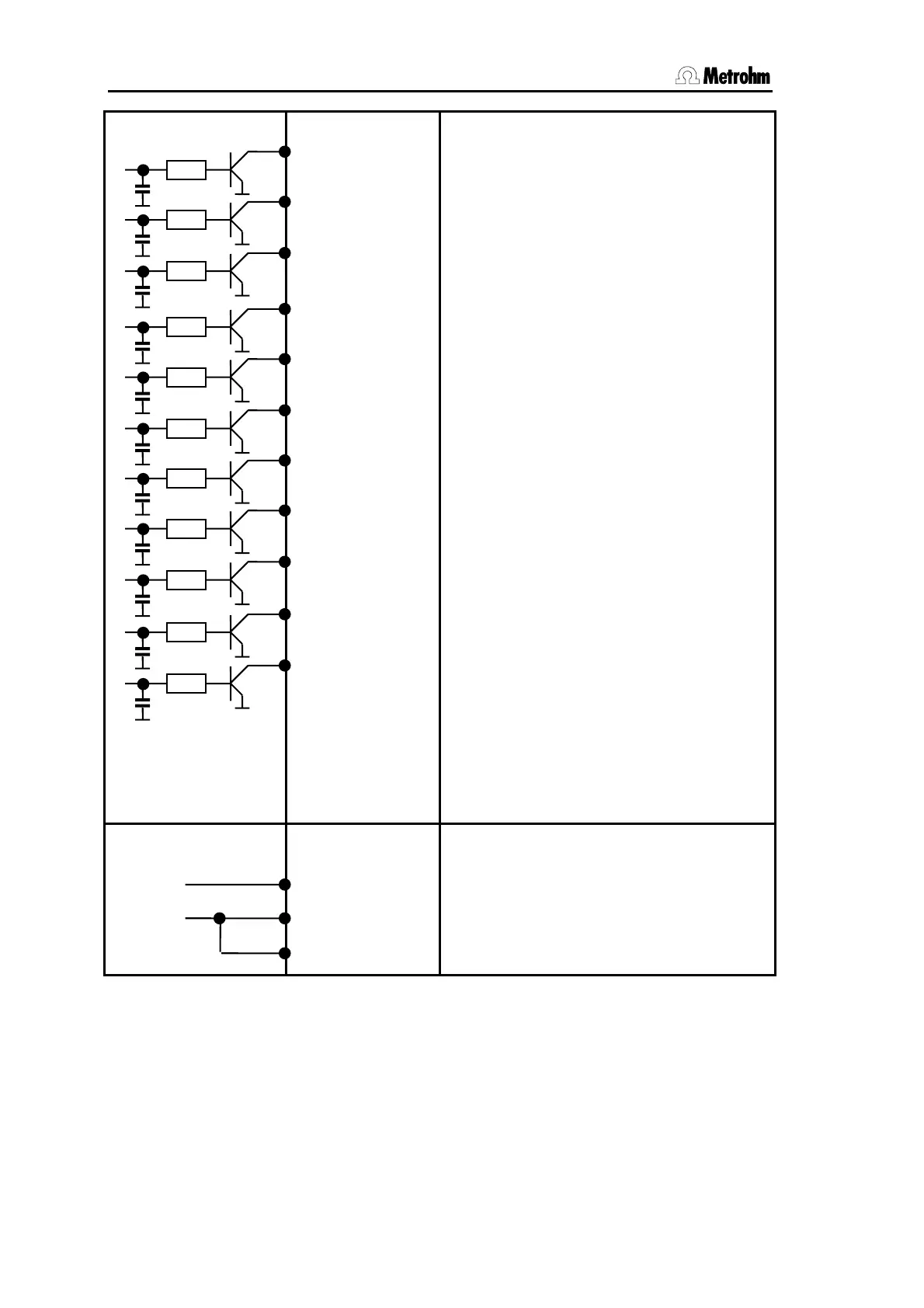

7.2 Pin assignment of the "Remote" socket
756/831 KF Coulometer, Instructions for Use
130
Outputs
pin 17 (Output 3)
pin 3 (Output 4)
pin 16 (Output 5)
pin 1 (Output 6)
pin 2 (Output 7)
pin 6 (Output 8)
pin 7 (Output 9)
pin 8 (Output 10)
pin 13 (Output 11)
pin 19 (Output 12)
pin 20 (Output 13)
End of determination
EOD
not used
Error,
active on errors
Activate pulse, see also page 132.
Pulses for recorder (t
p
=150 µs)
Remote box activated
not used
Reagent exchange
Sample size out of limits
Result out of limits (adjustable, see
page 35)
For all outputs:
V
CE0
= 40 V
I
C
= 20 mA
t
Pulse
> 100 ms
Functions see page 131.
Voltage
pin 15
pin 14
pin 25
I ≤ 200 mA
0 V: active
5 V: inactive
Ordering numbers for plug:
K.210.9004 (shell) and K.210.002
No liability whatsoever will be accepted for damage caused by im-
proper interconnection of instruments.
0 V
+5 V
